The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.

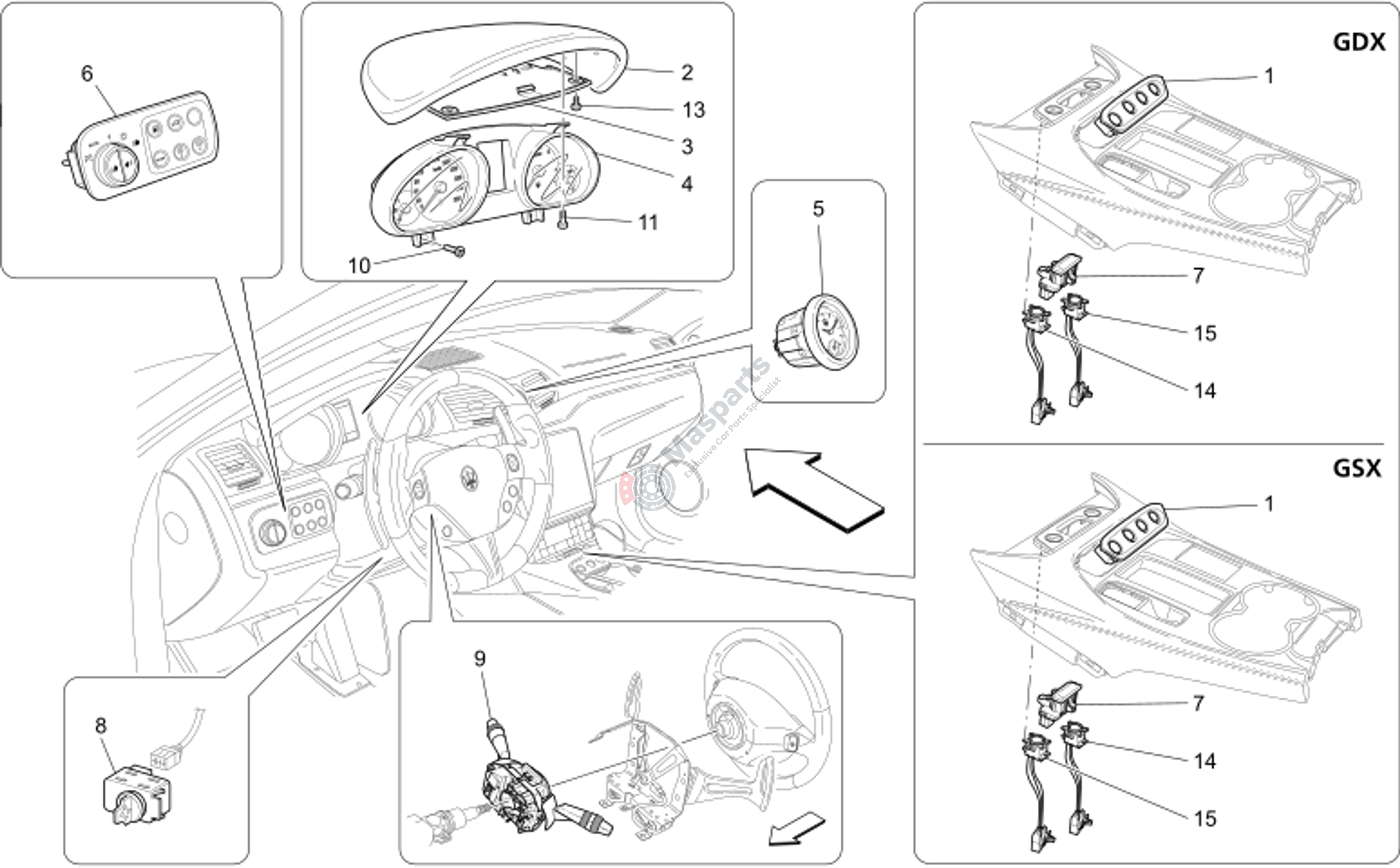

| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-980145819 | Rhd Asbm Plate My18 |
$745.09 |
|
|
| 3 | M-69921900 | Central Cover |
$76.61 |
|
|
| 4 | M-350733 | Dash Instrument |
$2,266.37 |
|
|
| 5 | M-89372400 | Analogic Clock |
$428.83 |
|
|
| 6 | M-286134 | L.H.Dashboard Switch Panel |
$511.10 |
|
|
| 7 | M-350601 | Hazard Button |
$72.20 |
|
|
| 8 | M-197645 | Steering Column Adjust. Cont |
$62.72 |
|
|
| 9 | M-281701 | Steering Column Stalk |
$1,036.70 |
|
|
| 10 | M-68176300 | Screw |
$2.11 |
|
|
| 11 | M-11568124 | Screw |
$2.97 |
|
|
| 13 | M-68176300 | Screw |
$2.11 |
|
|
| 14 | M-350580 | Unlock Button |
$77.66 |
|
|
| 15 | M-350579 | Lock Button |
$78.04 |
|
