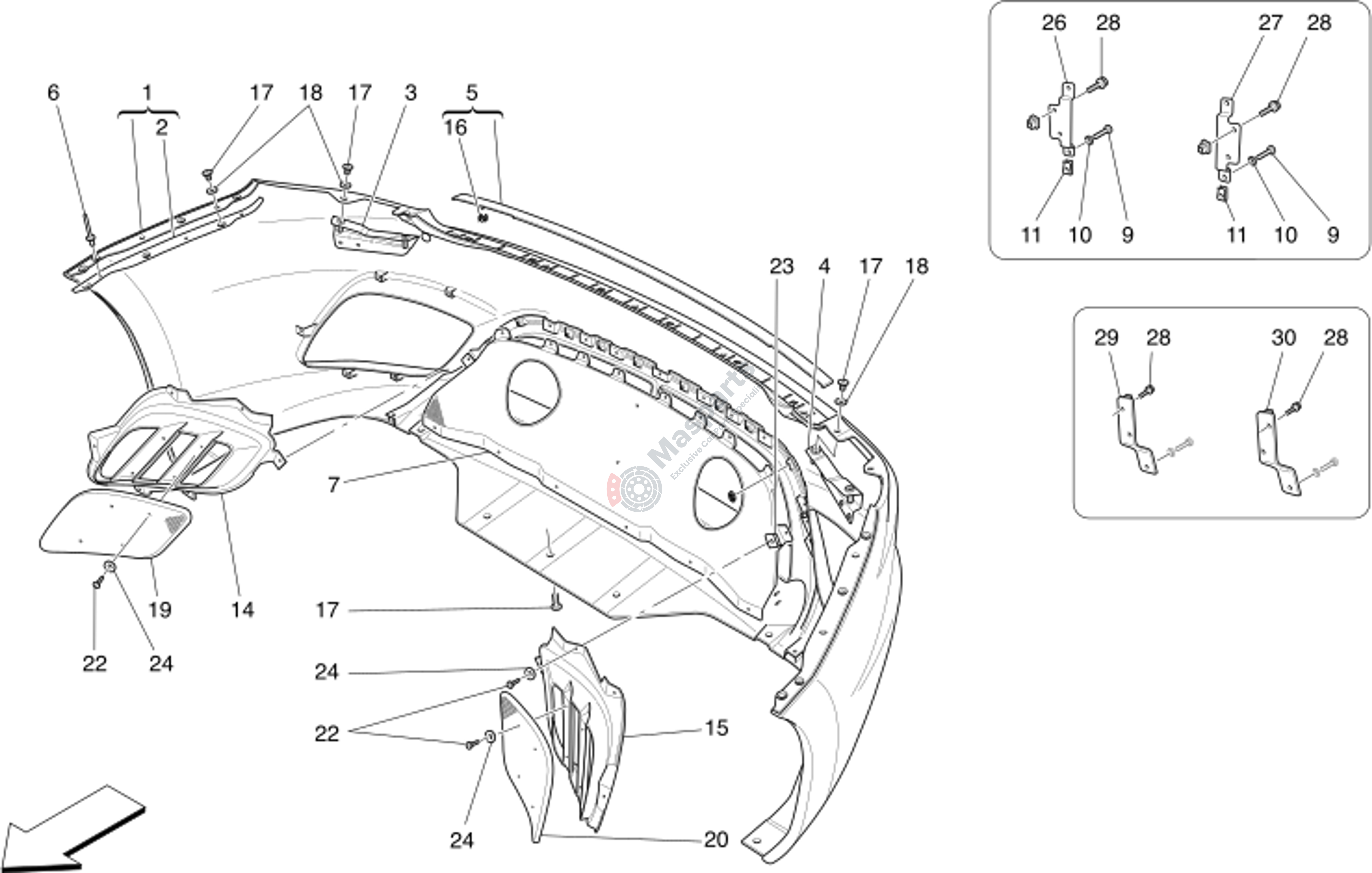

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-980145730 | Rear Bumper Mc My18 |
€1.632,62 |
|
|
| 2 | M-80063800 | Rh Bracket For Cpl Rear Bump |
€90,44 |
|
|
| 3 | M-80084300 | R.H.Bracket |
€184,00 |
|
|
| 4 | M-80084400 | L.H.Bracket |
€208,84 |
|
|
| 5 | M-980145031 | Rear Bumper Fastening Trim P |
€75,40 |
|
|
| 6 | M-14642791 | Rivet Tt D 4.8X12 |
€4,28 |
|
|
| 7 | M-89178000 | Central Grill |
€211,60 |
|
|
| 9 | M-14775211 | Screw For Steering Wheel |
€1,78 |
|
|
| 10 | M-12642801 | Washer |
€1,15 |
|
|
| 11 | M-14370571 | Bracket |
€0,95 |
|
|
| 14 | M-89178300 | R.H.Side Rear Plate Grill |
€91,80 |
|
|
| 15 | M-89178400 | L.H. Side Rear Plate Grill |
€91,80 |
|
|
| 16 | M-80269600 | Elastic Clip |
€4,38 |
|
|
| 17 | M-51810310 | Screw. |
€3,13 |
|
|
| 18 | M-312320384 | Gasket |
€0,95 |
|
|
| 19 | M-89178100 | R.H. Side Rear Grill |
€162,84 |
|
|
| 20 | M-89178200 | L.H. Side Rear Grill |
€139,84 |
|
|
| 22 | M-15688807 | Screw 35X13 |
€3,34 |
|
|
| 23 | M-14372171 | Bracket. |
€0,95 |
|
|
| 24 | M-13577701 | Split Washer D.5.15-15X1.2 |
€0,95 |
|
|
| 28 | M-15688075 | Screw |
€1,78 |
|
