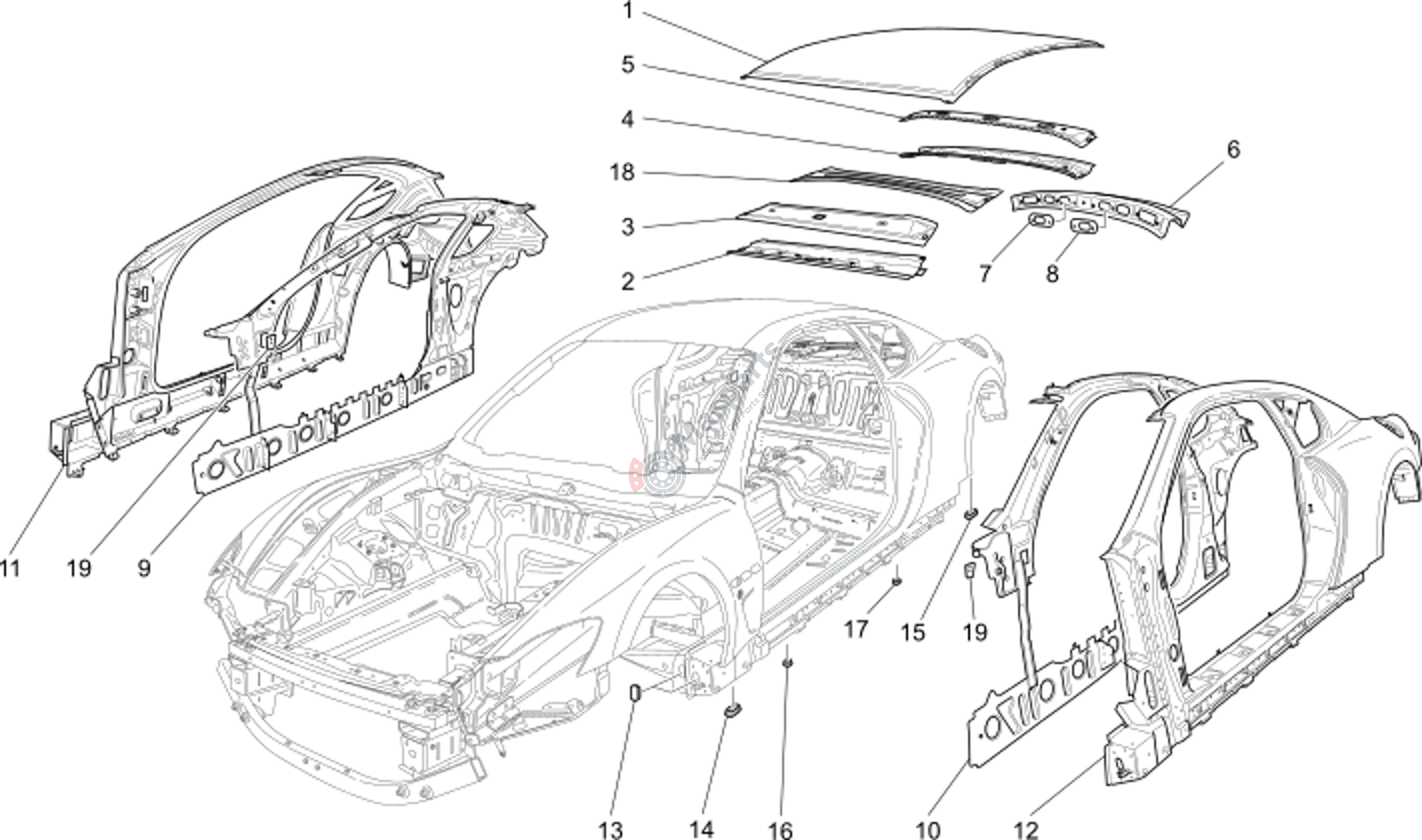

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-980145817 | Cpl Roof My18 |
€2.606,80 |
|
|
| 2 | M-87438000 | Windscreen Upper Cross Membe |
€409,40 |
|
|
| 3 | M-87438400 | Windscreen Cross Memb. Cover |
€117,76 |
|
|
| 4 | M-980145041 | Cpl Roof Rear Cross Member |
€341,70 |
|
|
| 5 | M-68244100 | Roof Rear Cross Memb.Cover |
€319,24 |
|
|
| 6 | M-69150000 | Cpl Rear Window Low.Cross-Me |
€207,40 |
|
|
| 7 | M-80004700 | R.H. Bracket |
€254,84 |
|
|
| 8 | M-80004800 | L.H. Bracket |
€254,84 |
|
|
| 10 | M-980145820 | Cpl Lh Inn. Side Panel |
€1.783,88 |
|
|
| 11 | M-68285900 | Cpl Rh Out. Side Panelcoupe |
€6.018,80 |
|
|
| 12 | M-68286000 | Cpl Lh Out. Side Panelcoupe |
€6.018,80 |
|
|
| 13 | M-67725200 | Plug |
€2,61 |
|
|
| 14 | M-80036800 | Plug |
€1,46 |
|
|
| 15 | M-80378100 | Plug |
€4,38 |
|
|
| 16 | M-80036400 | Plug |
€3,13 |
|
|
| 17 | M-13141287 | Plug |
€1,46 |
|
|
| 18 | M-87328900 | Roof Panel Center Rib Cross |
€169,28 |
|
|
| 19 | M-87431400 | Upright Front Plate Sup Int |
€32,66 |
|
