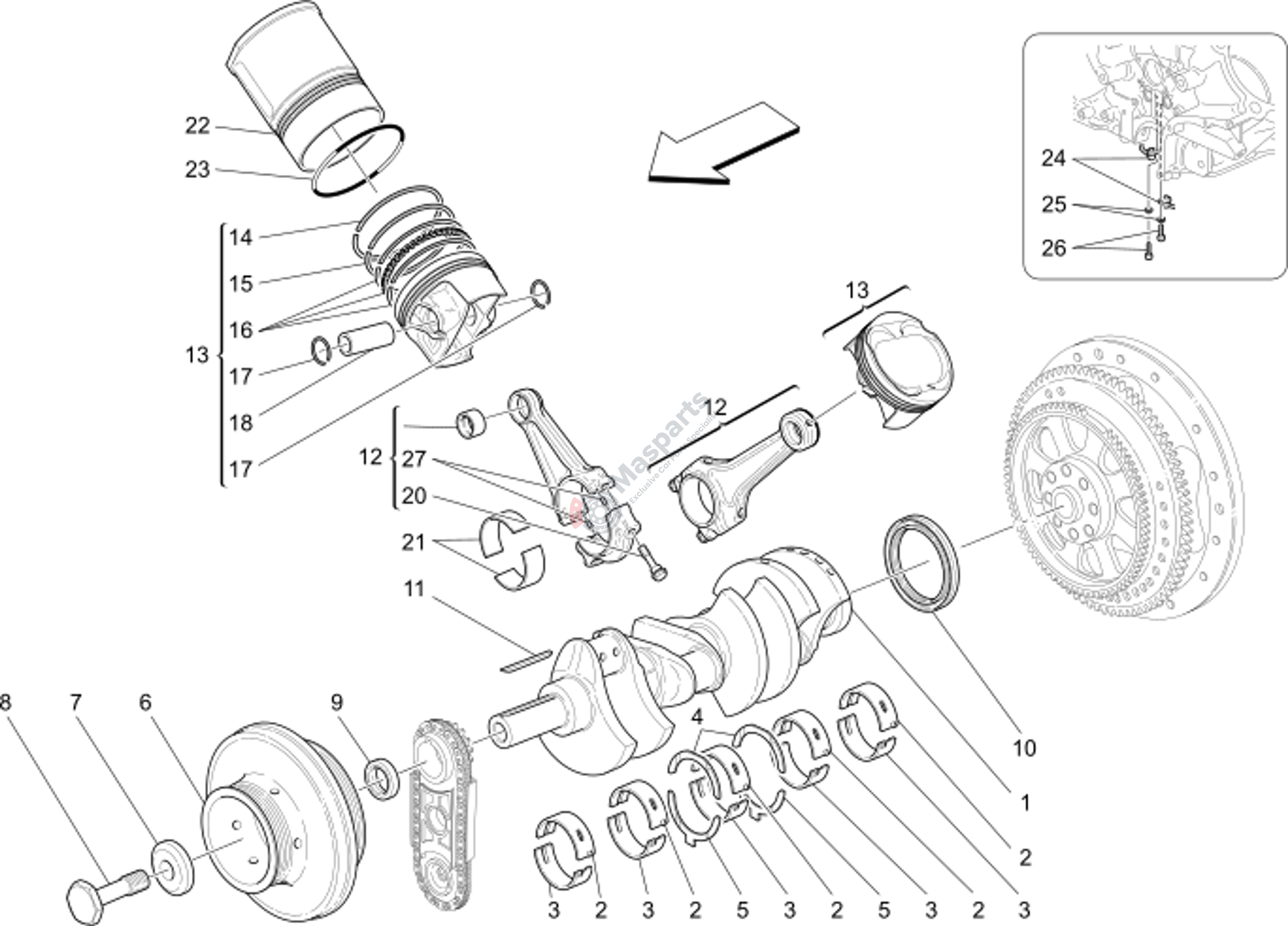

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-760882 | Cpl Crankshaft |
$2,390.29 |
|
|
| 2 | M-268865 | Upper Half Bearing |
$19.24 |
|
|
| 3 | M-268870 | Lower Half Bearing |
$17.55 |
|
|
| 4 | M-261727 | Engine Shimming |
$96.35 |
|
|
| 5 | M-261727 | Engine Shimming |
$96.35 |
|
|
| 6 | M-257518 | Torsion Damper |
$790.56 |
|
|
| 7 | M-263683 | Damper Fastening Washer |
$15.86 |
|
|
| 8 | M-196216 | Screw Fast.Tors.Damper To Cr |
$79.95 |
|
|
| 9 | M-188717 | Gasket For Rot.Shaft D.48-65 |
$35.94 |
|
|
| 10 | M-200323 | Sealing Ring D.80-100X10 |
$43.48 |
|
|
| 11 | M-186201 | Crankshaft Tab 6X6X70 |
$3.10 |
|
|
| 12 | M-268163 | Cpl Connecting Rod And Cap |
$169.48 |
|
|
| 13 | M-284372 | Rh Bank Cpl Engine Piston |
$1,013.91 |
|
|
| 14 | M-240882 | Sealing Ring |
$49.72 |
|
|
| 15 | M-206412 | 2Nd Race Torsion Sealing Rin |
$142.08 |
|
|
| 16 | M-212820 | Oil Scraper Ring |
$97.00 |
|
|
| 17 | M-178890 | Stop Ring D. 20 |
$9.18 |
|
|
| 18 | M-198260 | Pin |
$65.17 |
|
|
| 20 | M-218371 | Connecting Rod Tightening Sc |
$42.16 |
|
|
| 21 | M-261720 | Connecting Rod Half-Bearing |
$25.03 |
|
|
| 22 | M-243339 | Steel Cylinder Liner D=94 |
$707.22 |
|
|
| 23 | M-186251 | O-Ring D.95X3.2 |
$5.77 |
|
|
| 24 | M-236813 | Piston Cooling Nozzle Assemb |
$18.13 |
|
|
| 25 | M-11181474 | Tapered Rubber Washerd |
$1.53 |
|
|
| 26 | M-14302921 | Socket Head Screw M 4X 10 |
$1.53 |
|
|
| 27 | M-224608 | Centring Pin For Connecting |
$3.67 |
|
