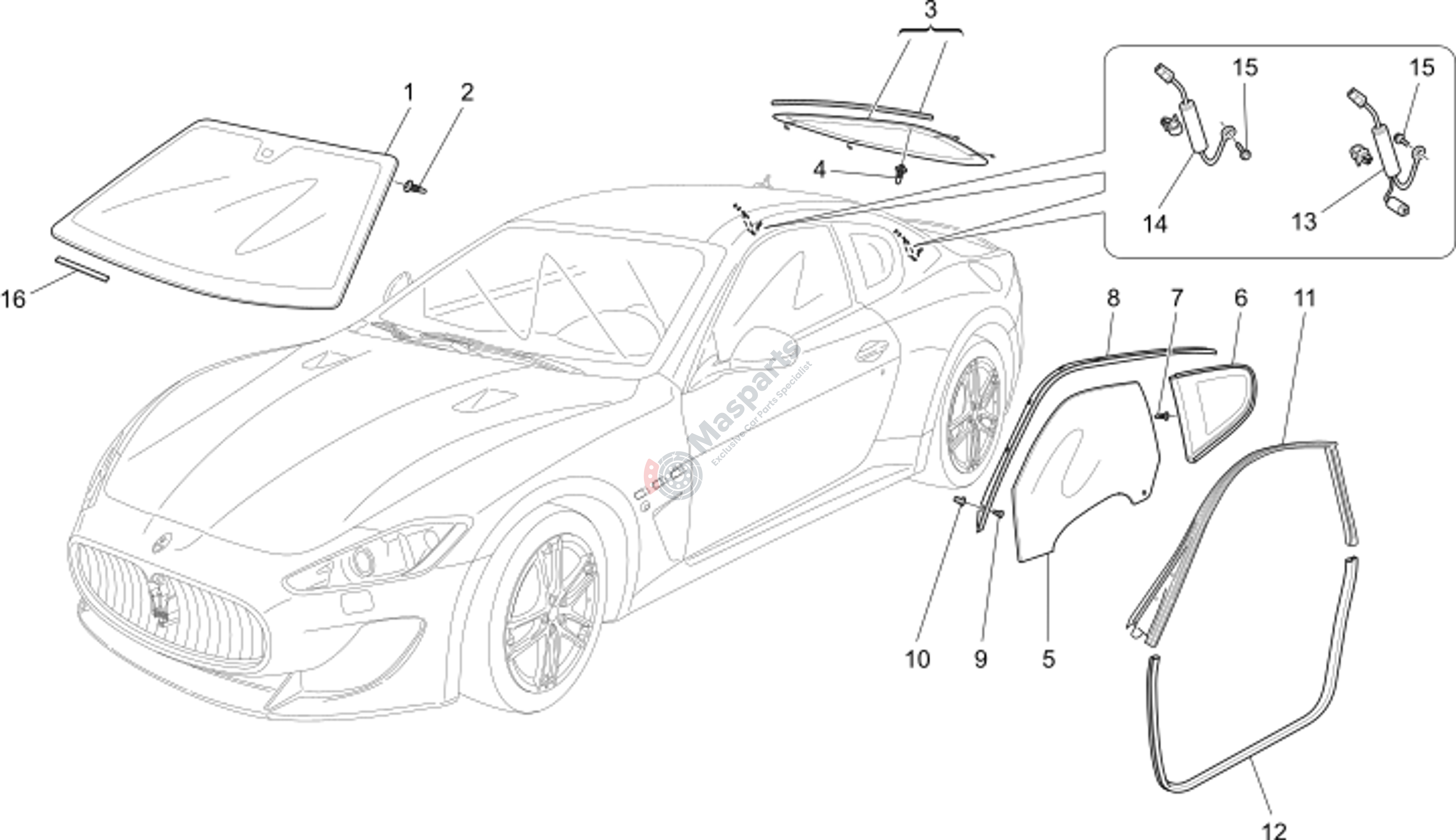

Diagram image not available
The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-68240500 | Windshield Glass |
€1.473,78 |
|
|
| 2 | M-83075900 | Pin |
€1,88 |
|
|
| 3 | M-68881600 | Rear Window Glass |
€912,63 |
|
|
| 4 | M-83075900 | Pin |
€1,88 |
|
|
| 5 | M-68363200 | Front Rh Door Window Glass |
€234,03 |
|
|
| 6 | M-80088200 | R.H.Complete Rear Side Glass |
€401,94 |
|
|
| 7 | M-82139700 | Pin |
€1,88 |
|
|
| 8 | M-82078400 | R.H. Moulding |
€108,24 |
|
|
| 9 | M-16083501 | Screw For Interior Windsh |
€1,46 |
|
|
| 10 | M-14201980 | Block |
€1,25 |
|
|
| 11 | M-80089100 | R.H. Door Upper Gasket |
€438,84 |
|
|
| 12 | M-80090000 | Door Lower Gasket |
€139,84 |
|
|
| 13 | M-231160 | Rear-Window Filter |
€31,13 |
|
|
| 14 | M-231161 | Rear-Window Filter |
€31,13 |
|
|
| 15 | M-10711227 | Screw |
€2,09 |
|
|
| 16 | M-80964500 | Gasket |
€4,38 |
|
