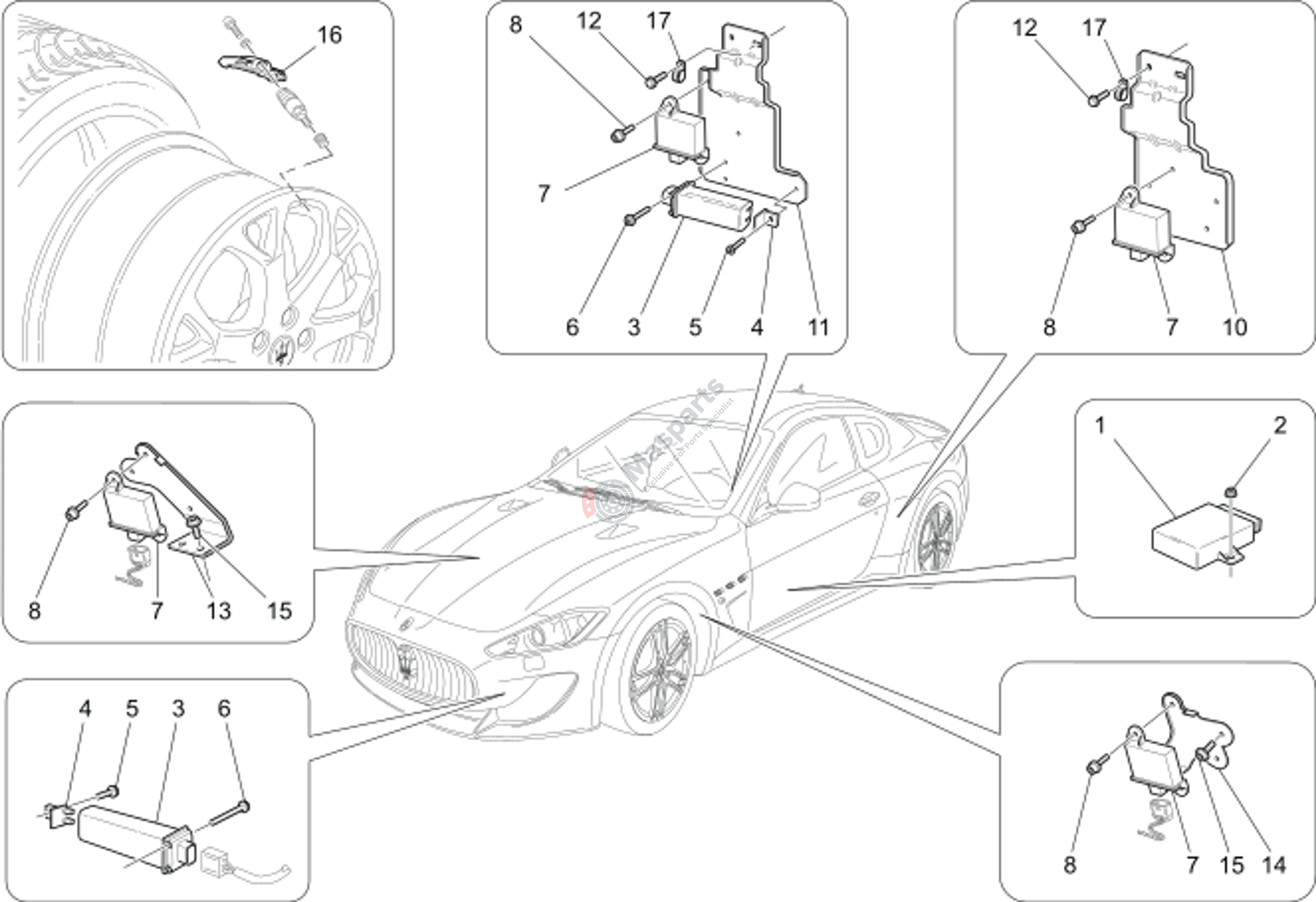

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-319623 | Tyres Pressure Control Unit |
$435.09 |
|
|
| 2 | M-14059211 | Nut |
$1.50 |
|
|
| 3 | M-239463 | Antenna Tpms |
$160.40 |
|
|
| 4 | M-195646 | Clip. |
$4.64 |
|
|
| 5 | M-13272111 | Screw |
$1.74 |
|
|
| 6 | M-13272911 | Screw. |
$2.11 |
|
|
| 7 | M-237966 | Tigger Tpms |
$105.26 |
|
|
| 8 | M-11625724 | Screw. |
$2.97 |
|
|
| 10 | M-249945 | L.H.Rear Bracket |
$55.21 |
|
|
| 11 | M-266648 | Rear Tpms Sensor Bracket |
$75.19 |
|
|
| 12 | M-11625624 | Screw. |
$2.50 |
|
|
| 13 | M-249946 | R.H.Front Bracket |
$55.98 |
|
|
| 14 | M-249947 | L.H.Front Bracket |
$55.98 |
|
|
| 15 | M-11566224 | Screw |
$2.13 |
|
|
| 16 | M-282189 | Tyre Pressure Monitoring Sys |
$144.36 |
|
|
| 17 | M-69590100 | Clip |
$7.42 |
|
