Diagram image not available

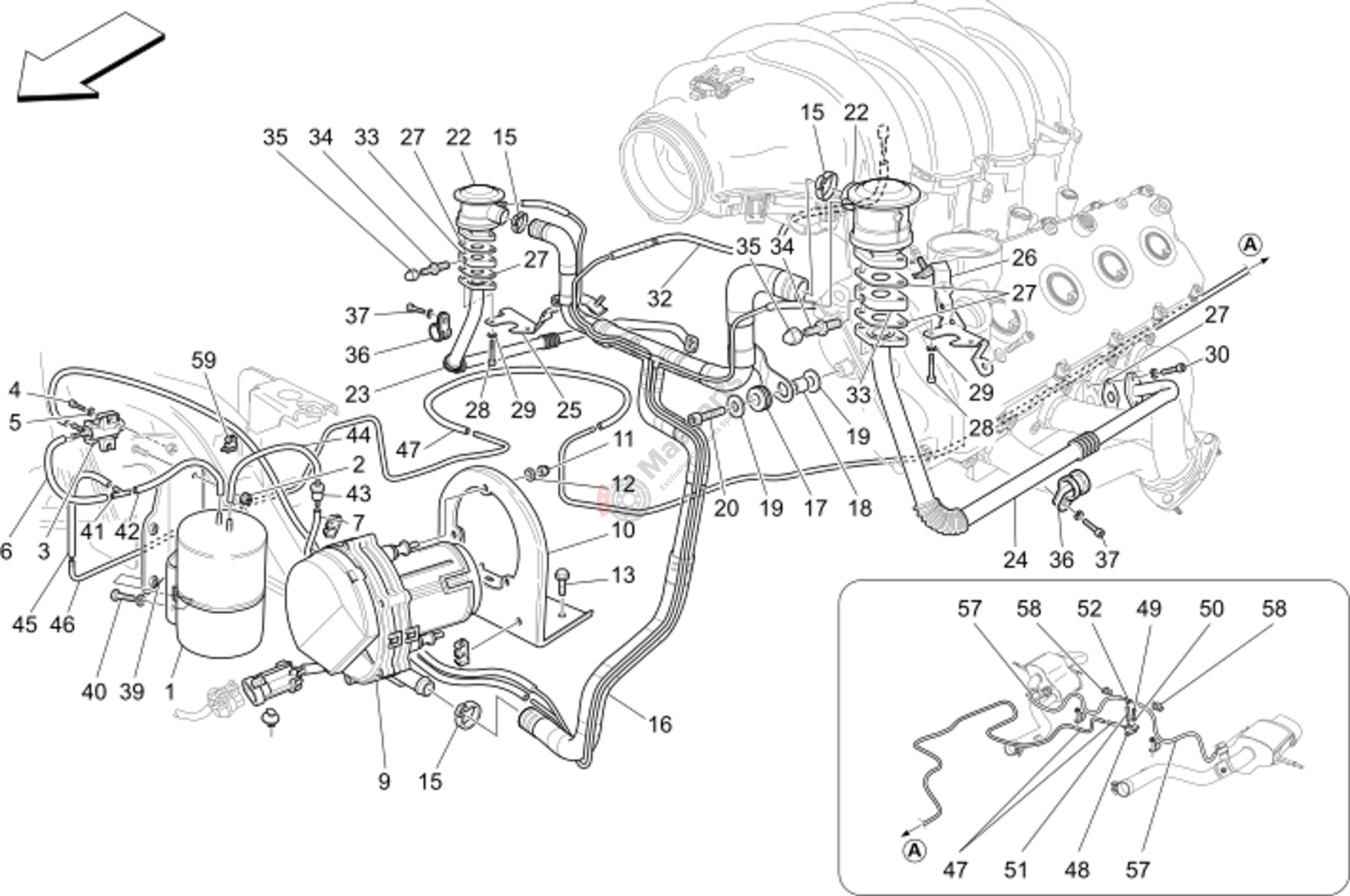

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-240380 | Vacuum Tank |
€101,15 |
|
|
| 2 | M-14059211 | Nut |
€1,25 |
|
|
| 3 | M-315769 | On/Off Solenoid Valve |
€55,08 |
|
|
| 4 | M-14304624 | Screw |
€0,83 |
|
|
| 5 | M-12601174 | Washer |
€1,29 |
|
|
| 6 | M-234410 | Sleeve Diam.3.5X8 Lenght. 18 |
€1,46 |
|
|
| 7 | M-251359 | Sleeve Diam.3.5X8 Lenght.=35 |
€3,35 |
|
|
| 9 | M-181197 | Secondary Air Pump |
€473,45 |
|
|
| 10 | M-215965 | Air Pump Fixing Bracket |
€16,47 |
|
|
| 11 | M-102948 | Nut |
€1,46 |
|
|
| 12 | M-12601274 | Washer |
€1,15 |
|
|
| 13 | M-16285924 | Screw |
€1,46 |
|
|
| 15 | M-226356 | Clamp |
€1,46 |
|
|
| 16 | M-241777 | Pipe From Air Pump To Valve |
€162,35 |
|
|
| 17 | M-219456 | Anti-Vibration Support |
€1,96 |
|
|
| 18 | M-219457 | Spacer |
€21,62 |
|
|
| 19 | M-12647727 | Washer |
€1,88 |
|
|
| 20 | M-231618 | Screw |
€0,95 |
|
|
| 22 | M-171175 | Secondary Air Valve |
€141,95 |
|
|
| 23 | M-233374 | R.H. Air Valve Pipe -Valid F |
€122,40 |
|
|
| 24 | M-226275 | L.H. Air Valve Pipe |
€300,05 |
|
|
| 25 | M-265569 | Rh Ari Valve Fixing Brackets |
€1.324,80 |
|
|
| 26 | M-265568 | Lh Air Valve Fixing Bracket |
€1.324,80 |
|
|
| 27 | M-186781 | Gasket For Secondary Air |
€4,38 |
|
|
| 28 | M-231621 | Screw |
€0,95 |
|
|
| 29 | M-127494 | Washer |
€1,15 |
|
|
| 30 | M-231616 | Screw |
€1,78 |
|
|
| 32 | M-230835 | Rubber Hose With Protective |
€17,85 |
|
|
| 36 | M-10441590 | Bracket With Sheath |
€0,95 |
|
|
| 37 | M-233600 | Screw |
€1,99 |
|
|
| 39 | M-236872 | Bracket |
€35,79 |
|
|
| 40 | M-11730424 | Screw |
€2,09 |
|
|
| 41 | M-257691 | 3-Wat T Connector |
€1,45 |
|
|
| 42 | M-234403 | Sleeve Diam.3.5X8 Lenght 70 |
€5,19 |
|
|
| 43 | M-253896 | Non-Return Valve |
€27,46 |
|
|
| 44 | M-165608 | Rubber Hose For Blow By S |
€3,77 |
|
|
| 45 | M-234410 | Sleeve Diam.3.5X8 Lenght. 18 |
€1,46 |
|
|
| 46 | M-235338 | Rigid Pipe |
€52,02 |
|
|
| 47 | M-247860 | Under Body Vacuum Pipe |
€87,55 |
|
|
| 48 | M-315769 | On/Off Solenoid Valve |
€55,08 |
|
|
| 49 | M-14304124 | Screw |
€1,46 |
|
|
| 50 | M-12601174 | Washer |
€1,29 |
|
|
| 51 | M-235640 | Sleeve Diam.3.5X8 Lenght. 35 |
€0,69 |
|
|
| 52 | M-257691 | 3-Wat T Connector |
€1,45 |
|
|
| 57 | M-277197 | Rh Rubber Hose D3-11L=770 |
€42,25 |
|
|
| 58 | M-187713 | Clip |
€4,28 |
|
|
| 59 | M-209928 | Spring |
€2,61 |
|
