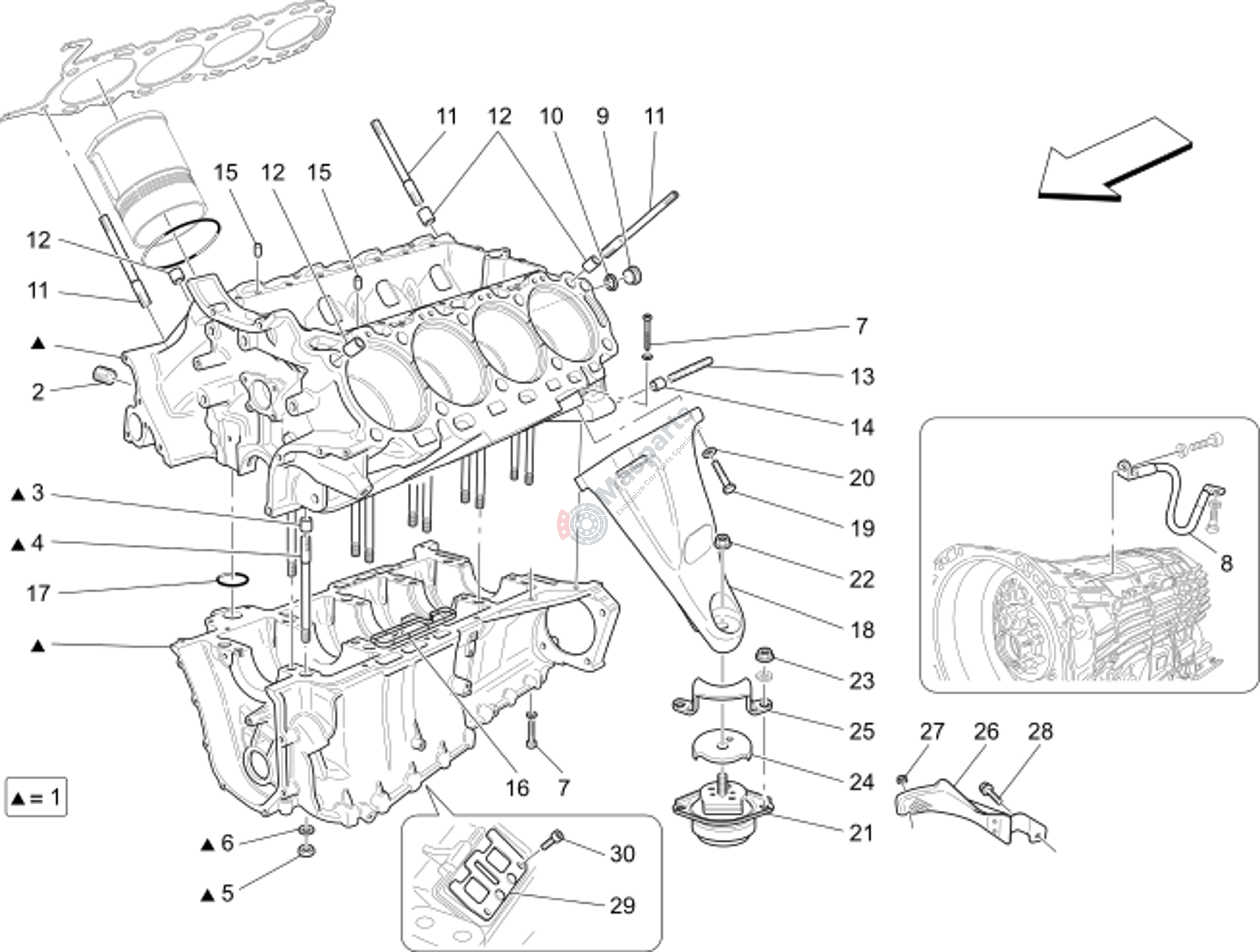

Diagram image not available
The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-281173 | Crankcase/Lower Crank.Assemb |
€3.358,46 |
|
|
| 2 | M-14325340 | Tapered Threaded Plug 22X1.5 |
€6,26 |
|
|
| 3 | M-176421 | Centering Dowel |
€7,54 |
|
|
| 4 | M-219801 | Stud M12X1.75 Stem M10X1 |
€12,42 |
|
|
| 5 | M-133988 | Hex Nut M10X10.25.25X8 |
€1,46 |
|
|
| 6 | M-178348 | Machined Washer D.10.2-20X2. |
€3,13 |
|
|
| 7 | M-231623 | Socket Head Screw With Washe |
€0,95 |
|
|
| 8 | M-268886 | Engine Ground-Frame Ground B |
€62,87 |
|
|
| 9 | M-10304511 | Threaded Plug |
€2,61 |
|
|
| 10 | M-10263460 | Gasket 22- 28X 1.5 |
€1,46 |
|
|
| 11 | M-217968 | Stud M 14(X2) Stem M 11X1 |
€13,52 |
|
|
| 12 | M-185360 | Centring Dowel D.16X15 |
€5,43 |
|
|
| 13 | M-13546434 | Stud M10X1.25X20 Stem |
€13,52 |
|
|
| 14 | M-100052 | Centering Dowel |
€4,88 |
|
|
| 15 | M-177727 | Centering Dowel For Intake |
€4,88 |
|
|
| 16 | M-236143 | Gasket |
€8,65 |
|
|
| 17 | M-140071 | O-Ring D. 29.87- 8X 100 |
€1,46 |
|
|
| 18 | M-222316 | Right-Hand Engine Bracket |
€120,70 |
|
|
| 19 | M-11306934 | Bol For Motor Mount Assem |
€3,34 |
|
|
| 20 | M-11190574 | Tapered Rubber Washer 10.5-2 |
€1,46 |
|
|
| 21 | M-226572 | Engine Support Flexible Pad |
€355,12 |
|
|
| 22 | M-177018 | Nut For Rear Differential |
€2,20 |
|
|
| 23 | M-177764 | Nut |
€1,46 |
|
|
| 24 | M-196590 | Upper Engine Pad Protection |
€6,81 |
|
|
| 25 | M-198530 | Bracket. |
€114,08 |
|
|
| 26 | M-227525 | R.H. Heat Shield |
€109,48 |
|
|
| 27 | M-14040614 | Nut |
€1,46 |
|
|
| 28 | M-13833011 | Tebd Screw M5X10 |
€1,78 |
|
|
| 29 | M-255138 | Blow By Valve Assembly |
€69,87 |
|
|
| 30 | M-14303123 | Socket Head Screw M4X14 |
€1,46 |
|
