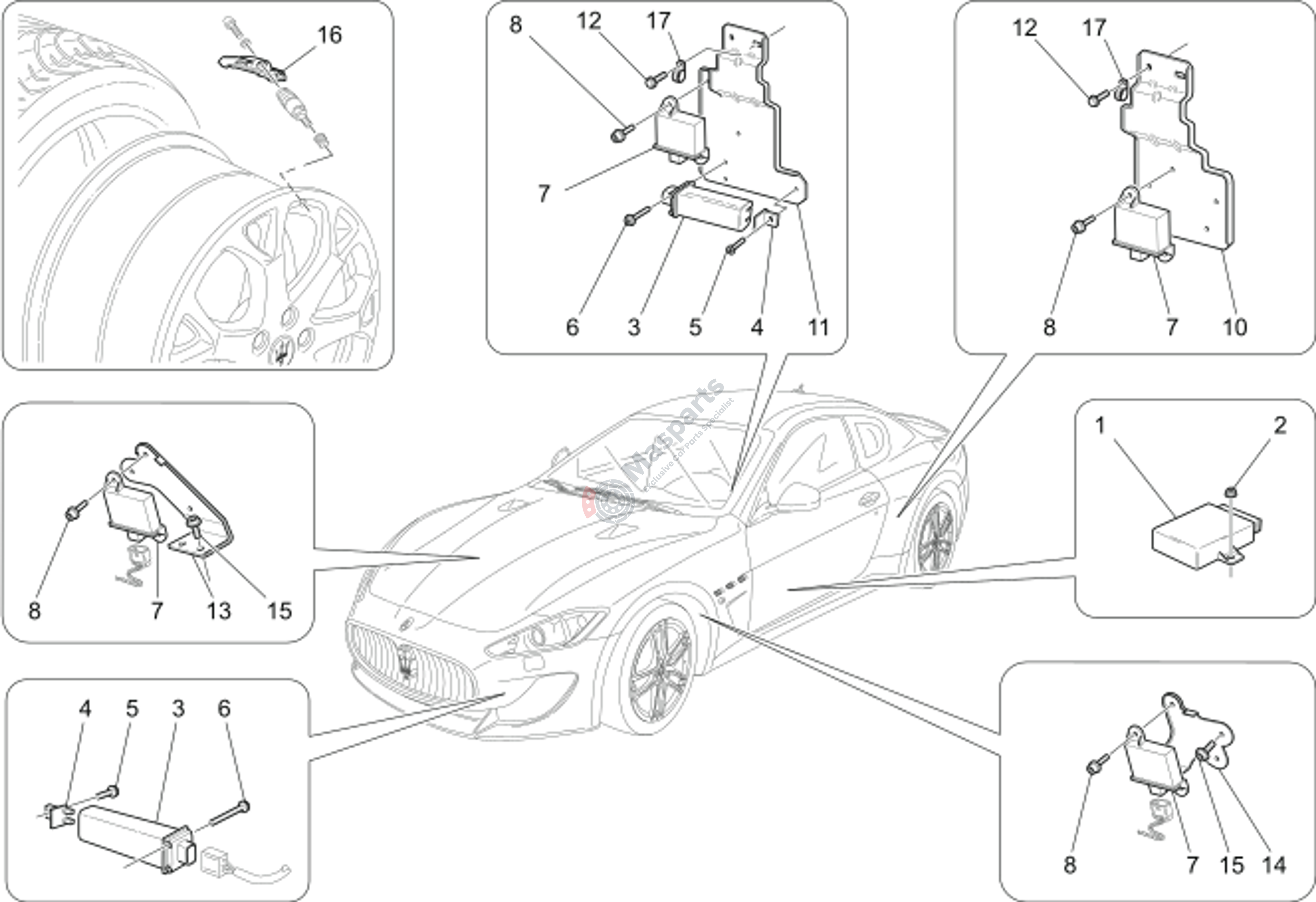

Diagram image not available
The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-319623 | Tyres Pressure Control Unit |
€366,36 |
|
|
| 2 | M-14059211 | Nut |
€1,25 |
|
|
| 3 | M-239463 | Antenna Tpms |
€152,22 |
|
|
| 4 | M-195646 | Clip. |
€3,86 |
|
|
| 5 | M-13272111 | Screw |
€1,46 |
|
|
| 6 | M-13272911 | Screw. |
€1,78 |
|
|
| 7 | M-237966 | Tigger Tpms |
€88,58 |
|
|
| 8 | M-11625724 | Screw. |
€2,50 |
|
|
| 10 | M-249945 | L.H.Rear Bracket |
€52,62 |
|
|
| 11 | M-266648 | Rear Tpms Sensor Bracket |
€63,39 |
|
|
| 12 | M-11625624 | Screw. |
€2,09 |
|
|
| 13 | M-249946 | R.H.Front Bracket |
€47,20 |
|
|
| 14 | M-249947 | L.H.Front Bracket |
€47,20 |
|
|
| 15 | M-11566224 | Screw |
€1,78 |
|
|
| 16 | M-282189 | Tyre Pressure Monitoring Sys |
€121,26 |
|
|
| 17 | M-69590100 | Clip |
€6,26 |
|
