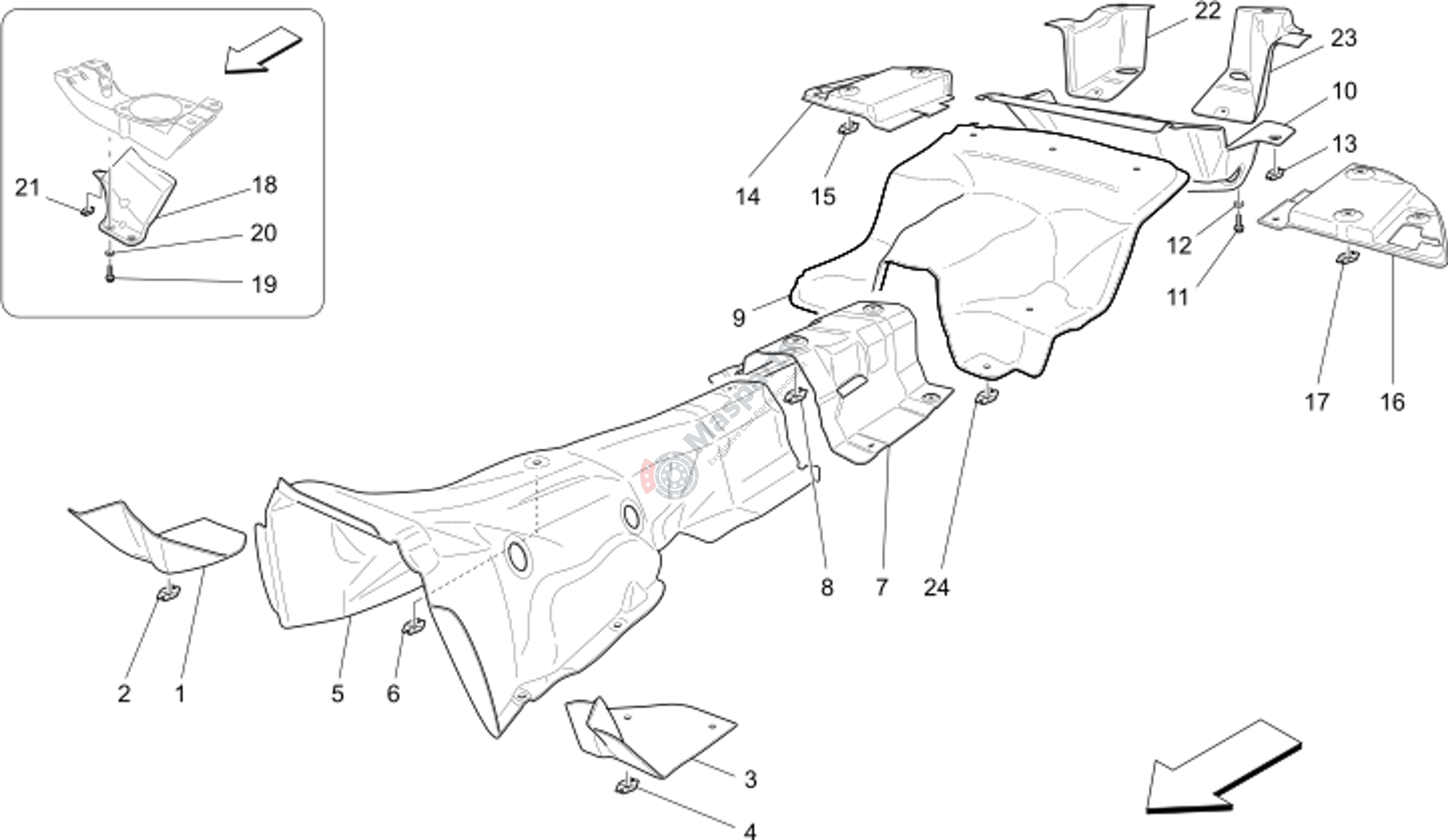

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-68948900 | R.H. Heat Shield |
$138.35 |
|
|
| 2 | M-67315400 | Washer |
$1.74 |
|
|
| 3 | M-68949000 | L.H. Heat Shield |
$105.21 |
|
|
| 4 | M-67315400 | Washer |
$1.74 |
|
|
| 5 | M-68949200 | Front Heat Shield For Tunnel |
$278.84 |
|
|
| 6 | M-67315400 | Washer |
$1.74 |
|
|
| 7 | M-80103200 | Rear Heat Shield For Tunnel |
$69.20 |
|
|
| 8 | M-67315400 | Washer |
$1.74 |
|
|
| 9 | M-82653500 | Rear Heat Shield. |
$196.26 |
|
|
| 10 | M-83536800 | Spare Wheel Bay Heat Guard |
$706.74 |
|
|
| 11 | M-67909700 | Screw |
$2.97 |
|
|
| 12 | M-12647678 | Washer |
$2.23 |
|
|
| 13 | M-67315400 | Washer |
$1.74 |
|
|
| 14 | M-80058100 | R.H. Silencer Heat Shield |
$86.77 |
|
|
| 15 | M-67315400 | Washer |
$1.74 |
|
|
| 16 | M-80058200 | L.H. Silencer Heat Shield |
$98.45 |
|
|
| 17 | M-67315400 | Washer |
$1.74 |
|
|
| 18 | M-69733300 | Shield |
$41.91 |
|
|
| 19 | M-10902124 | Screw |
$1.74 |
|
|
| 20 | M-11193274 | Washer. |
$1.37 |
|
|
| 21 | M-67315400 | Washer |
$1.74 |
|
|
| 22 | M-83536600 | Rh Spare Wheel Bay Heat Guar |
$400.02 |
|
|
| 23 | M-83536700 | Lh Spare Wheel Bay Heat Guar |
$400.02 |
|
|
| 24 | M-67315400 | Washer |
$1.74 |
|
