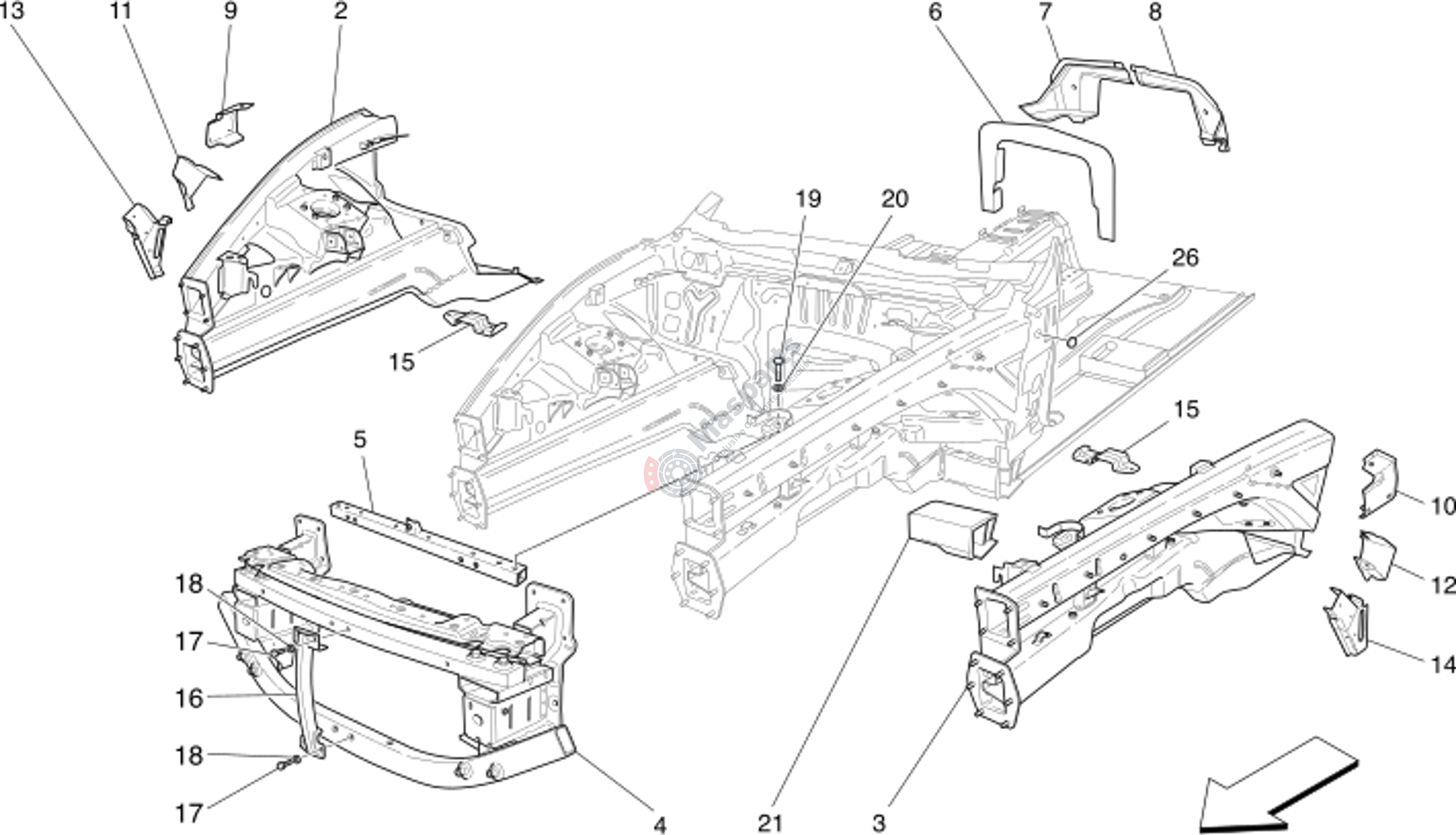

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 2 | M-980145042 | Cpl Front Rh Control Rod |
$3,380.59 |
|
|
| 3 | M-980145043 | Cpl Front Lh Control Rod |
$4,711.83 |
|
|
| 4 | M-80001900 | Front Bumper Cross Member |
$1,604.62 |
|
|
| 5 | M-67275300 | Cpl Dome Bar Tube |
$193.15 |
|
|
| 6 | M-66560000 | Int.Wall Centr.Cr.Memb. Meta |
$73.78 |
|
|
| 7 | M-67300800 | Rh Int. Fire Guard Cross Mem |
$100.04 |
|
|
| 8 | M-67300900 | Lh Int. Fire Guard Cross Mem |
$91.72 |
|
|
| 9 | M-80700500 | R.H.Reinforcement |
$262.48 |
|
|
| 10 | M-80700600 | L.H.Reinforcement |
$231.78 |
|
|
| 11 | M-67214400 | Rh Closure Edge |
$19.77 |
|
|
| 12 | M-67214500 | Lh Closure Edge |
$27.83 |
|
|
| 13 | M-68269900 | Cpl Rh Reinforcement Bracket |
$324.84 |
|
|
| 14 | M-68270000 | Cpl Lh Reinforcement Bracket |
$287.32 |
|
|
| 15 | M-67989300 | Cpl Fr.Bracket For Fast.Pres |
$31.09 |
|
|
| 16 | M-80423900 | Bracket |
$162.44 |
|
|
| 17 | M-16043524 | Hex Head Screw M 8X22 |
$0.75 |
|
|
| 18 | M-14496524 | Washer |
$1.74 |
|
|
| 19 | M-11306934 | Bol For Motor Mount Assem |
$3.97 |
|
|
| 20 | M-11190574 | Tapered Rubber Washer 10.5-2 |
$1.74 |
|
|
| 21 | M-66828600 | R.H.Lower Bracket |
$149.02 |
|
|
| 26 | M-14507787 | Plug |
$1.13 |
|
