Diagram image not available

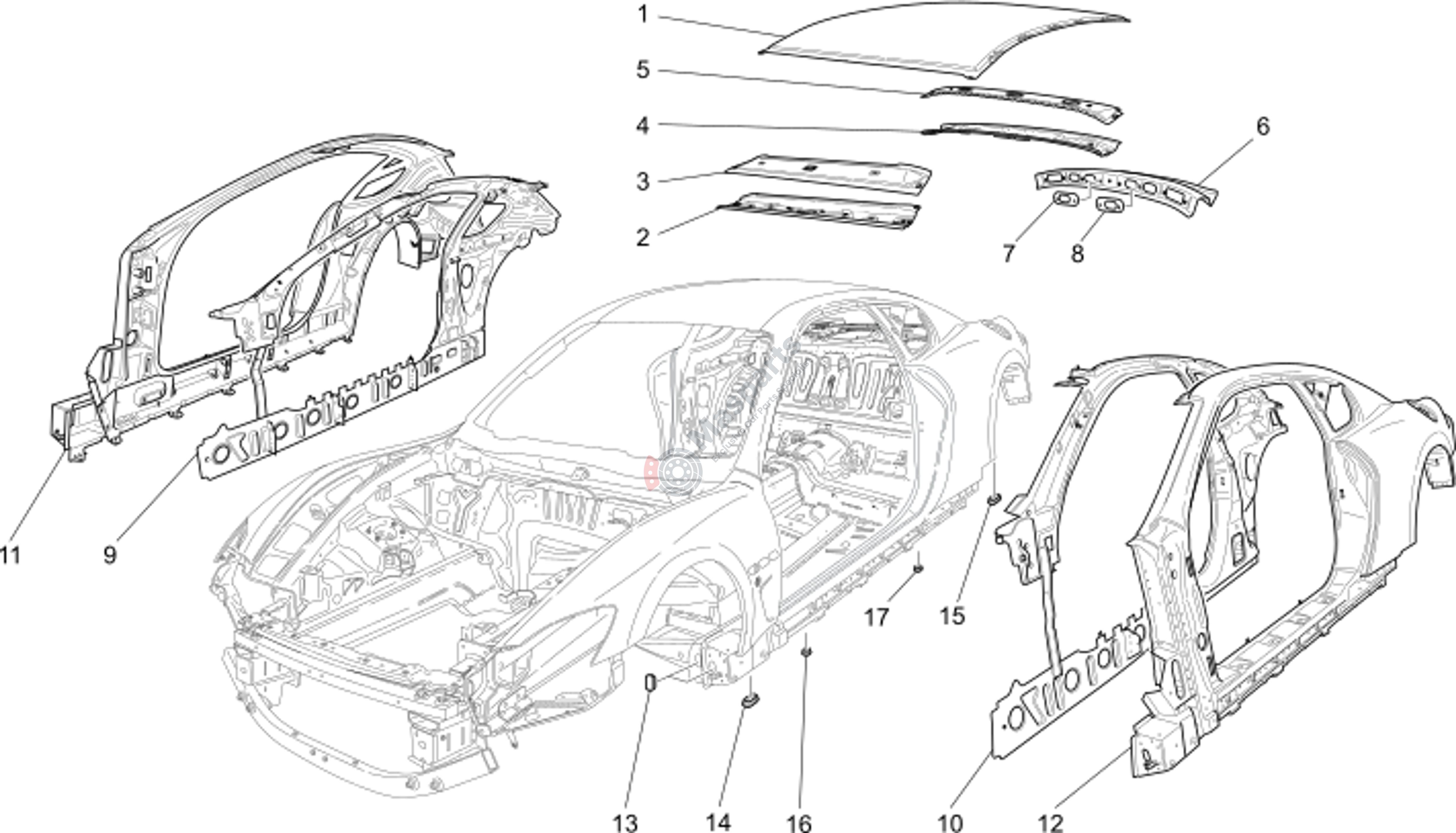

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-980145039 | Cpl Roof |
$2,366.70 |
|
|
| 2 | M-68243100 | Windscreen Upper Cross Membe |
$216.08 |
|
|
| 3 | M-68244400 | Windscreen Cross Memb.Cover |
$332.74 |
|
|
| 4 | M-980145041 | Cpl Roof Rear Cross Member |
$355.55 |
|
|
| 5 | M-68244100 | Roof Rear Cross Memb.Cover |
$332.74 |
|
|
| 6 | M-69150000 | Cpl Rear Window Low.Cross-Me |
$216.08 |
|
|
| 7 | M-80004700 | R.H. Bracket |
$265.77 |
|
|
| 8 | M-80004800 | L.H. Bracket |
$265.77 |
|
|
| 10 | M-87434500 | Cpl Lh Inn. Side Panel Coupä |
$979.08 |
|
|
| 11 | M-68285900 | Cpl Rh Out. Side Panelcoupe |
$7,249.56 |
|
|
| 12 | M-68286000 | Cpl Lh Out. Side Panelcoupe |
$6,411.92 |
|
|
| 13 | M-67725200 | Plug |
$3.07 |
|
|
| 14 | M-80036800 | Plug |
$1.74 |
|
|
| 15 | M-80378100 | Plug |
$4.56 |
|
|
| 16 | M-80036400 | Plug |
$3.68 |
|
|
| 17 | M-13141287 | Plug |
$1.72 |
|
