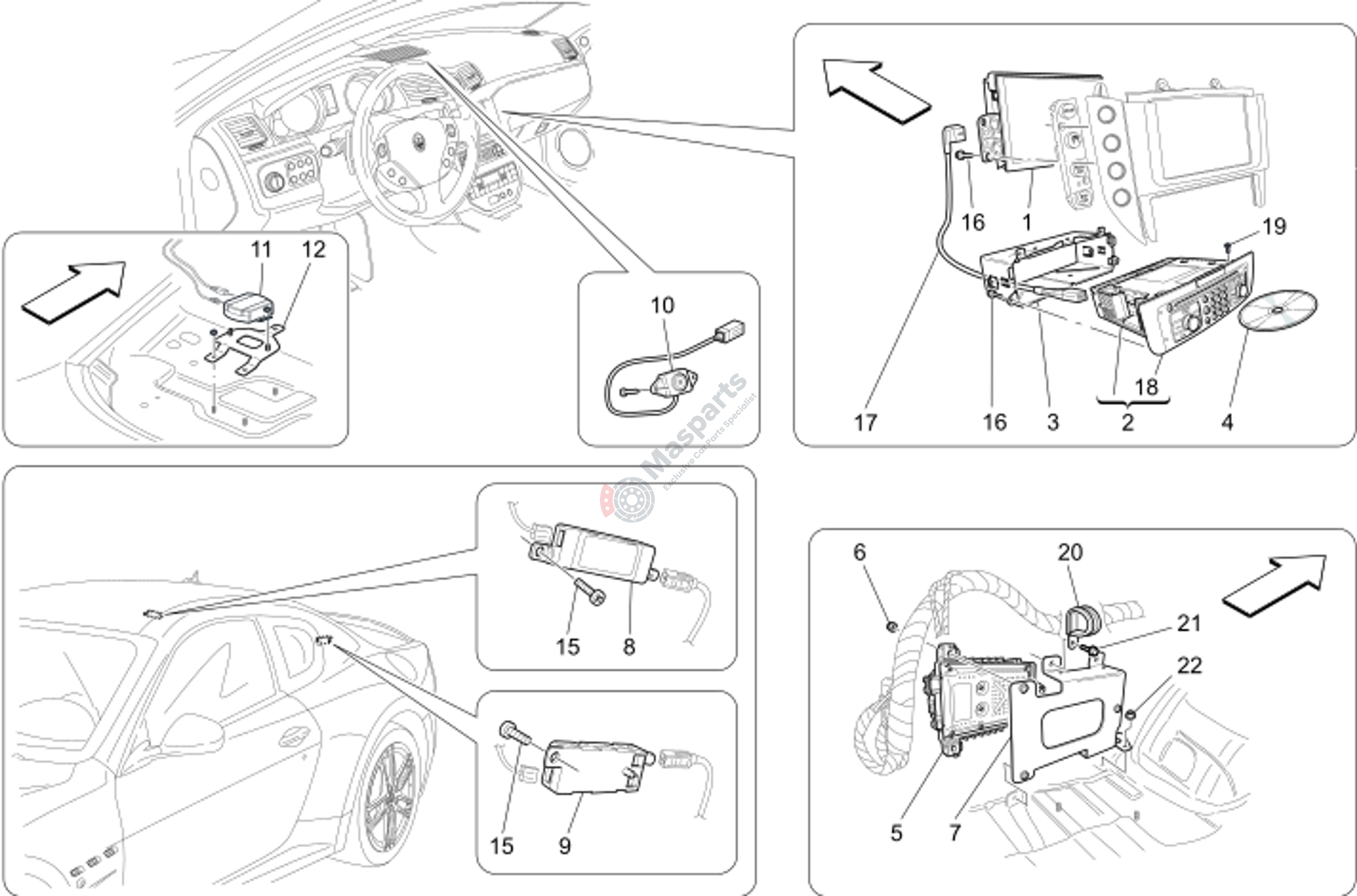

Diagram image not available
The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-226830 | Display Nit M145 |
€1.314,08 |
|
|
| 2 | M-341829 | Silver Box Nit M145 8.1 (Usa |
€5.335,44 |
|
|
| 3 | M-69892800 | Bin |
€111,32 |
|
|
| 4 | M-327077 | Cpl.Navigation Cd Me Market |
€426,88 |
|
|
| 5 | M-230520 | Amplifier -Bose Premium Syst |
€1.163,58 |
|
|
| 6 | M-14084211 | Nut |
€1,46 |
|
|
| 7 | M-229263 | Bracket -Bose Premium System |
€41,77 |
|
|
| 8 | M-231150 | Radio Antenna Amplifier -Fm2 |
€56,50 |
|
|
| 9 | M-231149 | Radio Antenna Amplifier -Am/ |
€56,33 |
|
|
| 10 | M-192522 | Audiopilot Microphone. |
€59,68 |
|
|
| 11 | M-298832 | Sirius Module |
€290,72 |
|
|
| 12 | M-248695 | Bracket |
€18,86 |
|
|
| 15 | M-13273824 | Screw For Bracket On Glov |
€1,46 |
|
|
| 16 | M-14303021 | Screw For Cable Lockdown |
€1,46 |
|
|
| 18 | M-980145421 | Front Panel 145 Hw8.0/8.1 Us |
€1.130,04 |
|
|
| 19 | M-980145423 | Screw |
€1,78 |
|
|
| 20 | M-10441790 | Bracket With Sheath |
€0,95 |
|
|
| 21 | M-11620724 | Screw. |
€2,09 |
|
|
| 22 | M-14059211 | Nut |
€1,25 |
|
