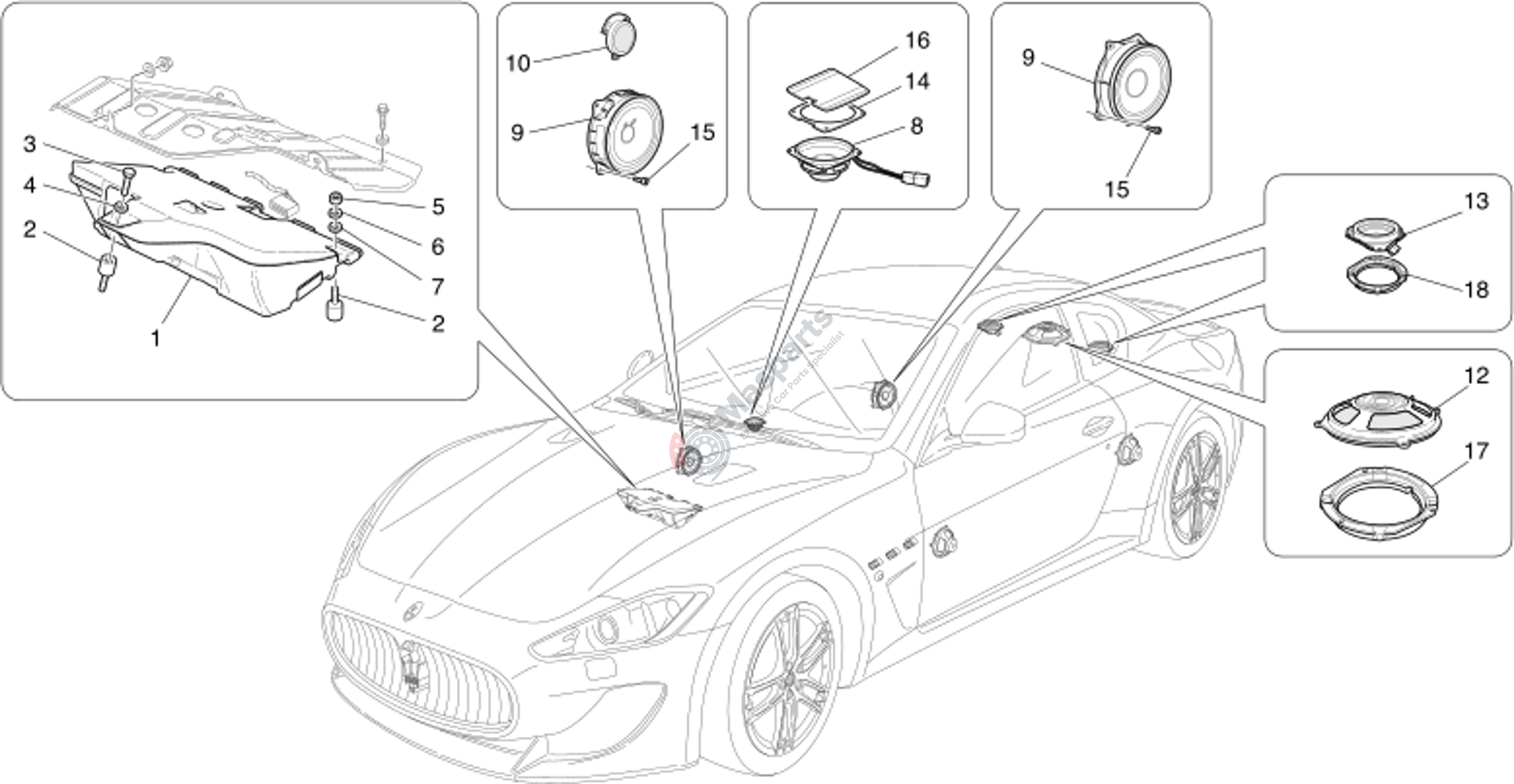

Diagram image not available
The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-67071100 | Complete Bass Box Bose. |
$932.33 |
|
|
| 2 | M-188296 | Rubber |
$8.95 |
|
|
| 3 | M-10902011 | Screw. |
$1.74 |
|
|
| 4 | M-12647624 | Washer For Fixed Tension |
$1.61 |
|
|
| 5 | M-14039614 | Nut |
$1.29 |
|
|
| 6 | M-12643724 | Washer For Bracket On Hea |
$1.37 |
|
|
| 7 | M-12640624 | Washer |
$1.77 |
|
|
| 8 | M-191365 | Loud Speaker. |
$136.34 |
|
|
| 9 | M-50500509 | Loud Speaker Woofer -Bose Pr |
$160.40 |
|
|
| 10 | M-191370 | Rear Loud Speaker Tweeter. |
$75.59 |
|
|
| 12 | M-197503 | Loud Speaker Woofer. |
$625.56 |
|
|
| 13 | M-227270 | Loud Speaker Twiddler -Bose |
$83.96 |
|
|
| 14 | M-68700700 | Gasket |
$10.26 |
|
|
| 15 | M-11566524 | Screw |
$2.48 |
|
|
| 16 | M-80729500 | Cloth |
$3.74 |
|
|
| 17 | M-89369700 | Adapter Subwoofer |
$71.00 |
|
|
| 18 | M-89369800 | Adapter Tweeter Base |
$21.82 |
|
