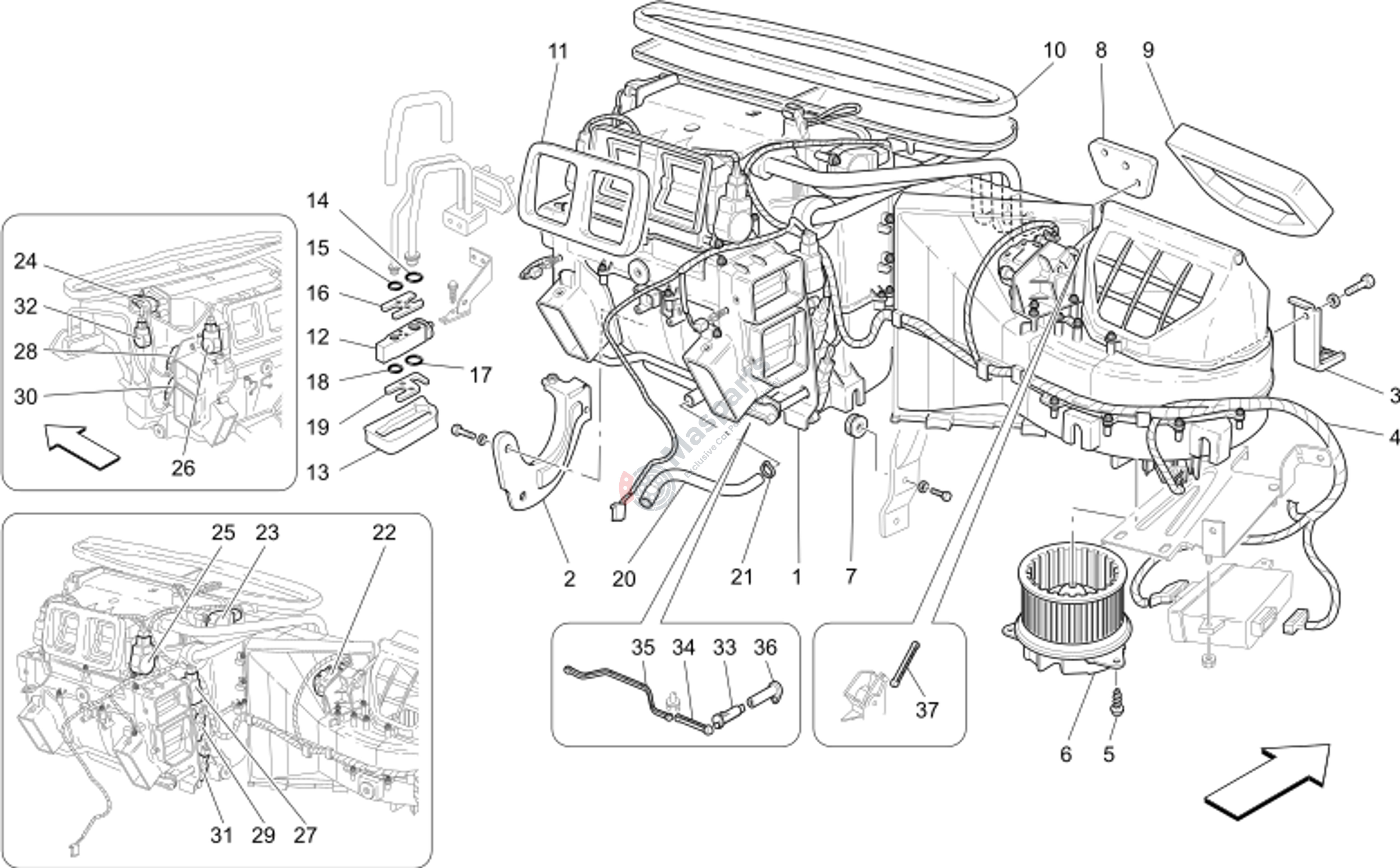

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-85235700 | Complete Air Condition Set |
$2,927.12 |
|
|
| 2 | M-67265400 | A.C.Support Bracket. |
$22.12 |
|
|
| 3 | M-67265100 | Rear Bracket. |
$19.09 |
|
|
| 4 | M-83558400 | Front Hvac Wiring |
$452.96 |
|
|
| 5 | M-68391900 | Screw. |
$2.94 |
|
|
| 6 | M-85256500 | Lhd Brushless Fan |
$797.88 |
|
|
| 7 | M-68389800 | Female Pin Rubber Washer |
$12.95 |
|
|
| 8 | M-68392400 | Water Pipe Sink. |
$17.75 |
|
|
| 9 | M-69394400 | Inlet Sink |
$26.43 |
|
|
| 10 | M-68390000 | Sink For Defrost Ducting. |
$49.72 |
|
|
| 11 | M-68391800 | Front Sink. |
$15.98 |
|
|
| 12 | M-68391100 | Expansion Valve |
$110.70 |
|
|
| 13 | M-68389600 | Die-Cut Rubber Housing For V |
$15.98 |
|
|
| 14 | M-68391300 | O-Ring 069508 |
$3.70 |
|
|
| 15 | M-66309300 | O-Ring 069505 |
$18.45 |
|
|
| 16 | M-64281500 | Flange For Exp. Valve Unions |
$53.97 |
|
|
| 17 | M-66309500 | O-Ring 069507 |
$18.45 |
|
|
| 18 | M-66309400 | O-Ring 069506 |
$18.45 |
|
|
| 19 | M-67588300 | Lower Flange. |
$24.81 |
|
|
| 20 | M-68392500 | Sleeve. |
$25.32 |
|
|
| 21 | M-68392600 | Clamp. |
$9.39 |
|
|
| 22 | M-85469400 | Hvac System Actuator (Recirc |
$164.58 |
|
|
| 23 | M-85469800 | Hvac System Actuator (Defros |
$164.58 |
|
|
| 26 | M-85470000 | Hvac System Actuator (Front |
$173.39 |
|
|
| 27 | M-85469700 | Hvac System Actuator (Side V |
$152.82 |
|
|
| 28 | M-85470300 | Hvac System Actuator (Side V |
$201.80 |
|
|
| 29 | M-85469600 | Hvac System Actuator (Floor) |
$173.39 |
|
|
| 31 | M-85469500 | Hvac System Actuator (Rear) |
$203.76 |
|
|
| 33 | M-81235000 | Rear Actuator Pin |
$48.55 |
|
|
| 34 | M-81235100 | Rear Actuator Rod |
$13.88 |
|
|
| 35 | M-81235200 | Rear Door Rod |
$13.88 |
|
|
| 36 | M-81562000 | Rear Door Flange |
$44.78 |
|
|
| 37 | M-81235300 | Rec Actuator Rod |
$12.12 |
|
