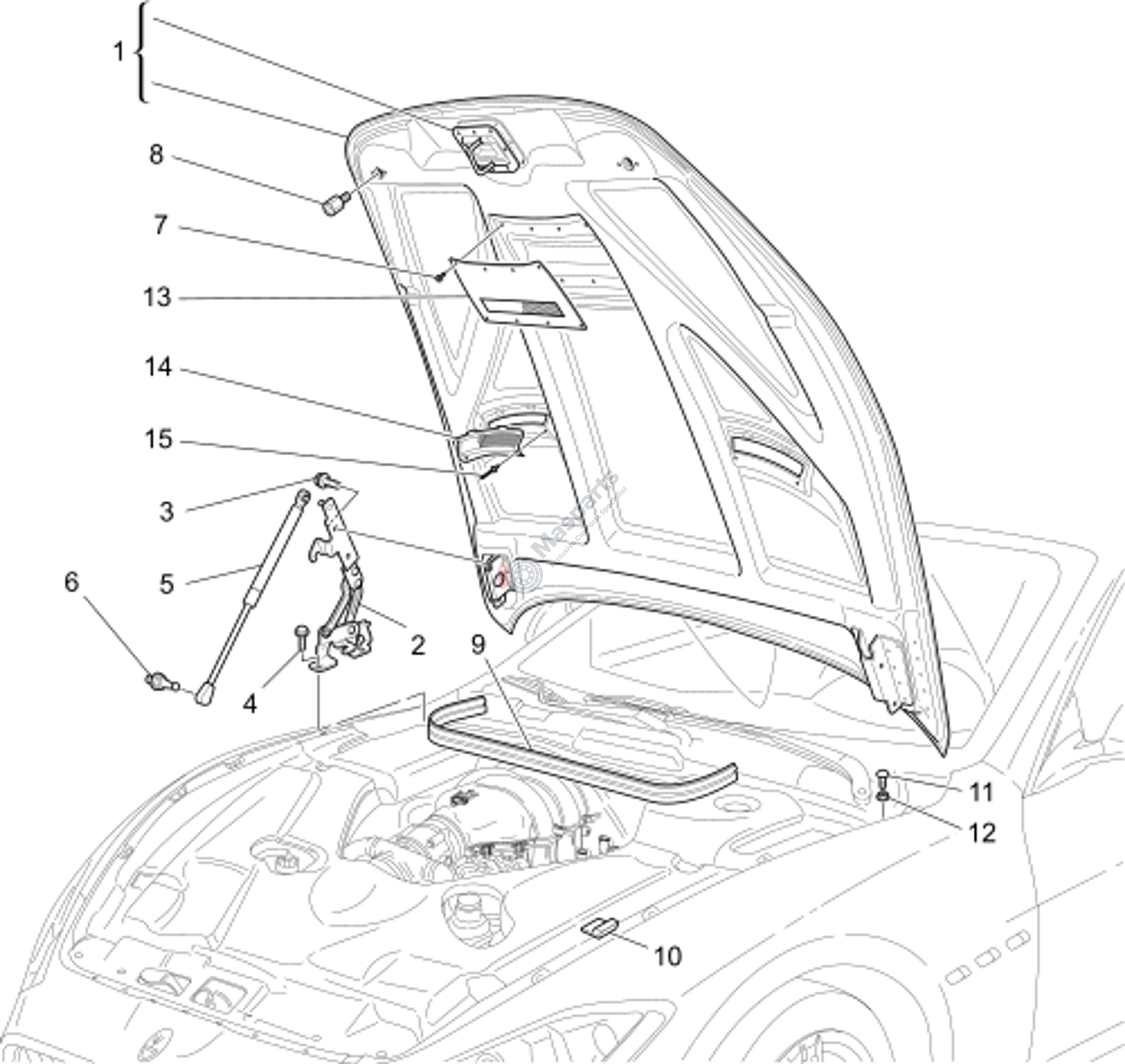

Diagram image not available
The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-980145491 | Primer Carbon Look Bonnet |
$21,434.70 |
|
|
| 2 | M-81082600 | Front Lid Rh Hinge |
$113.45 |
|
|
| 3 | M-16287024 | Screw. |
$2.45 |
|
|
| 4 | M-16287024 | Screw. |
$2.45 |
|
|
| 5 | M-68250000 | Gas Spring |
$50.01 |
|
|
| 6 | M-67999300 | Pin |
$6.15 |
|
|
| 7 | M-64460500 | Screw For Center Console |
$3.92 |
|
|
| 8 | M-65546600 | Small Block. |
$1.11 |
|
|
| 9 | M-80085600 | Gasket |
$2,258.44 |
|
|
| 10 | M-80559500 | Pad |
$32.88 |
|
|
| 11 | M-81598100 | Pad |
$14.46 |
|
|
| 12 | M-13046111 | Nut |
$1.53 |
|
|
| 13 | M-85568700 | Central Grill |
$1,440.05 |
|
|
| 14 | M-85569100 | Rh Grill |
$192.99 |
|
|
| 15 | M-85677900 | Rivet |
$30.63 |
|
