Diagram image not available

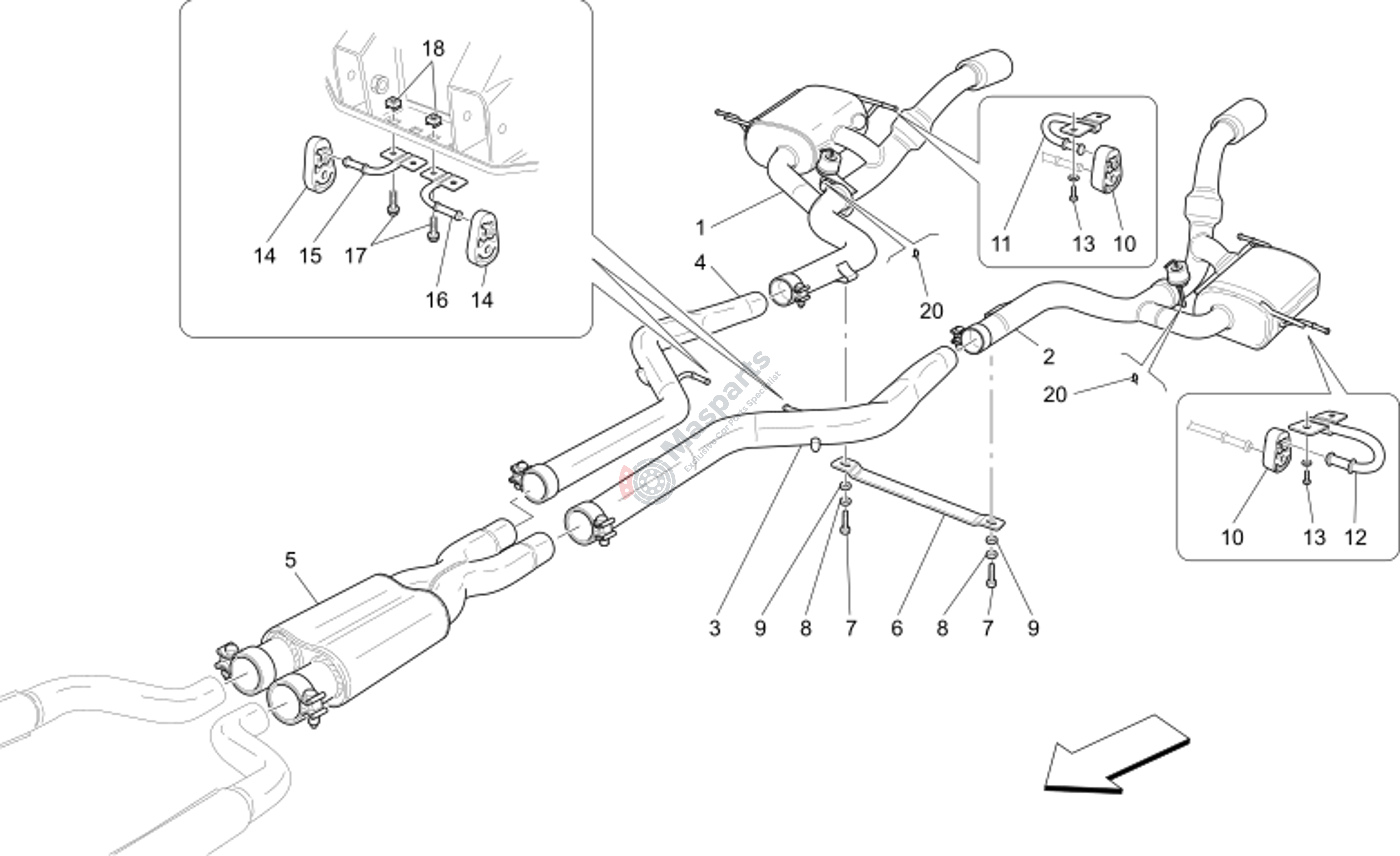

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-286220 | Rear Right Silencer |
$4,544.81 |
|
|
| 2 | M-286221 | Left Right Silencer |
$4,544.81 |
|
|
| 3 | M-228584 | L.H. Exhaust Extension |
$275.15 |
|
|
| 4 | M-228583 | R.H. Exhaust Extension |
$275.15 |
|
|
| 5 | M-228235 | Central Muffler |
$3,086.61 |
|
|
| 6 | M-272918 | Spacer On Rear Silencer |
$46.33 |
|
|
| 7 | M-16043224 | Screw For Rubber Exhaust |
$1.72 |
|
|
| 8 | M-12601374 | Washer |
$1.36 |
|
|
| 9 | M-12638524 | Washer For Abs/Asr Hydrau |
$1.72 |
|
|
| 10 | M-211577 | Buffer For Support |
$25.64 |
|
|
| 11 | M-230087 | Bracket |
$30.84 |
|
|
| 12 | M-230395 | Bracket |
$30.84 |
|
|
| 13 | M-16281921 | Screw. |
$2.46 |
|
|
| 14 | M-211577 | Buffer For Support |
$25.64 |
|
|
| 15 | M-224778 | R.H. Bracket |
$61.05 |
|
|
| 16 | M-224777 | L.H. Bracket |
$25.94 |
|
|
| 17 | M-16281921 | Screw. |
$2.46 |
|
|
| 18 | M-67330700 | Nut |
$2.11 |
|
|
| 20 | M-980145501 | Pin |
$93.33 |
|
