Diagram image not available

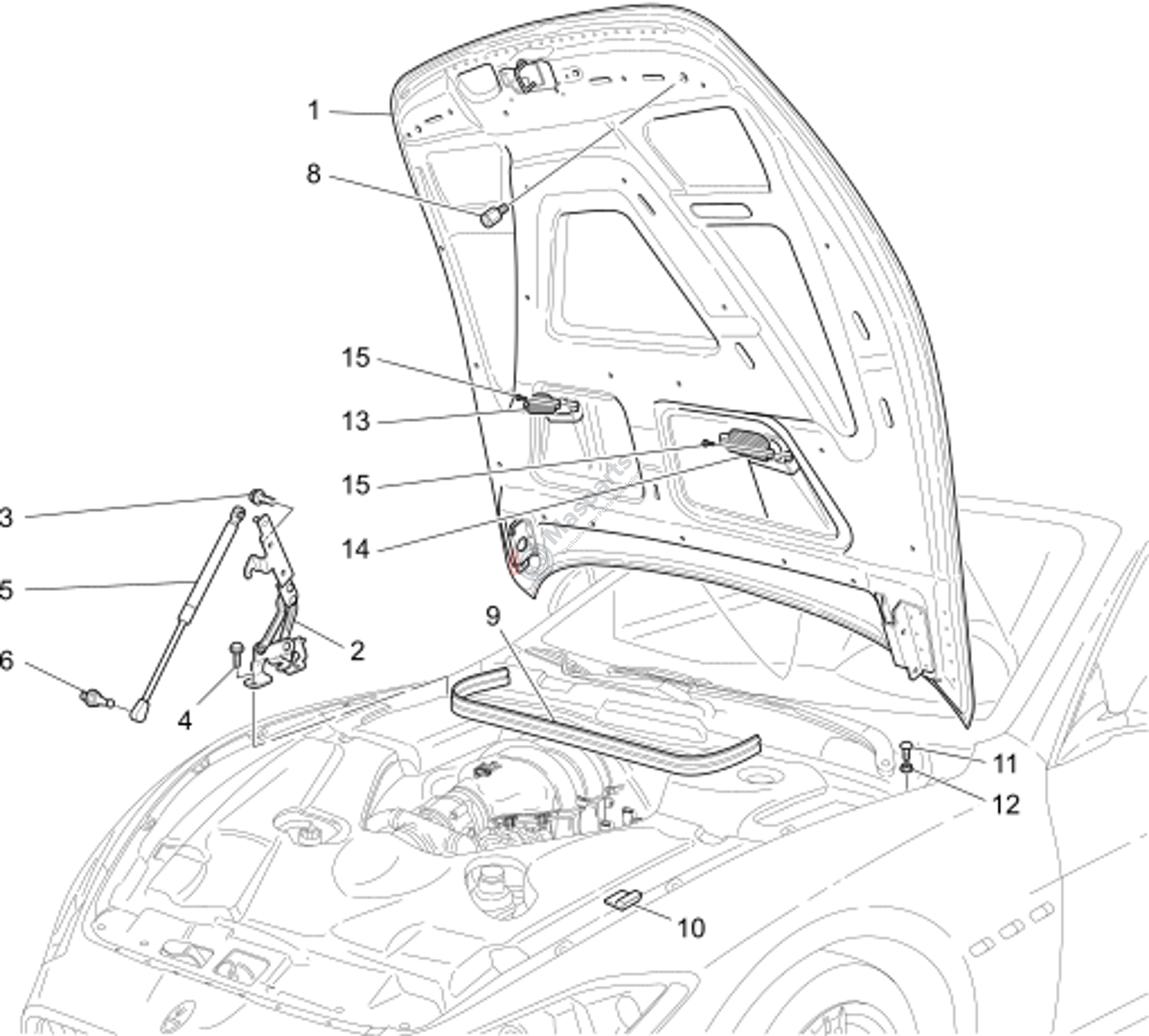

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-83559500 | Bonnet Cs |
$6,298.14 |
|
|
| 2 | M-81082600 | Front Lid Rh Hinge |
$114.75 |
|
|
| 3 | M-16287024 | Screw. |
$2.48 |
|
|
| 4 | M-16287024 | Screw. |
$2.48 |
|
|
| 5 | M-68250000 | Gas Spring |
$50.58 |
|
|
| 6 | M-67999300 | Pin |
$6.22 |
|
|
| 8 | M-65546600 | Small Block. |
$1.13 |
|
|
| 9 | M-80085600 | Gasket |
$2,284.31 |
|
|
| 10 | M-80559500 | Pad |
$33.26 |
|
|
| 11 | M-81598100 | Pad |
$14.63 |
|
|
| 12 | M-13046111 | Nut |
$1.54 |
|
|
| 13 | M-83969700 | Rh Engine Compt. Lid Grill |
$44.31 |
|
|
| 14 | M-83969800 | Engine Compt. Lid Grill |
$38.75 |
|
|
| 15 | M-13289277 | Screw |
$2.97 |
|
