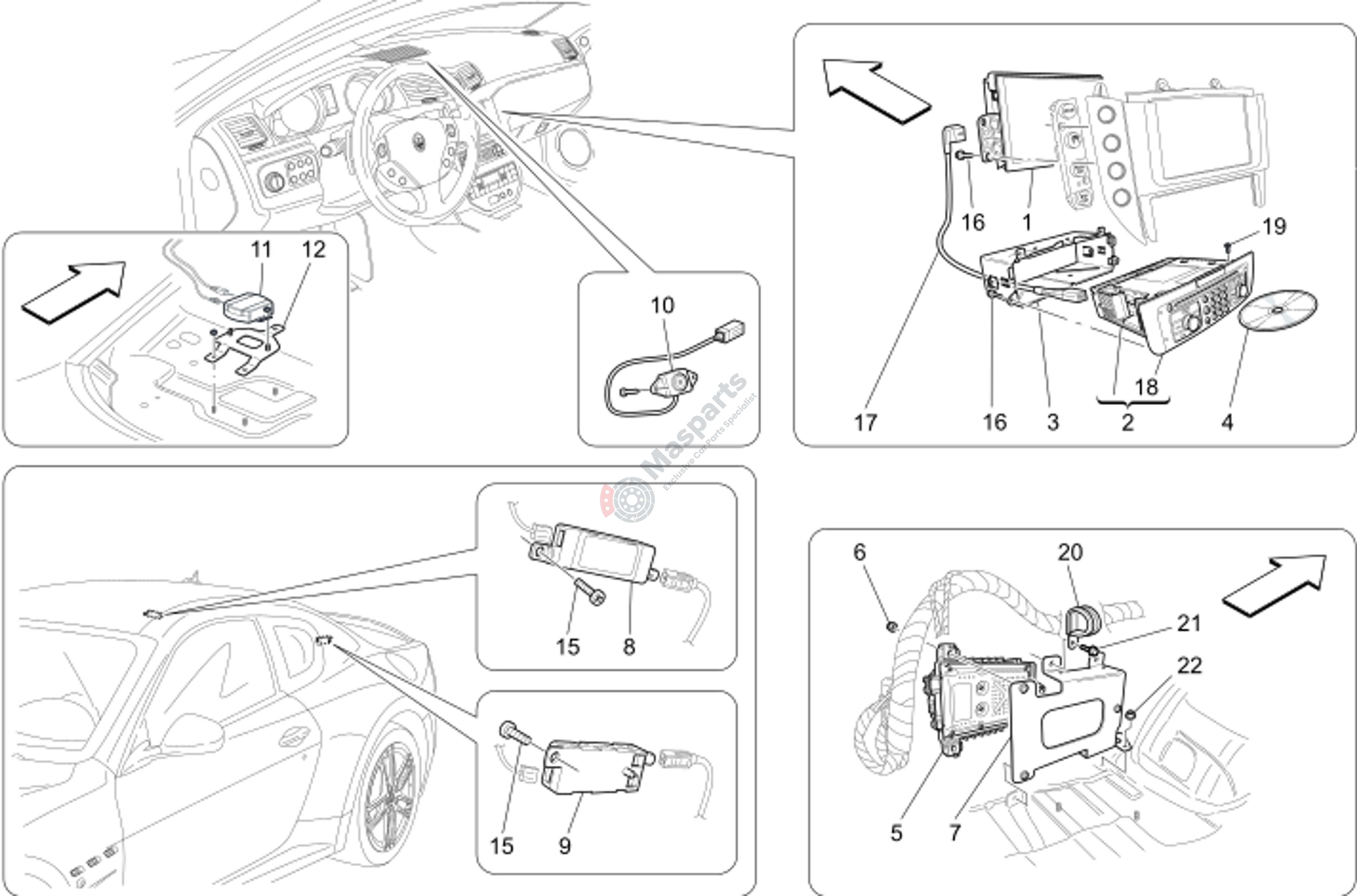

Diagram image not available
The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-226830 | Display Nit M145 |
$1,379.44 |
|
|
| 2 | M-341829 | Silver Box Nit M145 8.1 (Usa |
$5,597.97 |
|
|
| 3 | M-69892800 | Bin |
$132.98 |
|
|
| 4 | M-283418 | Cpl.Navigation Cd Me Market |
$600.57 |
|
|
| 5 | M-230520 | Amplifier -Bose Premium Syst |
$1,380.45 |
|
|
| 6 | M-14084211 | Nut |
$1.61 |
|
|
| 7 | M-229263 | Bracket -Bose Premium System |
$49.55 |
|
|
| 8 | M-231150 | Radio Antenna Amplifier -Fm2 |
$67.02 |
|
|
| 9 | M-231149 | Radio Antenna Amplifier -Am/ |
$59.10 |
|
|
| 10 | M-192522 | Audiopilot Microphone. |
$71.67 |
|
|
| 11 | M-298832 | Sirius Module |
$305.65 |
|
|
| 12 | M-248695 | Bracket |
$19.79 |
|
|
| 15 | M-13273824 | Screw For Bracket On Glov |
$1.74 |
|
|
| 16 | M-14303021 | Screw For Cable Lockdown |
$1.54 |
|
|
| 18 | M-980145421 | Front Panel 145 Hw8.0/8.1 Us |
$1,185.96 |
|
|
| 19 | M-980145423 | Screw |
$2.11 |
|
|
| 20 | M-10441790 | Bracket With Sheath |
$1.14 |
|
|
| 21 | M-11620724 | Screw. |
$2.48 |
|
|
| 22 | M-14059211 | Nut |
$1.50 |
|
