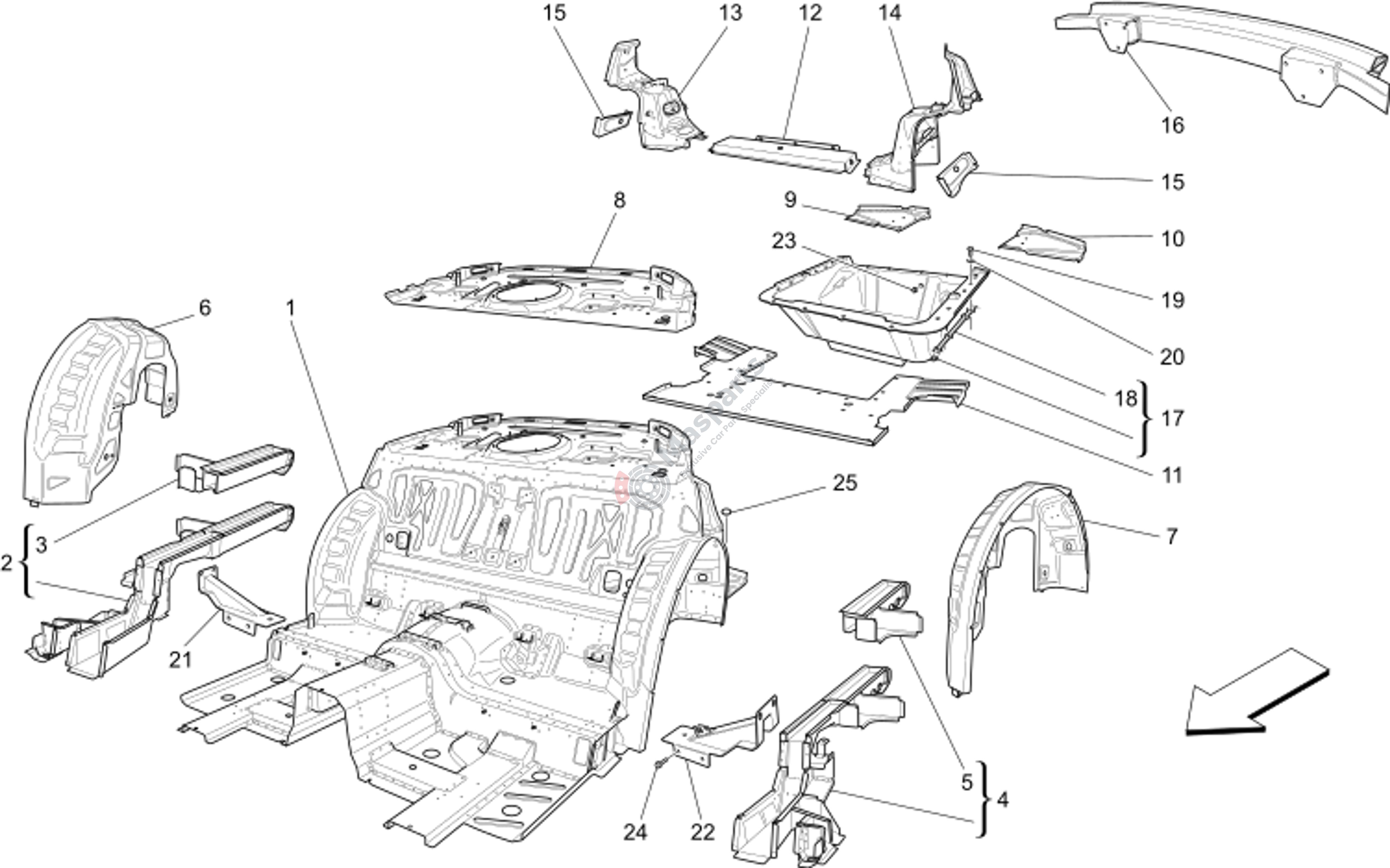

Diagram image not available
The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-980145371 | Cpl Rear Chassis |
$7,023.53 |
|
|
| 2 | M-980145046 | Cpl Rear Rh Control Rod |
$2,506.51 |
|
|
| 3 | M-980145048 | Rear Rh Control Rod |
$2,257.04 |
|
|
| 4 | M-980145047 | Complete L.H. Longitudinal M |
$2,506.51 |
|
|
| 5 | M-980145049 | L.H. Rear Sprag |
$2,257.04 |
|
|
| 6 | M-980145050 | Rh Rear Wheelhouse |
$1,231.72 |
|
|
| 7 | M-980145051 | Cpl Rear Lh Wheel House |
$1,231.72 |
|
|
| 8 | M-980145052 | Rear Window Rear Panel |
$686.23 |
|
|
| 9 | M-66829800 | Rear Floor Section |
$911.04 |
|
|
| 10 | M-66829900 | Rear Floor Section |
$979.08 |
|
|
| 11 | M-980145053 | Rear Floor Front Section |
$952.50 |
|
|
| 12 | M-67260800 | Cross-Member Connecting Shoc |
$123.75 |
|
|
| 13 | M-980145054 | Rear Rh Reinforcement |
$402.69 |
|
|
| 14 | M-980145055 | Rear Lh Reinforcement |
$402.69 |
|
|
| 15 | M-67276600 | Shock-Abs.Reinforcement Cove |
$201.35 |
|
|
| 16 | M-83790300 | Rear Bumper Cross Member |
$681.63 |
|
|
| 17 | M-83499600 | Cpl Spare Wheel Bay |
$408.22 |
|
|
| 18 | M-83499800 | Spare Wheel Bay Gasket |
$127.57 |
|
|
| 19 | M-13026124 | Screw |
$3.93 |
|
|
| 20 | M-14446521 | Washer. |
$1.81 |
|
|
| 21 | M-69054900 | R.H.Reinforcement |
$252.42 |
|
|
| 22 | M-83615700 | L.H.Reinforcement |
$59.67 |
|
|
| 23 | M-83662900 | Rubber Cap D65 |
$2.46 |
|
|
| 24 | M-11617324 | Screw. |
$2.94 |
|
|
| 25 | M-14507687 | Plug |
$1.72 |
|
