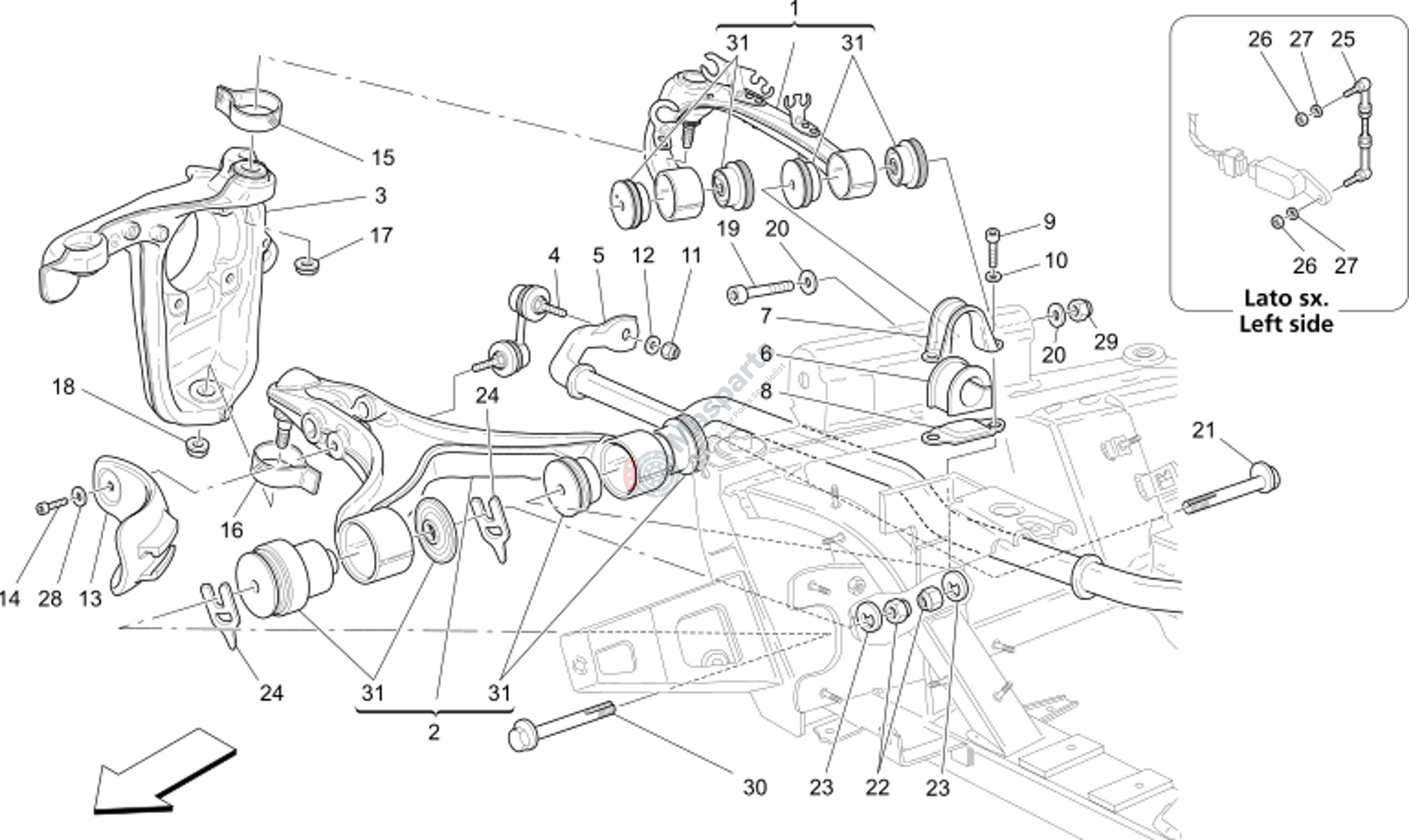

Diagram image not available
The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 4 | M-259572 | Ball Tie Rod |
€70,04 |
|
|
| 5 | M-234647 | Anti-Roll Bar |
€173,40 |
|
|
| 6 | M-192737 | Bar Buffer |
€14,08 |
|
|
| 7 | M-271290 | Upper Support For Anti-Roll |
€7,57 |
|
|
| 8 | M-271288 | Lower Support For Anti-Roll |
€5,36 |
|
|
| 9 | M-14307534 | Screw |
€7,45 |
|
|
| 10 | M-12604574 | Washer |
€1,15 |
|
|
| 11 | M-102742 | Nut. |
€1,46 |
|
|
| 12 | M-12601474 | Washer |
€1,15 |
|
|
| 13 | M-239646 | R.H.Air Flow Flap. |
€33,76 |
|
|
| 14 | M-314290 | Screw M10X125X25 |
€2,09 |
|
|
| 15 | M-386600416 | Joint Upper Protection |
€4,88 |
|
|
| 16 | M-386600416 | Joint Upper Protection |
€4,88 |
|
|
| 17 | M-245240 | Nut |
€9,38 |
|
|
| 18 | M-247308 | Nut For Suspension Lever Adj |
€10,12 |
|
|
| 19 | M-15977934 | Screw -Valid For Usa And Cdn |
€8,74 |
|
|
| 20 | M-13550634 | Washer. |
€3,13 |
|
|
| 21 | M-260768 | Screw With Eccentric M14X1.5 |
€38,92 |
|
|
| 22 | M-203795 | Nut. |
€4,78 |
|
|
| 23 | M-240877 | Washer |
€5,24 |
|
|
| 24 | M-295191 | Distanz Di Spess Sp 125 X Vi |
€3,34 |
|
|
| 25 | M-188629 | Tie Rod For Light Adjusting |
€27,03 |
|
|
| 26 | M-102741 | Nut |
€1,46 |
|
|
| 27 | M-14498824 | Washer. |
€1,46 |
|
|
| 28 | M-12641024 | Washer. |
€2,50 |
|
|
| 29 | M-203795 | Nut. |
€4,78 |
|
|
| 30 | M-260767 | Screw With Eccentric M14X1.5 |
€39,56 |
|
|
| 31 | M-980139889 | Silent Block Kit Front Suspe |
€473,80 |
|
