The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.

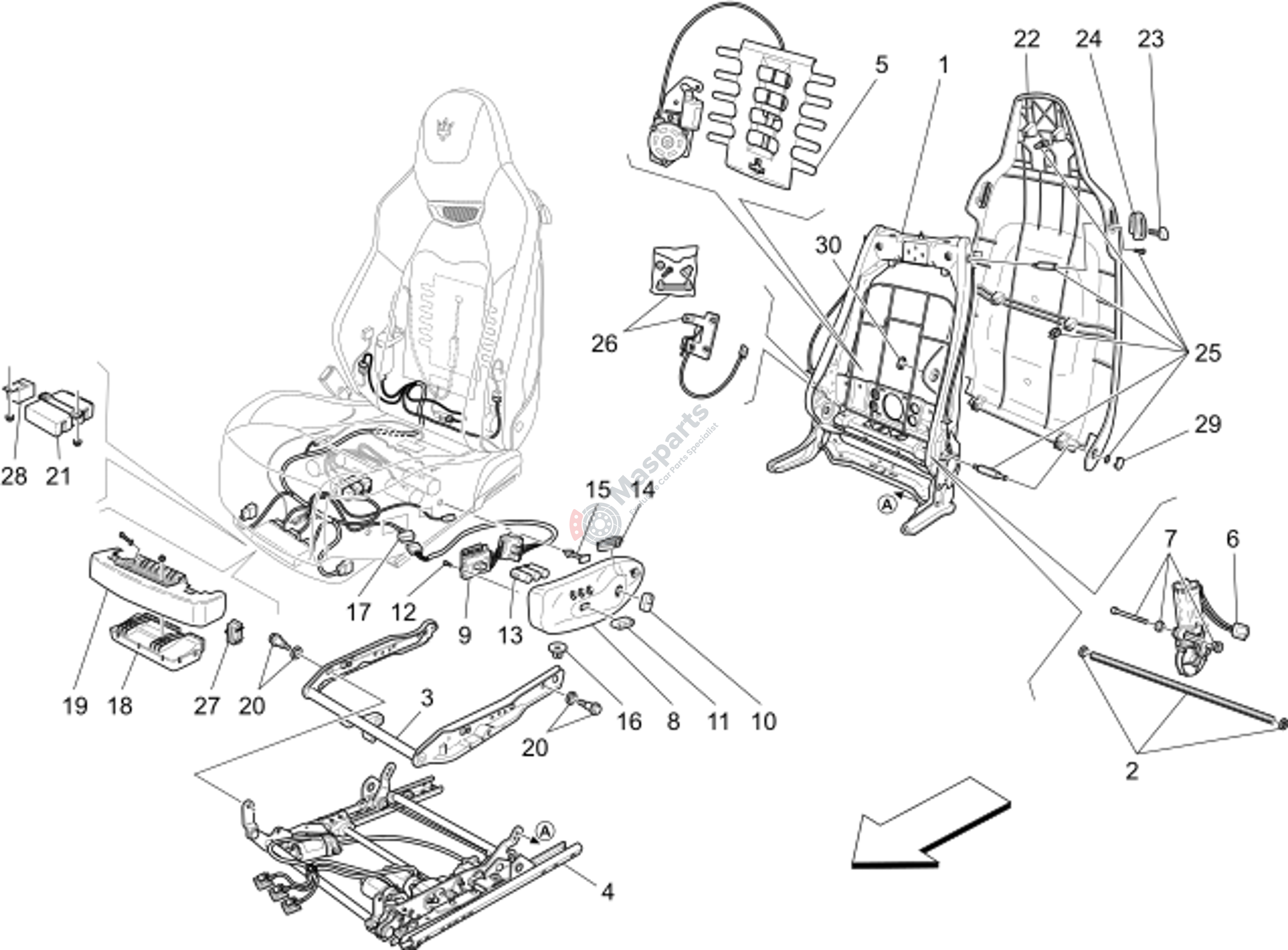

| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-980145462 | Front Seat Framework Assembl |
€1.334,92 |
|
|
| 2 | M-66328800 | Complete Union Bar |
€26,61 |
|
|
| 4 | M-980138112 | Fr.Seat Movem.Unit- Dri. And |
€2.230,40 |
|
|
| 5 | M-980145324 | Lumbar Support Adjustment De |
€279,50 |
|
|
| 6 | M-386900402 | Seat Back Adjustment Motor |
€322,50 |
|
|
| 7 | M-386900403 | Bushing And Screw Kit Fo |
€50,69 |
|
|
| 8 | M-980145087 | Standard Rh Side Guardblack |
€74,80 |
|
|
| 9 | M-980145146 | Rh Cush./Backr. Adjustment J |
€409,36 |
|
|
| 10 | M-980145095 | Seat Back Adjustment Button |
€48,42 |
|
|
| 11 | M-980145096 | Cushion Adjustment Button |
€54,46 |
|
|
| 12 | M-980145102 | Torx Screw 2.2X5 For Button |
€16,01 |
|
|
| 15 | M-386900404 | Guard Fastening Pin |
€15,27 |
|
|
| 16 | M-386900405 | Guard Fastening Nut Screw M1 |
€4,38 |
|
|
| 18 | M-285991 | Memory Control Unit |
€1.120,58 |
|
|
| 19 | M-980145119 | Bracket |
€41,77 |
|
|
| 20 | M-980001023 | Seat Unit Mov. Fastening Kit |
€98,44 |
|
|
| 21 | M-271608 | Seats Adjustment Ecu |
€232,76 |
|
|
| 22 | M-85235300 | Carbon Shell |
€3.334,08 |
|
|
| 23 | M-980145120 | Front Seat Release Knob |
€58,05 |
|
|
| 24 | M-980145460 | R.H. Front Seat Release Leve |
€32,29 |
|
|
| 25 | M-980145463 | Seat Back Panel Fixing Kit |
€61,46 |
|
|
| 26 | M-980145845 | Rh Microswitch Kit |
€69,75 |
|
|
| 28 | M-980139417 | Heater Ecu Opt/Winter |
€318,32 |
|
