Diagram image not available

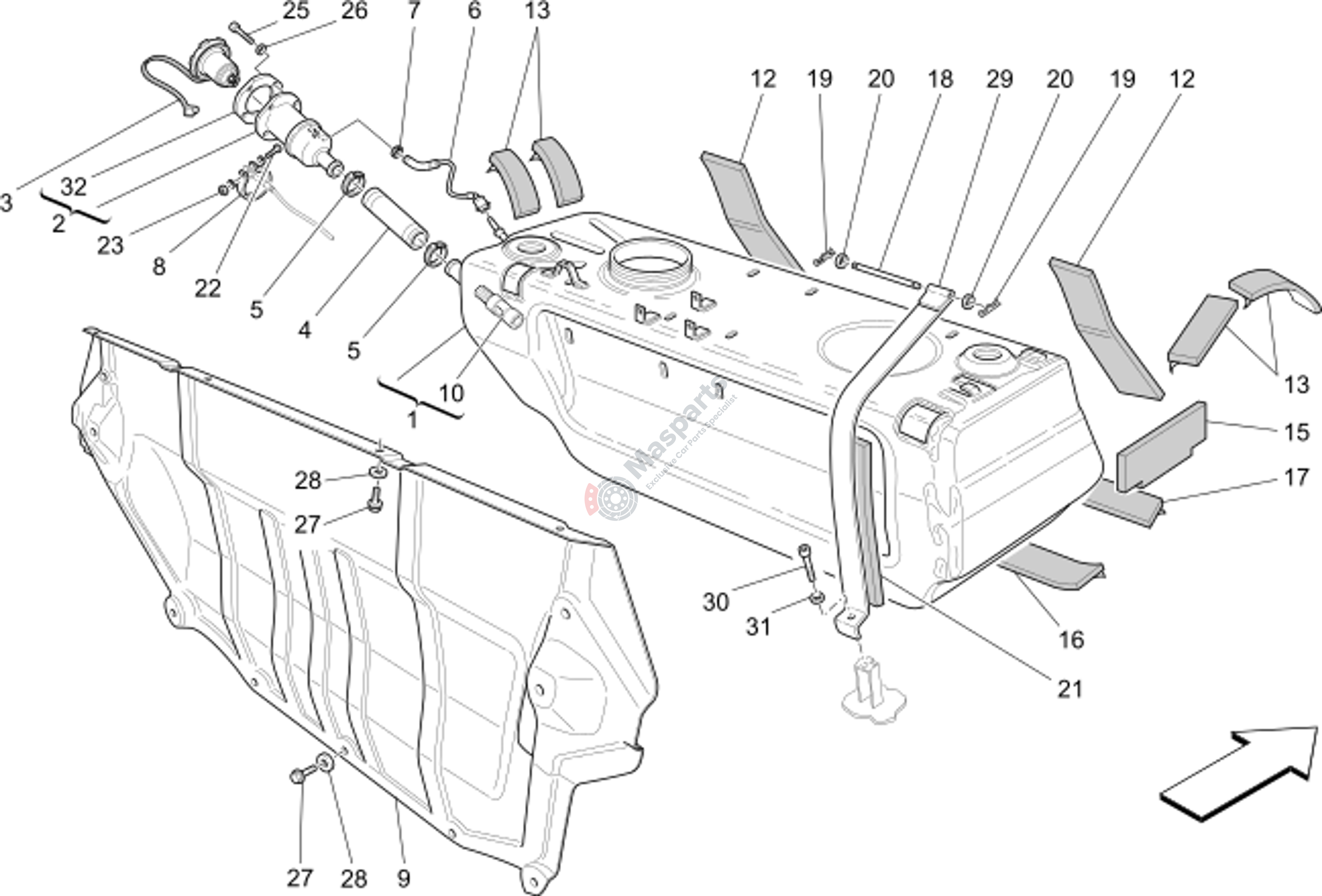

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-224260 | Fuel Tank |
$1,386.68 |
|
|
| 2 | M-222257 | Fuel Filler Neck |
$49.77 |
|
|
| 3 | M-212680 | Tank Plug |
$62.99 |
|
|
| 4 | M-224261 | Union-Tank Connecting Pipe |
$57.23 |
|
|
| 5 | M-13000590 | Screw Collar |
$3.60 |
|
|
| 6 | M-224319 | Vapors Recycling Pipe |
$35.64 |
|
|
| 7 | M-13432070 | Collar |
$1.13 |
|
|
| 8 | M-203446 | Collar Fas.Earth Cable To Fi |
$44.41 |
|
|
| 9 | M-68412200 | Tank Shield |
$82.12 |
|
|
| 10 | M-237407 | Fuel Check Valve |
$22.19 |
|
|
| 12 | M-192990 | Rubber Thickness. |
$11.07 |
|
|
| 13 | M-229260 | Rubber Thickness |
$2.40 |
|
|
| 15 | M-192329 | Rubber Thickness. |
$4.44 |
|
|
| 16 | M-229258 | Rubber Thickness |
$16.08 |
|
|
| 17 | M-229259 | Rubber Thickness |
$12.52 |
|
|
| 18 | M-389200520 | Pin |
$9.19 |
|
|
| 19 | M-58841309 | Safety Clip |
$5.03 |
|
|
| 20 | M-12648206 | Washer |
$1.47 |
|
|
| 21 | M-379200397 | Rubber Gasket For Fuel Fille |
$4.74 |
|
|
| 22 | M-10389321 | Screw. |
$3.79 |
|
|
| 23 | M-14059121 | Nut |
$1.66 |
|
|
| 25 | M-13289277 | Screw |
$2.84 |
|
|
| 26 | M-389200348 | Washer |
$6.37 |
|
|
| 27 | M-11625724 | Screw. |
$2.84 |
|
|
| 28 | M-12643724 | Washer For Bracket On Hea |
$1.32 |
|
|
| 29 | M-232638 | Fuel Tank Fastener |
$20.87 |
|
|
| 30 | M-205402 | Screw. |
$2.38 |
|
|
| 31 | M-13550224 | Washer. |
$3.14 |
|
|
| 32 | M-980139787 | Gasket |
$1.68 |
|
