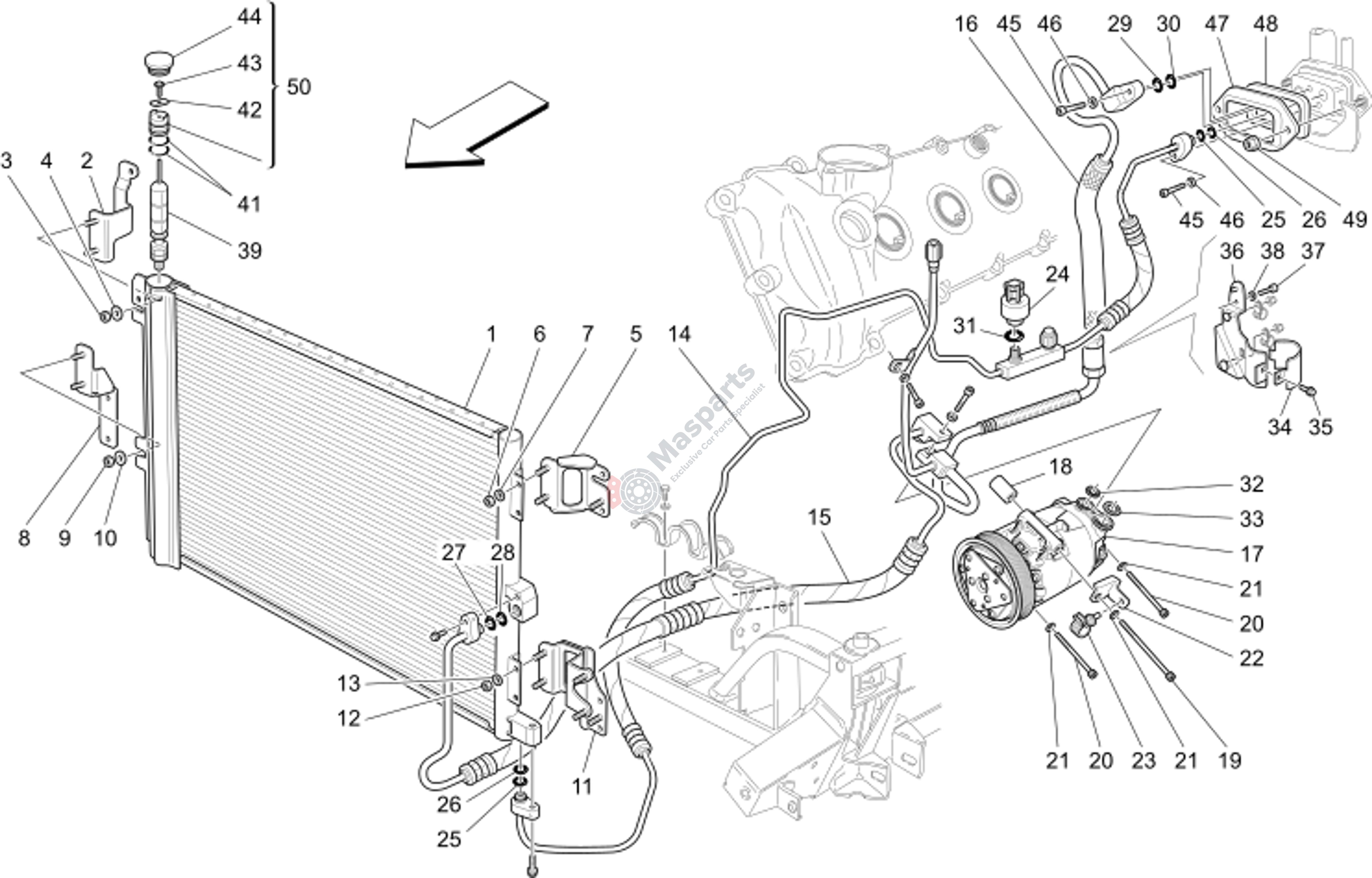

| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-228388 | A.C. Condenser |
€588,79 |
||
| 2 | M-239419 | Bracket |
€22,32 |
||
| 3 | M-102741 | Nut |
€1,35 |
||
| 4 | M-12643704 | Washer |
€1,35 |
||
| 5 | M-239421 | Bracket |
€14,30 |
||
| 6 | M-102741 | Nut |
€1,35 |
||
| 7 | M-12644404 | Washer |
€1,07 |
||
| 8 | M-239420 | Bracket |
€17,00 |
||
| 9 | M-102741 | Nut |
€1,35 |
||
| 10 | M-12643704 | Washer |
€1,35 |
||
| 11 | M-239422 | Bracket |
€32,56 |
||
| 12 | M-102741 | Nut |
€1,35 |
||
| 13 | M-12644404 | Washer |
€1,07 |
||
| 14 | M-84696800 | Pipe From Condenser To Shiel |
€181,71 |
||
| 15 | M-80375900 | Pipe From Compressor To Cond |
€195,10 |
||
| 16 | M-89310400 | Pipe From Compressor To Shie |
€363,25 |
||
| 18 | M-141496 | Spacer Bet.Actuator And Gear |
€10,24 |
||
| 19 | M-175428 | Socket Head Screw M8X120 |
€8,31 |
||
| 20 | M-14307124 | Socket Head Screw M 8X 90 |
€14,30 |
||
| 20 | M-14307124 | Socket Head Screw M 8X 90 |
€14,30 |
||
| 21 | M-11186374 | Washer |
€2,03 |
||
| 21 | M-11186374 | Washer |
€2,03 |
||
| 21 | M-11186374 | Washer |
€2,03 |
||
| 22 | M-227256 | Bracket |
€25,89 |
||
| 23 | M-67063200 | Clip. |
€2,90 |
||
| 24 | M-65628200 | Pressostat |
€128,26 |
||
| 25 | M-68392000 | O-Ring 0691154 |
€5,70 |
||
| 25 | M-68392000 | O-Ring 0691154 |
€5,70 |
||
| 26 | M-68392100 | O-Ring 069861 |
€3,39 |
||
| 26 | M-68392100 | O-Ring 069861 |
€3,39 |
||
| 27 | M-66309700 | O-Ring 069862 |
€14,59 |
||
| 28 | M-68392700 | O-Ring 0691177 |
€2,90 |
||
| 29 | M-68392800 | O-Ring 0691178 |
€4,54 |
||
| 30 | M-66309800 | O-Ring 069863 |
€14,59 |
||
| 31 | M-66309600 | O-Ring 069579 |
€14,59 |
||
| 32 | M-67085400 | Or Gasket For 7Cvc Compr. (D |
€19,23 |
||
| 33 | M-67085300 | Or Gasket For 7Cvc Compr. (I |
€19,23 |
||
| 34 | M-68199800 | Bracket |
€11,50 |
||
| 35 | M-16297627 | Screw. |
€1,93 |
||
| 36 | M-233192 | Bracket -Valid For Gd- |
€290,19 |
||
| 37 | M-14305724 | Screw |
€1,35 |
||
| 38 | M-127494 | Washer |
€1,07 |
||
| 39 | M-254649 | Dehydrating Filter |
€297,44 |
||
| 41 | M-251239 | Sealing Or |
€10,82 |
||
| 42 | M-251238 | Closing Disc Plate |
€15,65 |
||
| 43 | M-251237 | Screw With Washer |
€17,00 |
||
| 45 | M-14305424 | Screw |
€1,35 |
||
| 45 | M-14305424 | Screw |
€1,35 |
||
| 46 | M-11197774 | Washer |
€1,59 |
||
| 46 | M-11197774 | Washer |
€1,59 |
||
| 47 | M-80964400 | Flange |
€15,84 |
||
| 48 | M-80964500 | Gasket |
€4,06 |
||
| 49 | M-14040611 | Nut |
€1,35 |
||
| 50 | M-254356 | Filter Kit |
€73,13 |
