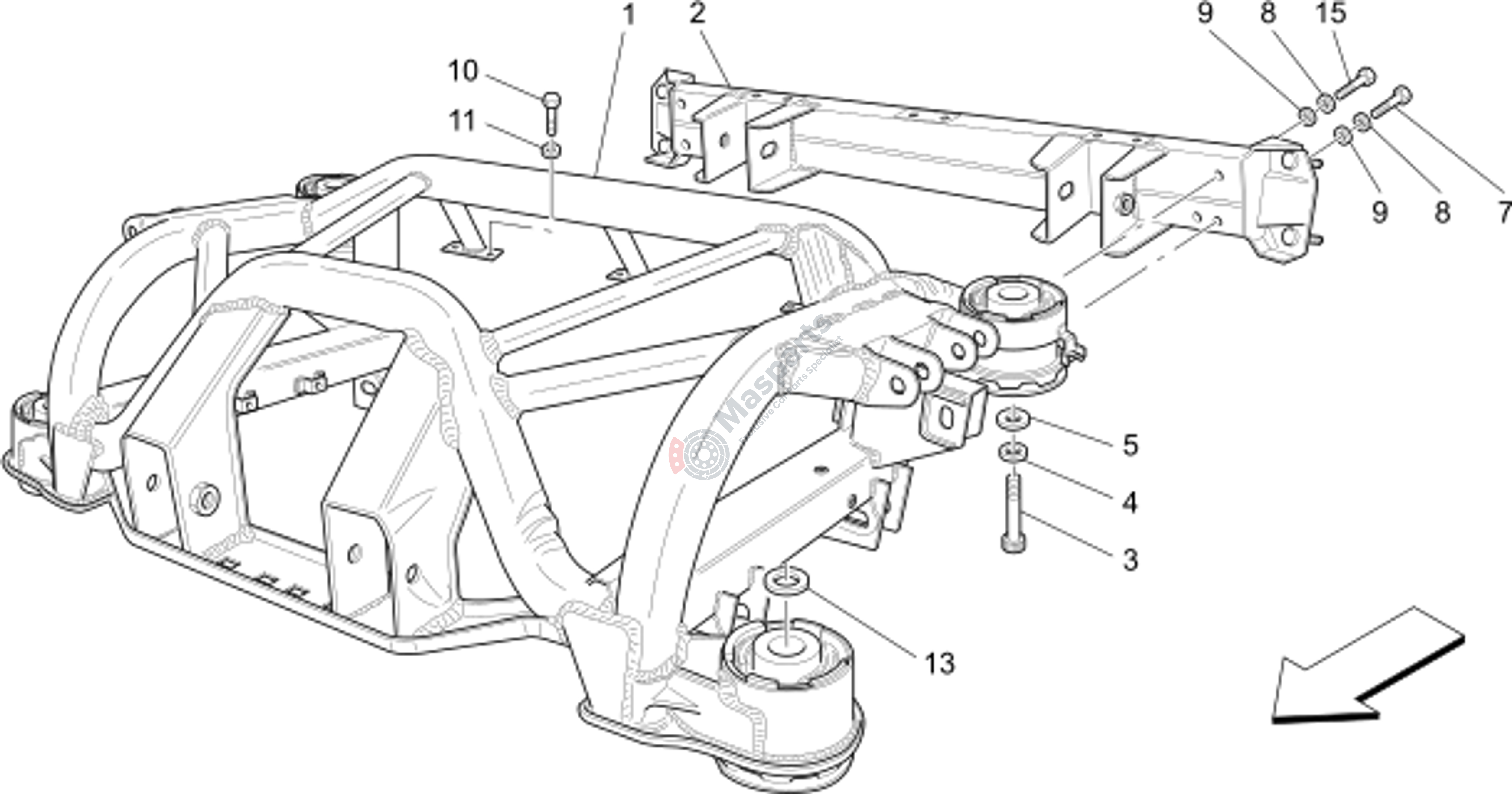

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-980145392 | Cpl. Rear Suspension Frame |
€5.328,65 |
|
|
| 2 | M-247035 | Rear Cross Member |
€592,45 |
|
|
| 3 | M-67997900 | Screw. |
€10,40 |
|
|
| 4 | M-12646934 | Washer |
€1,88 |
|
|
| 5 | M-244175 | Washer |
€6,16 |
|
|
| 7 | M-11343821 | Hex Head Screw M 10X1.25X |
€10,21 |
|
|
| 8 | M-14496624 | Washer |
€1,46 |
|
|
| 9 | M-11190577 | Washer |
€4,28 |
|
|
| 10 | M-11343821 | Hex Head Screw M 10X1.25X |
€10,21 |
|
|
| 11 | M-12641024 | Washer. |
€2,50 |
|
|
| 13 | M-249517 | Spacer |
€3,13 |
|
|
| 15 | M-15971321 | Screw |
€10,40 |
|
