Diagram image not available

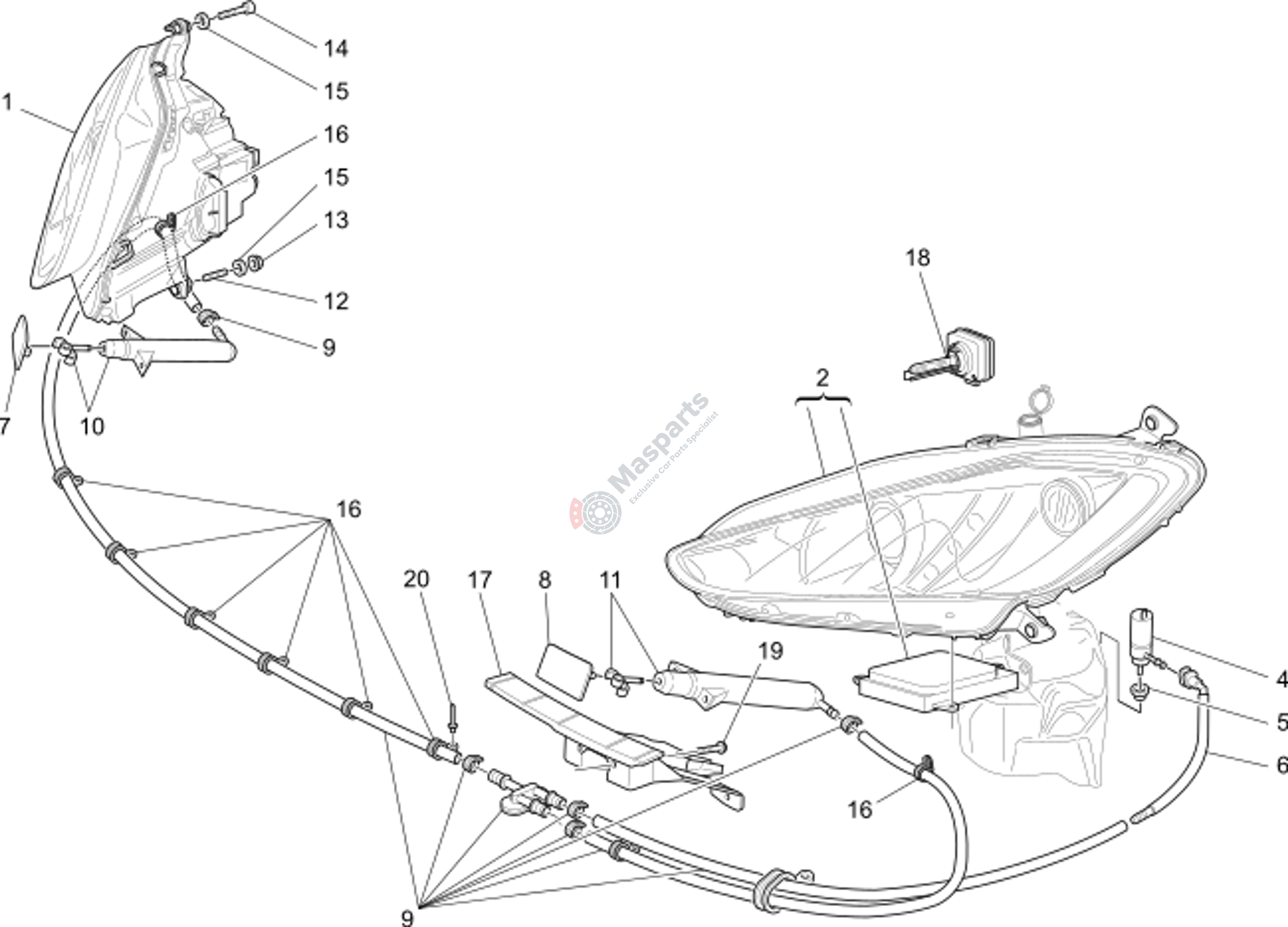

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-294598 | R.H. Front Headlight Titan F |
€2.314,86 |
|
|
| 2 | M-294599 | L.H. Front Headlight Titan F |
€2.314,86 |
|
|
| 4 | M-65164700 | Headlight Washer Pump |
€67,15 |
|
|
| 5 | M-65511700 | Headlight Washer Pump Gasket |
€4,38 |
|
|
| 6 | M-80554300 | Cpl Headlight Washers Union |
€108,80 |
|
|
| 7 | M-80056810 | Rh Headlight Washers System |
€139,39 |
|
|
| 8 | M-80056710 | Lh Headlight Washer System C |
€148,12 |
|
|
| 9 | M-980145141 | Headlight Washer System Line |
€117,30 |
|
|
| 10 | M-980145142 | Cpl Rh Telesc. Headlight Was |
€155,55 |
|
|
| 11 | M-980145143 | Cpl Lh Telesc. Headlight Was |
€160,65 |
|
|
| 12 | M-13541724 | Stud |
€2,09 |
|
|
| 13 | M-13046114 | Nut For Shield Connection |
€1,46 |
|
|
| 14 | M-16286524 | Screw. |
€2,09 |
|
|
| 15 | M-12647124 | Washer |
€1,88 |
|
|
| 16 | M-10441590 | Bracket With Sheath |
€0,95 |
|
|
| 17 | M-80056400 | R.H.Bracket |
€23,92 |
|
|
| 18 | M-900028015 | Xenon Light D1S 35W |
€168,00 |
|
|
| 19 | M-16084401 | A/Mt/Tbfnic Screw 5X20 Ab |
€1,78 |
|
|
| 20 | M-14642791 | Rivet Tt D 4.8X12 |
€4,28 |
|
