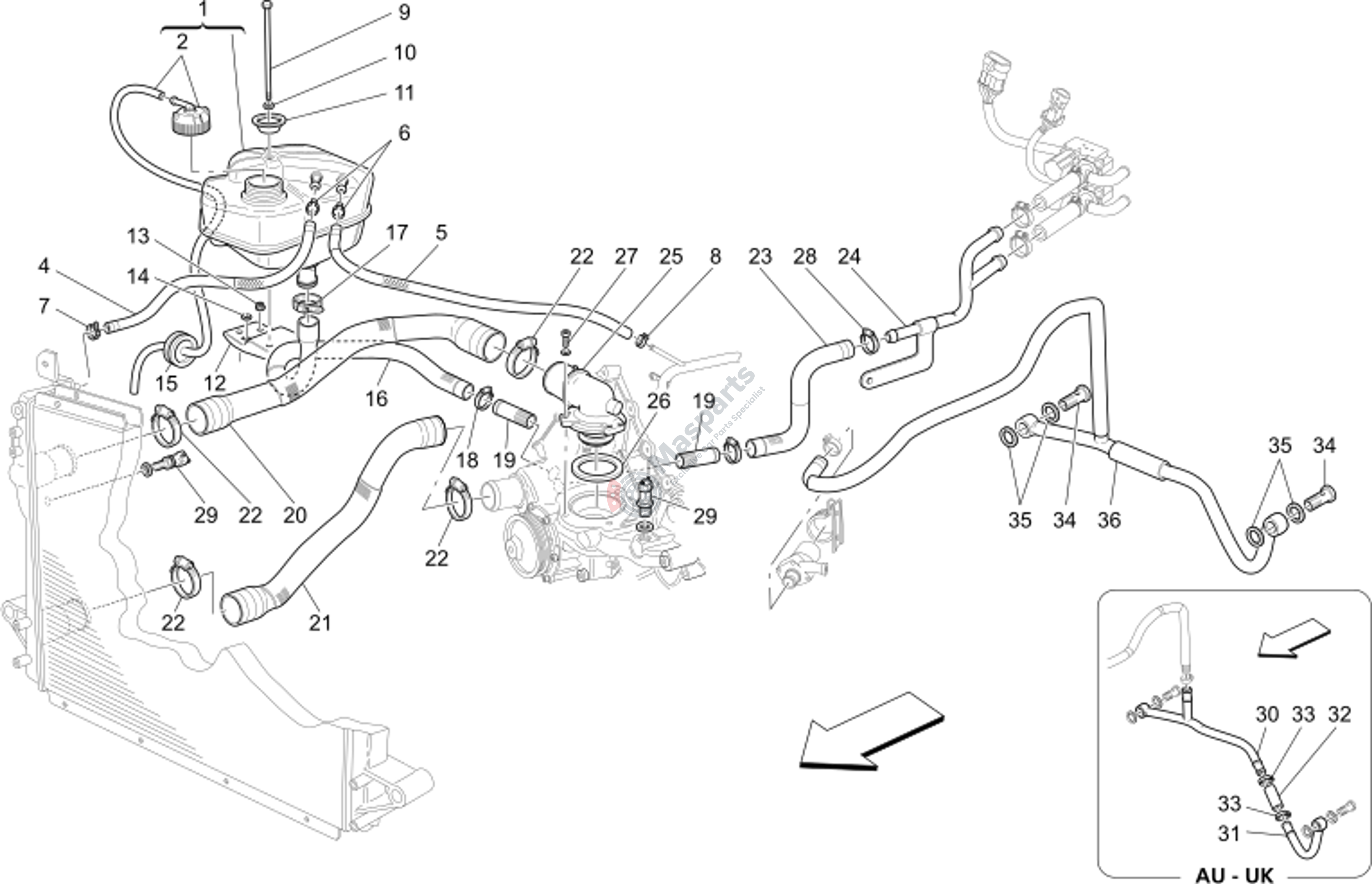

Diagram image not available
The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-296547 | Complete Expansion Tank |
$65.69 |
|
|
| 2 | M-980145477 | Cap For Coolant Tank +C Type |
$19.30 |
|
|
| 4 | M-230562 | Vent Pipe From Expansion Tan |
$24.10 |
|
|
| 5 | M-237546 | Vent Pipe From Expansion Tan |
$26.28 |
|
|
| 6 | M-13125470 | Collar |
$1.71 |
|
|
| 7 | M-13000190 | Screw Collar |
$1.11 |
|
|
| 8 | M-13000390 | Screw Collar |
$1.79 |
|
|
| 9 | M-60607472 | Screw |
$7.63 |
|
|
| 10 | M-12601274 | Washer |
$1.37 |
|
|
| 11 | M-82404496 | Cup |
$3.06 |
|
|
| 12 | M-228422 | Bracket |
$12.28 |
|
|
| 13 | M-14065921 | Nut |
$1.52 |
|
|
| 14 | M-12646634 | Washer |
$2.92 |
|
|
| 15 | M-228047 | Chock |
$6.93 |
|
|
| 16 | M-227136 | Pipe From Expansion Tank To |
$62.38 |
|
|
| 17 | M-13000590 | Screw Collar |
$3.70 |
|
|
| 18 | M-13000190 | Screw Collar |
$1.11 |
|
|
| 19 | M-228438 | Threaded Union M20X15 |
$6.13 |
|
|
| 20 | M-237593 | Delivery Pipe From Engine To |
$68.83 |
|
|
| 21 | M-237594 | Return Pipe From Radiator To |
$78.05 |
|
|
| 22 | M-13000790 | Screw Collar |
$1.71 |
|
|
| 23 | M-69418200 | Rubber Hose To Pump |
$71.18 |
|
|
| 24 | M-69417100 | Rigid Pipe |
$361.58 |
|
|
| 25 | M-230890 | Thermostat Cover With Press. |
$123.42 |
|
|
| 26 | M-137873 | Gasket Betw. Thermostat And |
$9.35 |
|
|
| 27 | M-231617 | Socket Head Screw With Washe |
$2.44 |
|
|
| 28 | M-13097090 | Elastic Collar |
$3.65 |
|
|
| 29 | M-180137 | Water Temperature Sensor |
$39.43 |
|
|
| 34 | M-203787 | Filler Neck M18X1.5 |
$24.59 |
|
|
| 35 | M-10259960 | Gasket 18- 24X 1 |
$1.12 |
|
|
| 36 | M-219483 | Cpl Water System (From Cyl.H |
$305.05 |
|
