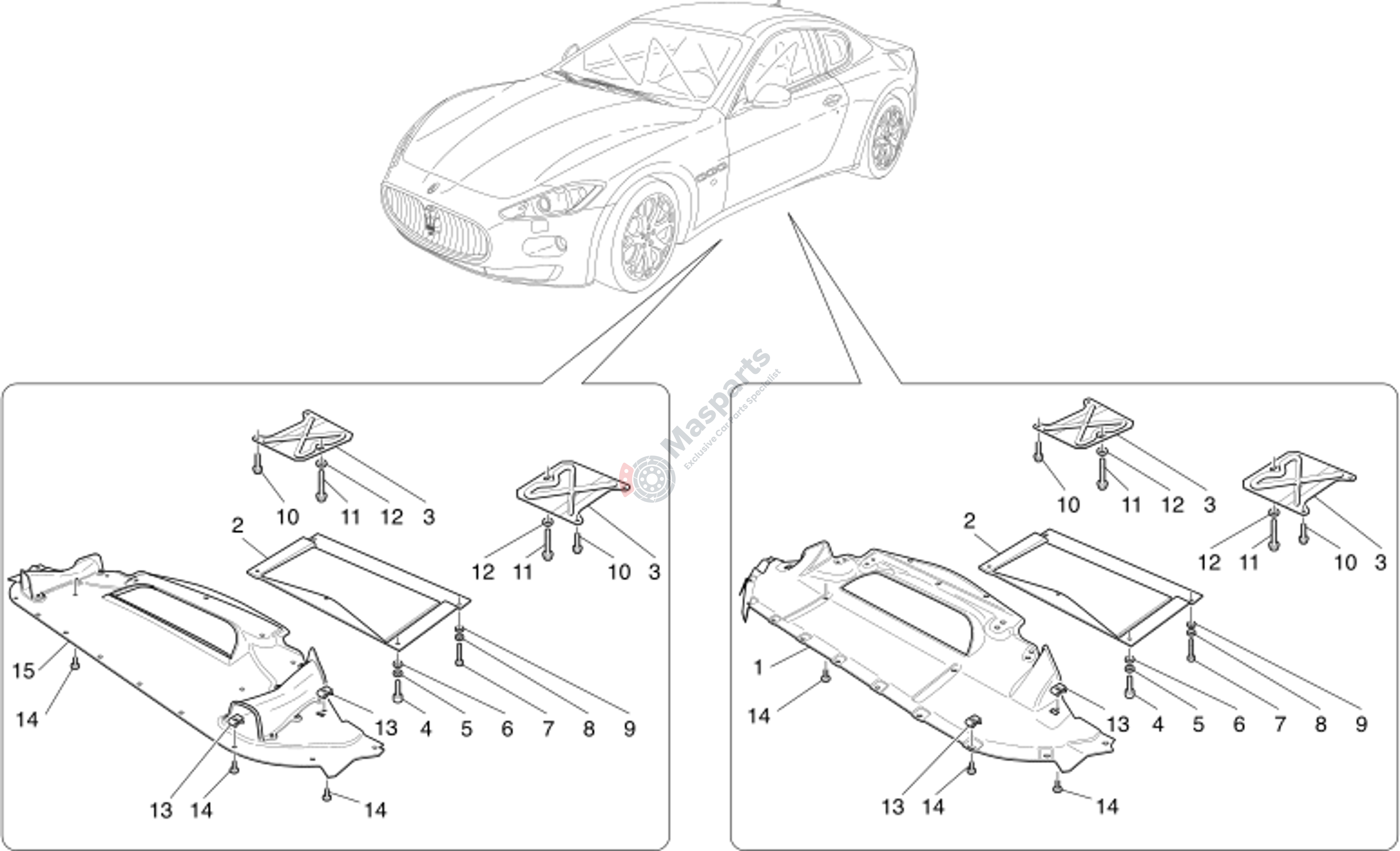

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-81263400 | Front Aerodynamic Shield |
$147.00 |
|
|
| 2 | M-67960100 | Under Frame Shield. |
$236.20 |
|
|
| 3 | M-67576300 | Cover For Piping. |
$22.48 |
|
|
| 4 | M-15970324 | Screw |
$2.45 |
|
|
| 5 | M-12601474 | Washer |
$1.36 |
|
|
| 6 | M-12646824 | Washer |
$1.72 |
|
|
| 7 | M-10902524 | Screw |
$1.72 |
|
|
| 8 | M-12601274 | Washer |
$1.38 |
|
|
| 9 | M-12640624 | Washer |
$1.75 |
|
|
| 10 | M-11617324 | Screw. |
$2.93 |
|
|
| 11 | M-13217434 | Screw. |
$7.66 |
|
|
| 12 | M-12646934 | Washer |
$2.20 |
|
|
| 13 | M-80093600 | Clip |
$15.74 |
|
|
| 14 | M-51810310 | Screw. |
$3.71 |
|
|
| 15 | M-83536300 | Front Aerodynamic Shield |
$366.53 |
|
