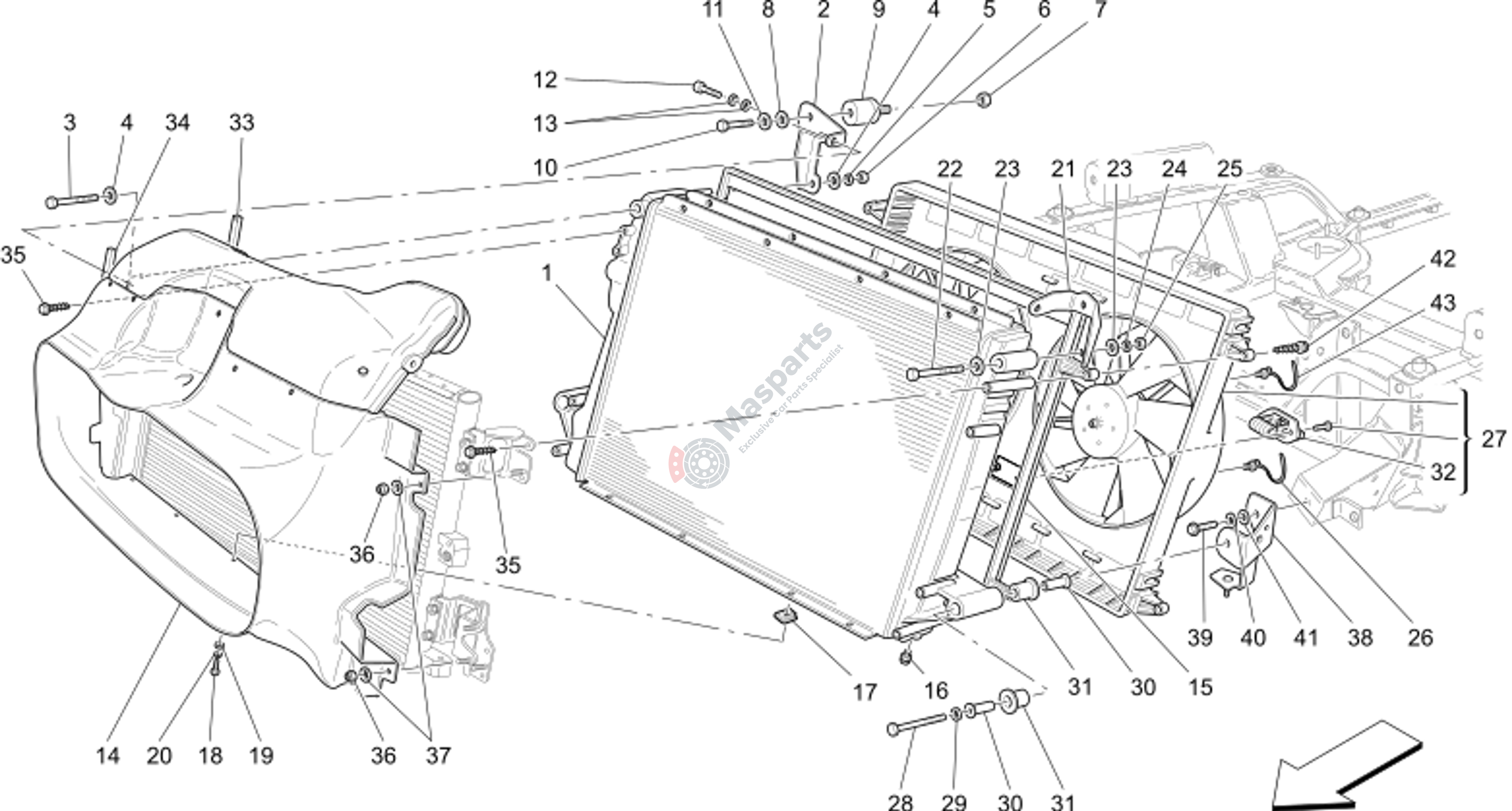

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-220979 | Water Radiator |
$597.18 |
|
|
| 2 | M-244202 | R.H. Bracket For Upper Fixin |
$46.05 |
|
|
| 3 | M-16044624 | Screw |
$2.39 |
|
|
| 4 | M-12646724 | Washer |
$1.67 |
|
|
| 5 | M-12601379 | Washer |
$1.32 |
|
|
| 6 | M-16100814 | Nut For Rear Differential |
$1.67 |
|
|
| 7 | M-14058511 | Cup |
$1.67 |
|
|
| 8 | M-14496524 | Washer |
$1.67 |
|
|
| 9 | M-181114 | Rubber Pad |
$11.87 |
|
|
| 10 | M-16043021 | Screw. |
$1.67 |
|
|
| 11 | M-12601379 | Washer |
$1.32 |
|
|
| 12 | M-14305724 | Screw |
$1.67 |
|
|
| 13 | M-12620474 | Washer |
$1.48 |
|
|
| 14 | M-235203 | Air Conveyor |
$289.05 |
|
|
| 16 | M-980139638 | Radiator Lower Plug |
$10.52 |
|
|
| 17 | M-67257100 | Bracket |
$1.75 |
|
|
| 18 | M-14304624 | Screw |
$0.95 |
|
|
| 19 | M-12601174 | Washer |
$1.55 |
|
|
| 20 | M-13577724 | Split Washer D.5.15-15X1.2 |
$1.67 |
|
|
| 21 | M-244165 | L.H. Bracket For Upper Fixin |
$33.21 |
|
|
| 22 | M-16044624 | Screw |
$2.39 |
|
|
| 23 | M-12646724 | Washer |
$1.67 |
|
|
| 24 | M-12601379 | Washer |
$1.32 |
|
|
| 25 | M-16100814 | Nut For Rear Differential |
$1.67 |
|
|
| 26 | M-268185 | Retaining Clamp |
$1.75 |
|
|
| 27 | M-263142 | Complete Electrofans Set |
$868.66 |
|
|
| 28 | M-16044824 | Screw |
$2.39 |
|
|
| 29 | M-12646724 | Washer |
$1.67 |
|
|
| 30 | M-197585 | Bushing. |
$6.41 |
|
|
| 31 | M-197584 | Rubber Bushing |
$5.58 |
|
|
| 32 | M-263140 | Electric Fan Resistor 0.23 O |
$89.28 |
|
|
| 33 | M-233535 | Profile |
$2.39 |
|
|
| 34 | M-233735 | Profile |
$2.39 |
|
|
| 35 | M-15699804 | Screw |
$1.75 |
|
|
| 36 | M-102741 | Nut |
$1.67 |
|
|
| 37 | M-12643704 | Washer |
$1.67 |
|
|
| 38 | M-266659 | Rh Lower Radiator Assy |
$55.62 |
|
|
| 39 | M-16043534 | Hex Head Screw M 8X22 |
$2.03 |
|
|
| 40 | M-10519624 | Washer |
$1.67 |
|
|
| 41 | M-12601379 | Washer |
$1.32 |
|
|
| 42 | M-15699904 | Screw. |
$2.03 |
|
|
| 43 | M-268185 | Retaining Clamp |
$1.75 |
|
