Diagram image not available

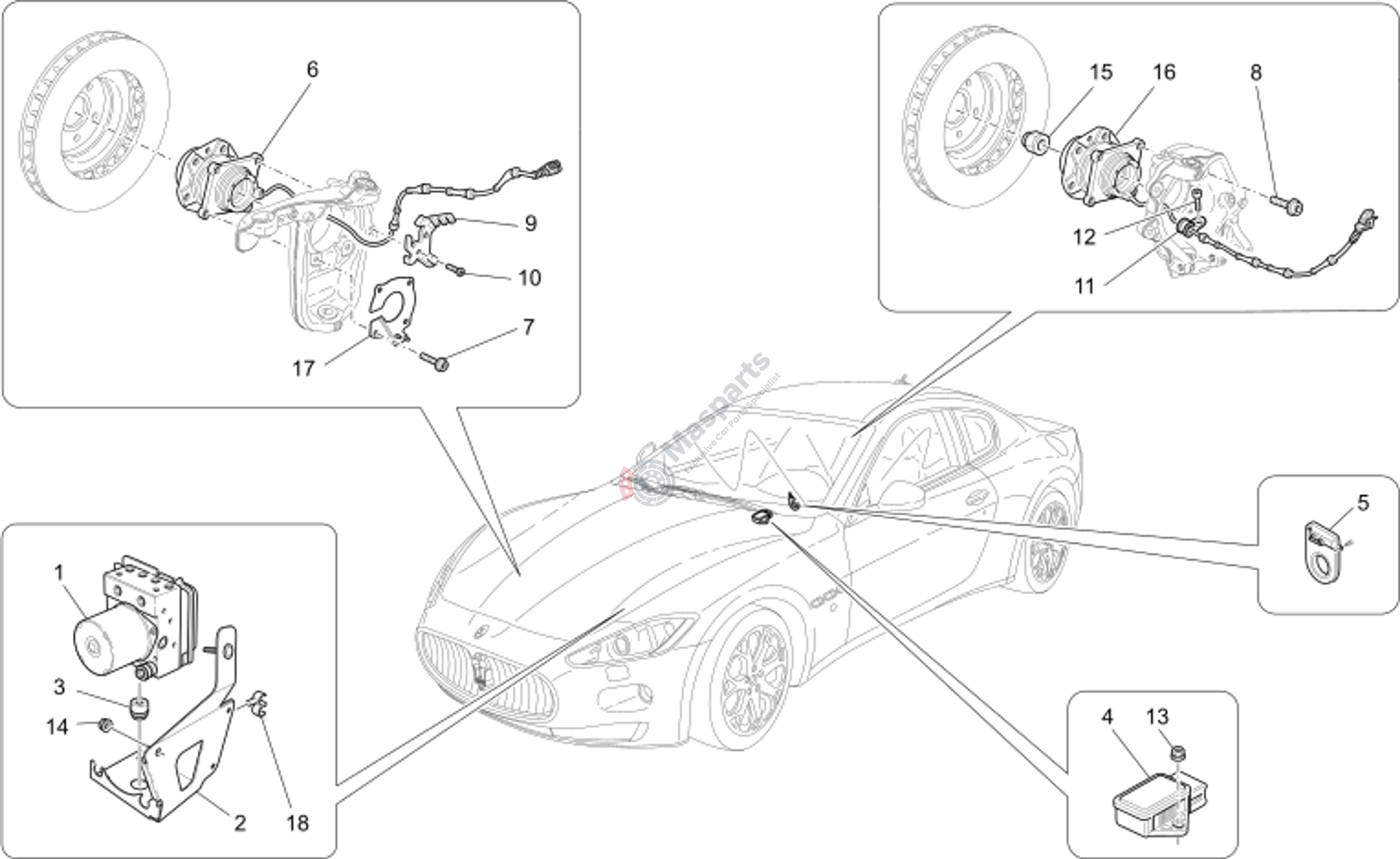

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-265636 | Hydr. Unit Esp8.0 For Spare |
$1,976.11 |
|
|
| 2 | M-207442 | Abs/Asr Hydraulic Group Fixi |
$25.77 |
|
|
| 3 | M-202555 | Resilient Bushing |
$2.39 |
|
|
| 4 | M-317783 | Yaw Sensor |
$264.72 |
|
|
| 5 | M-188171 | Steering Angle Sensor Lws 3. |
$332.35 |
|
|
| 6 | M-197118 | Complete Bearing Wheel |
$791.60 |
|
|
| 7 | M-203135 | Tcie Screw M10X10.25.25X55+W |
$17.05 |
|
|
| 8 | M-190723 | Socket Head Screw M10X10.25. |
$17.77 |
|
|
| 9 | M-197061 | Right-Hand Cables Support Br |
$23.95 |
|
|
| 10 | M-190870 | Screw M6X14 |
$3.93 |
|
|
| 11 | M-10440890 | Pipe Bracket With Sheath |
$1.80 |
|
|
| 12 | M-190870 | Screw M6X14 |
$3.93 |
|
|
| 13 | M-14040611 | Nut |
$1.67 |
|
|
| 14 | M-14040614 | Nut |
$1.67 |
|
|
| 15 | M-203780 | Nut. |
$41.54 |
|
|
| 16 | M-197118 | Complete Bearing Wheel |
$791.60 |
|
|
| 17 | M-218469 | R.H.Bracket |
$91.34 |
|
|
| 18 | M-221444 | Clip |
$2.99 |
|
