Diagram image not available

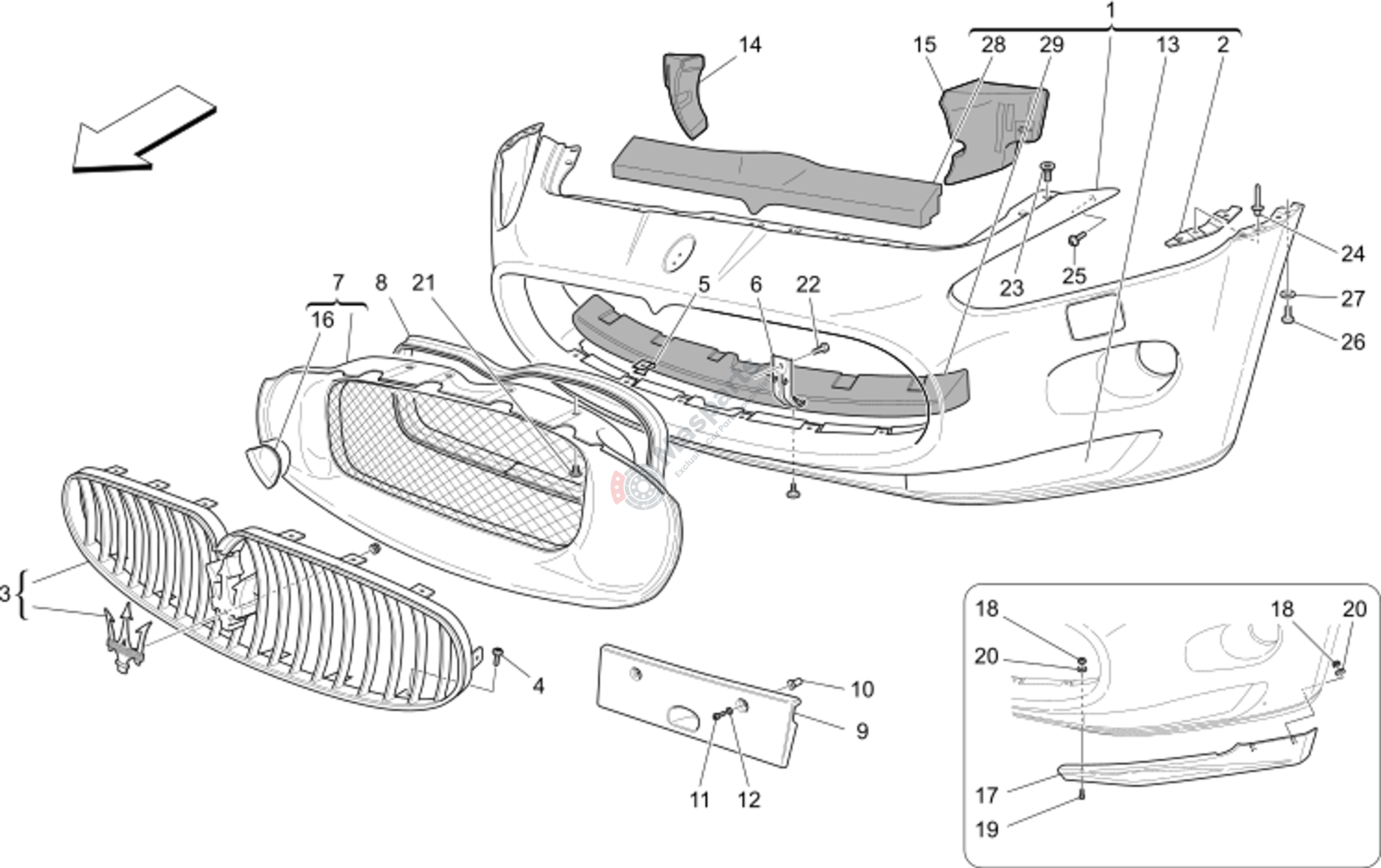

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 2 | M-80252400 | Front Rh Edge Bracket |
$132.28 |
|
|
| 4 | M-83093600 | Screw M5 |
$7.85 |
|
|
| 5 | M-67278400 | Bracket. |
$1.67 |
|
|
| 6 | M-68635500 | Bracket |
$34.07 |
|
|
| 7 | M-80059700 | Air Conveyor |
$353.28 |
|
|
| 8 | M-80059800 | Gasket |
$179.82 |
|
|
| 9 | M-80056900 | Front Plate Frame |
$36.31 |
|
|
| 10 | M-66412700 | Bush |
$2.99 |
|
|
| 11 | M-13274377 | Screw |
$2.03 |
|
|
| 12 | M-12637807 | Washer For Upper Windshie |
$1.33 |
|
|
| 13 | M-980145160 | Front Bumper Cpl Grill Kit |
$352.40 |
|
|
| 16 | M-80791400 | Towing Hook Cap On Conv. |
$41.65 |
|
|
| 18 | M-14039614 | Nut |
$1.24 |
|
|
| 19 | M-67578600 | Screw |
$2.27 |
|
|
| 20 | M-12647778 | Washer |
$2.15 |
|
|
| 21 | M-51810310 | Screw. |
$3.62 |
|
|
| 22 | M-16286024 | Screw. |
$2.22 |
|
|
| 23 | M-51810310 | Screw. |
$3.62 |
|
|
| 24 | M-14642591 | Screw |
$3.57 |
|
|
| 25 | M-69089100 | Screw |
$2.39 |
|
|
| 26 | M-10902524 | Screw |
$1.67 |
|
|
| 27 | M-12643724 | Washer For Bracket On Hea |
$1.33 |
|
|
| 28 | M-80055900 | Upper Central Absorber |
$98.34 |
|
|
| 29 | M-80055800 | Lower Central Absorber |
$108.85 |
|
