Diagram image not available

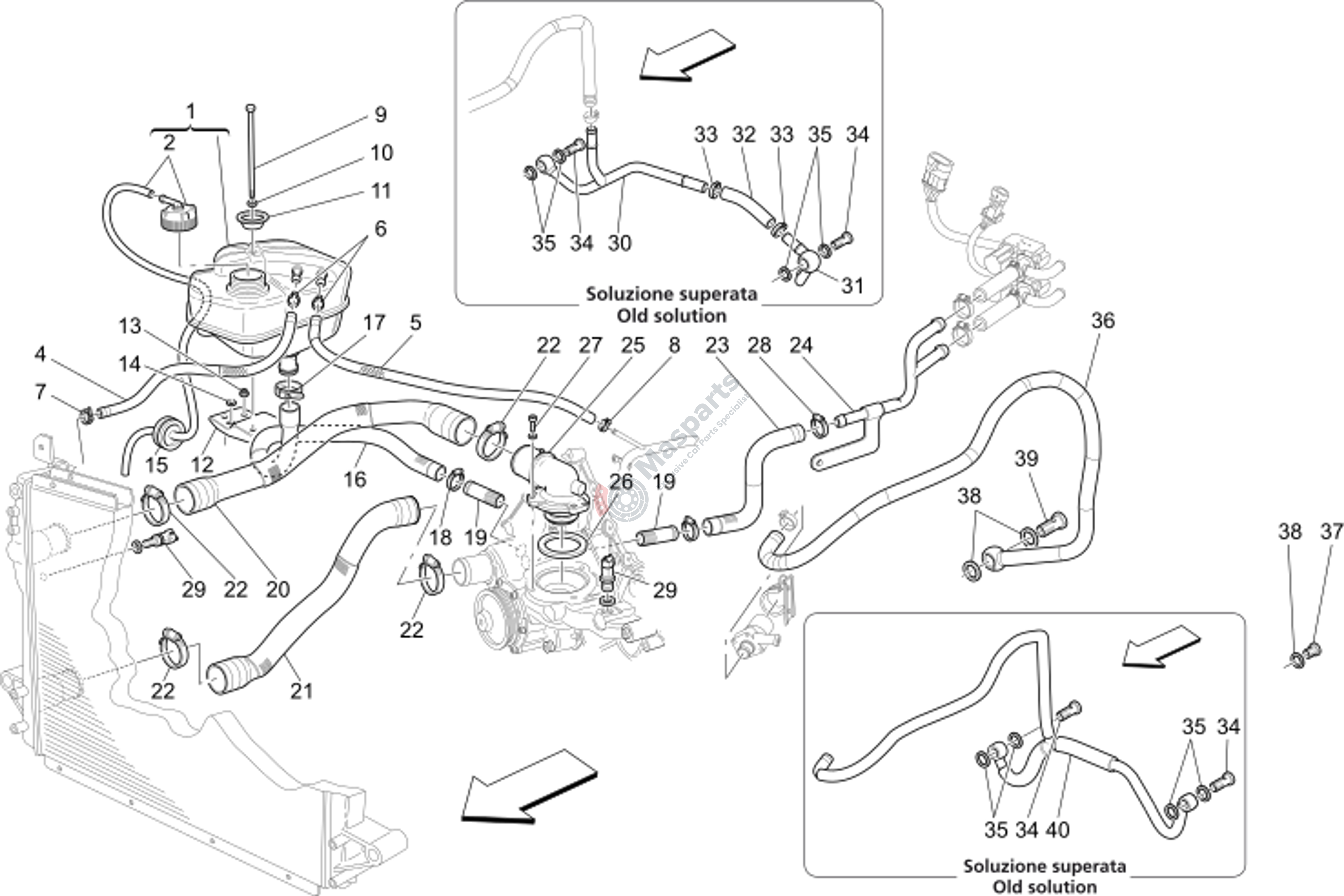

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-296547 | Complete Expansion Tank |
€57,29 |
|
|
| 2 | M-980145477 | Cap For Coolant Tank +C Type |
€16,84 |
|
|
| 4 | M-230562 | Vent Pipe From Expansion Tan |
€21,02 |
|
|
| 5 | M-241141 | Vent Pipe |
€30,09 |
|
|
| 6 | M-13125470 | Collar |
€1,49 |
|
|
| 7 | M-13000190 | Screw Collar |
€0,97 |
|
|
| 8 | M-13000390 | Screw Collar |
€1,56 |
|
|
| 9 | M-60607472 | Screw |
€6,65 |
|
|
| 10 | M-12601274 | Washer |
€1,20 |
|
|
| 11 | M-82404496 | Cup |
€2,67 |
|
|
| 12 | M-228422 | Bracket |
€10,71 |
|
|
| 13 | M-14065921 | Nut |
€1,32 |
|
|
| 14 | M-12646634 | Washer |
€2,55 |
|
|
| 15 | M-228047 | Chock |
€6,05 |
|
|
| 16 | M-227136 | Pipe From Expansion Tank To |
€54,41 |
|
|
| 17 | M-13000590 | Screw Collar |
€3,23 |
|
|
| 18 | M-13000190 | Screw Collar |
€0,97 |
|
|
| 19 | M-228438 | Threaded Union M20X15 |
€5,35 |
|
|
| 20 | M-237593 | Delivery Pipe From Engine To |
€60,03 |
|
|
| 21 | M-237594 | Return Pipe From Radiator To |
€68,07 |
|
|
| 22 | M-13000790 | Screw Collar |
€1,49 |
|
|
| 23 | M-69418200 | Rubber Hose To Pump |
€62,08 |
|
|
| 24 | M-69417100 | Rigid Pipe |
€315,35 |
|
|
| 25 | M-230890 | Thermostat Cover With Press. |
€107,64 |
|
|
| 26 | M-137873 | Gasket Betw. Thermostat And |
€8,15 |
|
|
| 27 | M-231617 | Socket Head Screw With Washe |
€2,13 |
|
|
| 28 | M-13097090 | Elastic Collar |
€3,18 |
|
|
| 29 | M-180137 | Water Temperature Sensor |
€34,39 |
|
|
| 30 | M-240324 | Water Pipe From R.H.Cylinder |
€362,10 |
|
|
| 31 | M-240323 | Water Pipe From L.H.Cylinder |
€320,45 |
|
|
| 32 | M-227489 | Rubber Sleeve D.14.5X21.5 |
€9,02 |
|
|
| 33 | M-178053 | Clamp D.20-2X220.2 |
€3,21 |
|
|
| 34 | M-203787 | Filler Neck M18X1.5 |
€21,45 |
|
|
| 35 | M-10259960 | Gasket 18- 24X 1 |
€0,98 |
|
|
| 36 | M-241253 | Water Pipe From Cylinder Hea |
€87,55 |
|
|
| 37 | M-280597 | Threaded Plug |
€11,78 |
|
|
| 38 | M-10259960 | Gasket 18- 24X 1 |
€0,98 |
|
|
| 39 | M-203787 | Filler Neck M18X1.5 |
€21,45 |
|
|
| 40 | M-240318 | Water Pipe From Cylinder Hea |
€399,50 |
|
