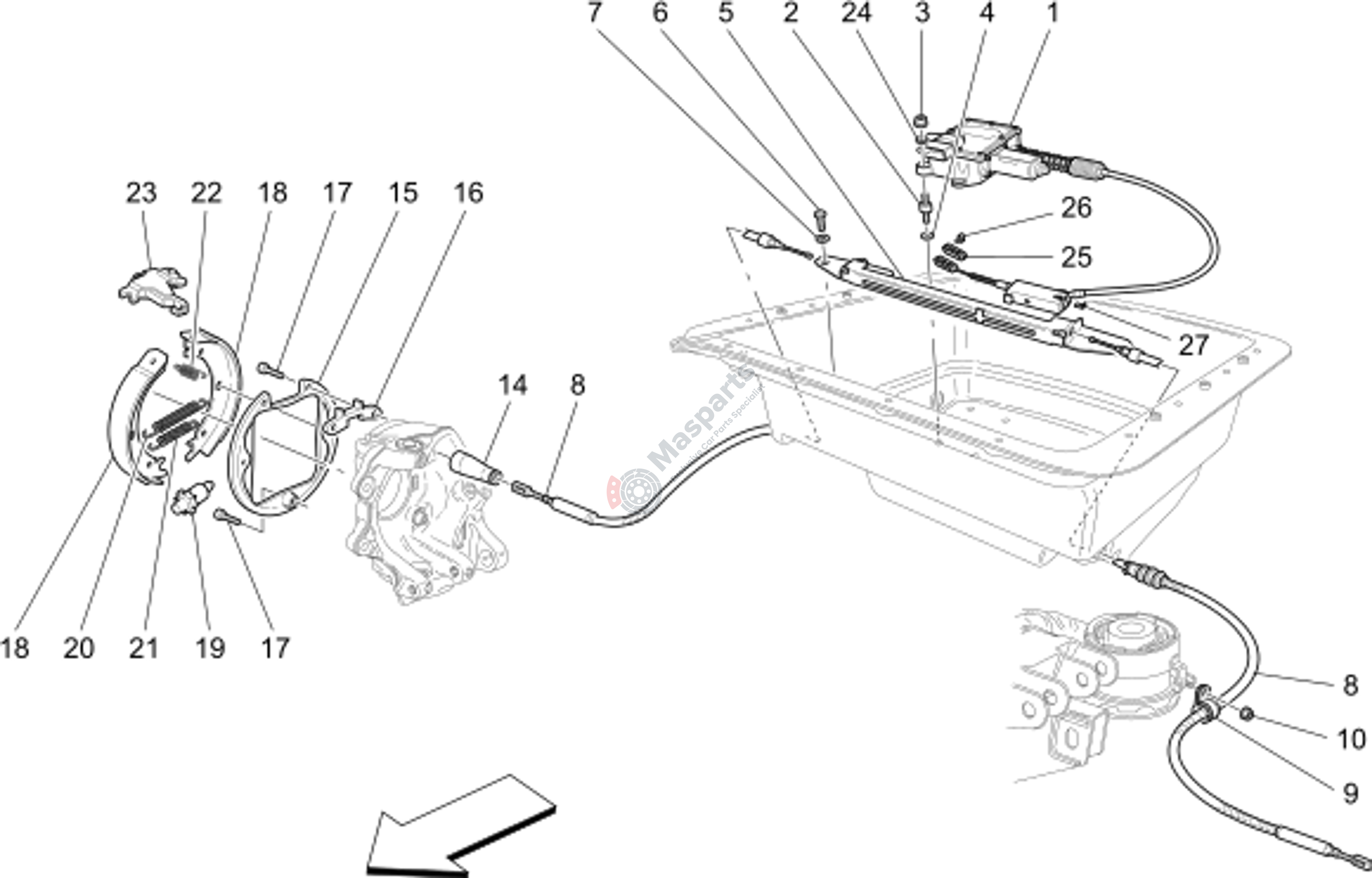

Diagram image not available
The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-281371 | Cpl Electronic Actuator Epb3 |
$2,508.64 |
|
|
| 2 | M-239829 | Pad |
$9.56 |
|
|
| 3 | M-14059214 | Nut |
$1.29 |
|
|
| 4 | M-10523424 | Washer |
$2.97 |
|
|
| 5 | M-224010 | Bracket |
$175.00 |
|
|
| 6 | M-16043124 | Screw |
$1.74 |
|
|
| 7 | M-12601374 | Washer |
$1.37 |
|
|
| 8 | M-221901 | Hand Brake Output Cable |
$371.34 |
|
|
| 9 | M-10441290 | Clamp With Rubber Pad |
$7.98 |
|
|
| 10 | M-14058411 | Nut |
$1.74 |
|
|
| 14 | M-143938 | Stop Sheath |
$26.30 |
|
|
| 15 | M-186574 | Brake Shoe Housing |
$75.27 |
|
|
| 16 | M-233371 | Reaction Small Plate D.I.H. |
$66.91 |
|
|
| 17 | M-190870 | Screw M6X14 |
$4.08 |
|
|
| 18 | M-248418 | Hand Brake Shoe With Lining |
$136.89 |
|
|
| 19 | M-186572 | Adjustment Device |
$104.57 |
|
|
| 20 | M-190776 | Long Traction Spring |
$25.71 |
|
|
| 21 | M-190779 | Short Traction Spring |
$69.64 |
|
|
| 22 | M-190780 | Fastening Spring |
$7.12 |
|
|
| 23 | M-980145862 | Parking Brake Lever |
$165.34 |
|
|
| 24 | M-233582 | Washer |
$1.37 |
|
|
| 25 | M-245964 | Cage |
$10.53 |
|
|
| 26 | M-245162 | Clip |
$4.60 |
|
|
| 27 | M-239924 | Retaining Clip |
$4.05 |
|
