Diagram image not available

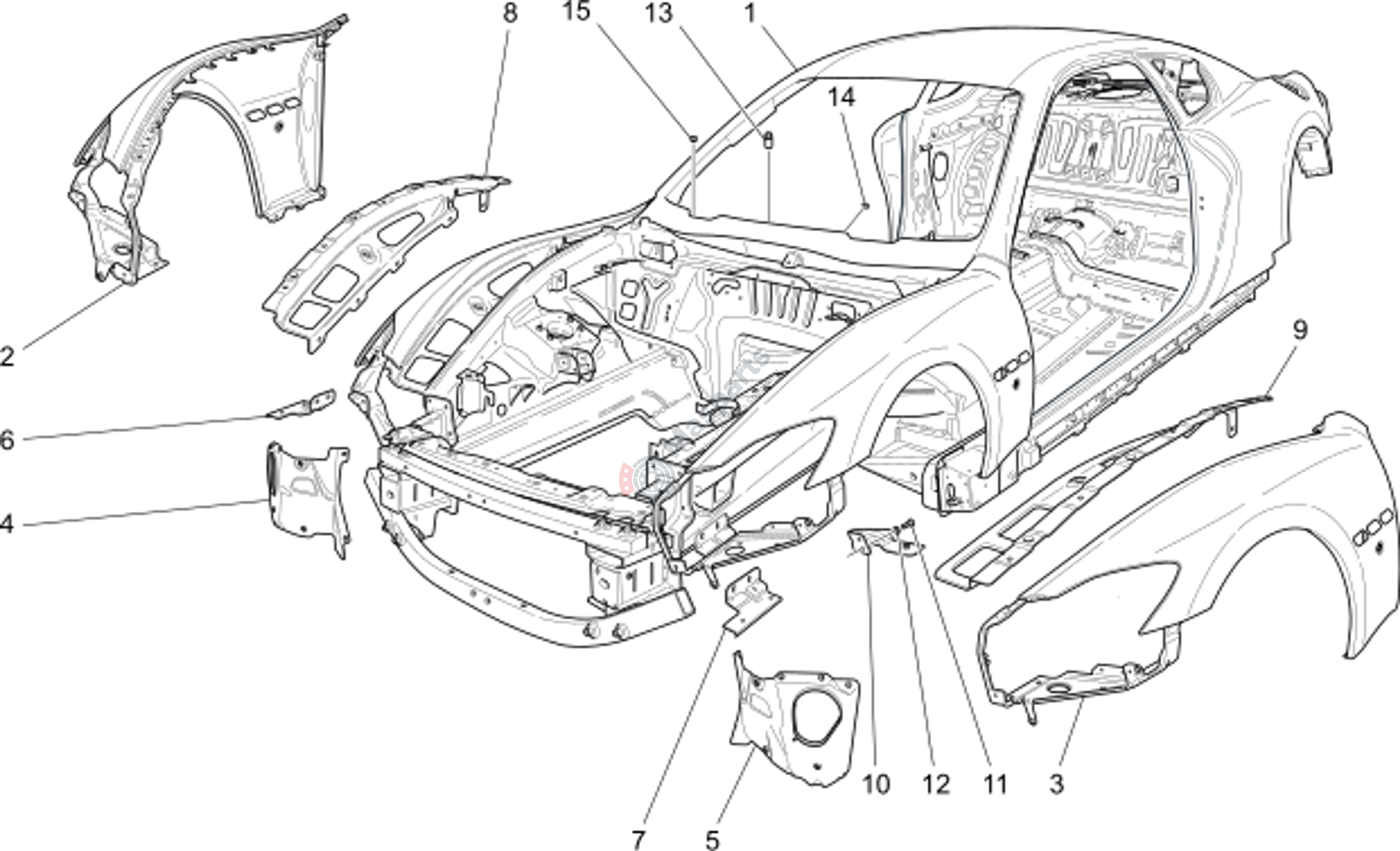

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-980145185 | Complete Bodywork Frame |
$29,474.70 |
|
|
| 2 | M-980145037 | Cpl Front Rh Mudguard |
$3,213.70 |
|
|
| 3 | M-980145038 | Cpl Front Lh Mudguard |
$3,213.70 |
|
|
| 4 | M-68446600 | R.H.Headlight Support Bracke |
$208.05 |
|
|
| 5 | M-68446700 | L.H.Headlight Support Bracke |
$208.05 |
|
|
| 6 | M-68737000 | Rh Headlight Base Cpl Connec |
$121.19 |
|
|
| 7 | M-68737100 | Lh Headlight Base Cpl Connec |
$121.19 |
|
|
| 8 | M-66883300 | Rh Bracket For Front Long.Mu |
$76.44 |
|
|
| 9 | M-66883400 | Cpl Lh Bracket For Long.Mudg |
$76.44 |
|
|
| 10 | M-68224200 | R.H.Bracket |
$28.80 |
|
|
| 11 | M-11612324 | Screw For Passenger Side |
$2.97 |
|
|
| 12 | M-14498804 | Washer. |
$1.37 |
|
|
| 13 | M-67265200 | Bushing |
$8.19 |
|
|
| 14 | M-14673080 | Plug |
$1.74 |
|
|
| 15 | M-14506887 | Plug |
$1.74 |
|
