Diagram image not available

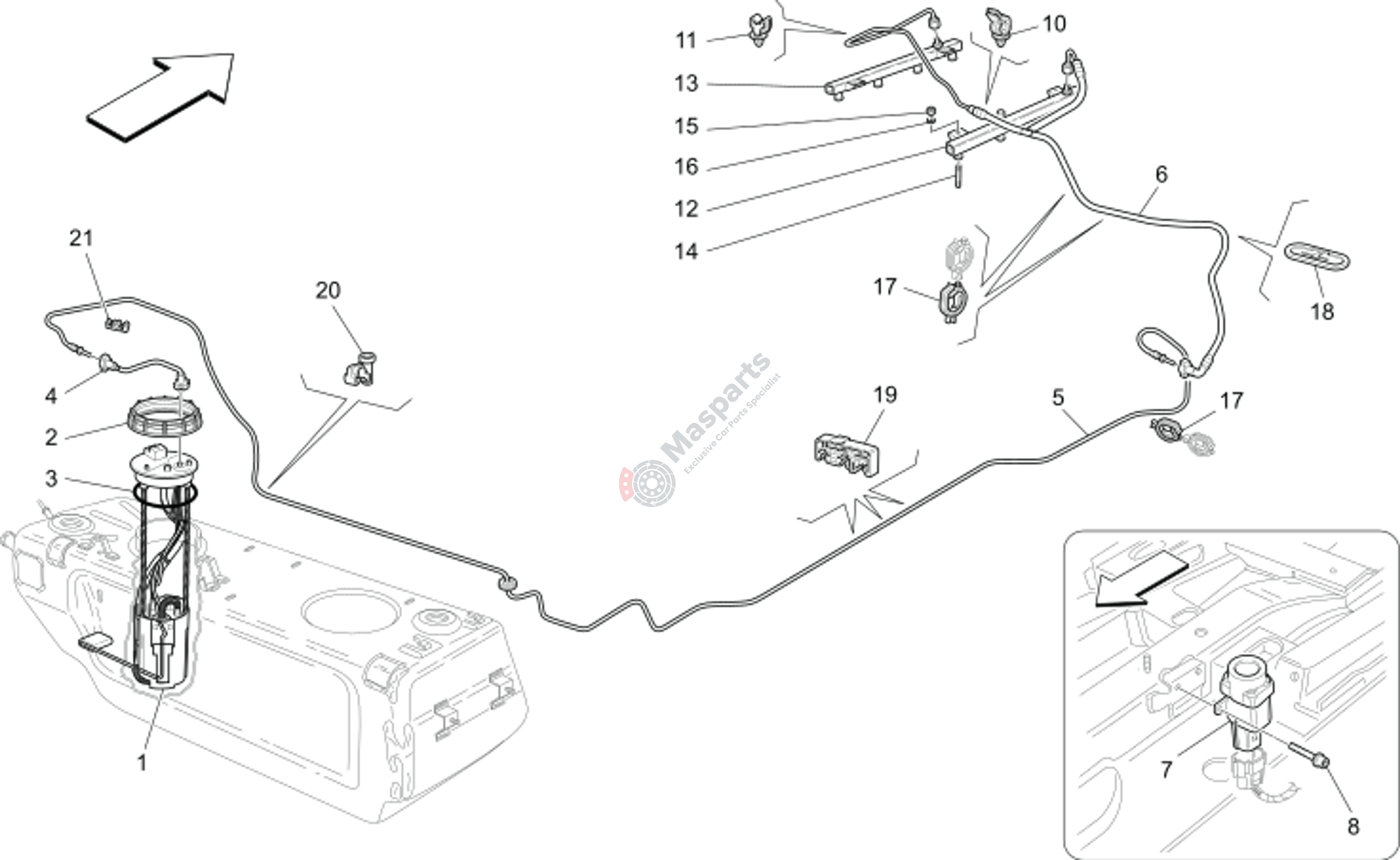

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-214369 | Complete Fuel Pump |
$497.05 |
|
|
| 2 | M-181682 | Pump Fastening Ring Nut |
$31.88 |
|
|
| 3 | M-181681 | Pump Fastening Ring Nut Gask |
$29.09 |
|
|
| 4 | M-219391 | Fuel Deliv. Pipe (Pump Wir.H |
$34.72 |
|
|
| 5 | M-228736 | Fuel Pipe From Pump To Conne |
$124.75 |
|
|
| 6 | M-256139 | Fuel Delivery Tube From Conn |
$224.16 |
|
|
| 7 | M-163675 | Inertial Switch |
$33.81 |
|
|
| 8 | M-13355424 | Screw |
$30.38 |
|
|
| 10 | M-226603 | Pipe Retaining Clip D.8 |
$2.44 |
|
|
| 11 | M-198271 | Clip. |
$3.05 |
|
|
| 12 | M-215338 | Fuel Pipe With Injectors |
$1,202.67 |
|
|
| 13 | M-215337 | Fuel Pipe With Injectors |
$1,102.28 |
|
|
| 14 | M-13516824 | Stud 8X12 Stem 20 M8_2 |
$11.52 |
|
|
| 15 | M-16102314 | Nut |
$1.52 |
|
|
| 16 | M-11198074 | Tapered Rubber Washer D8.5-1 |
$1.35 |
|
|
| 17 | M-191907 | Clip |
$4.51 |
|
|
| 18 | M-221727 | Gasket |
$6.65 |
|
|
| 19 | M-233484 | Clip |
$10.74 |
|
|
| 20 | M-201426 | Clip |
$5.70 |
|
|
| 21 | M-238072 | Clip |
$5.12 |
|
