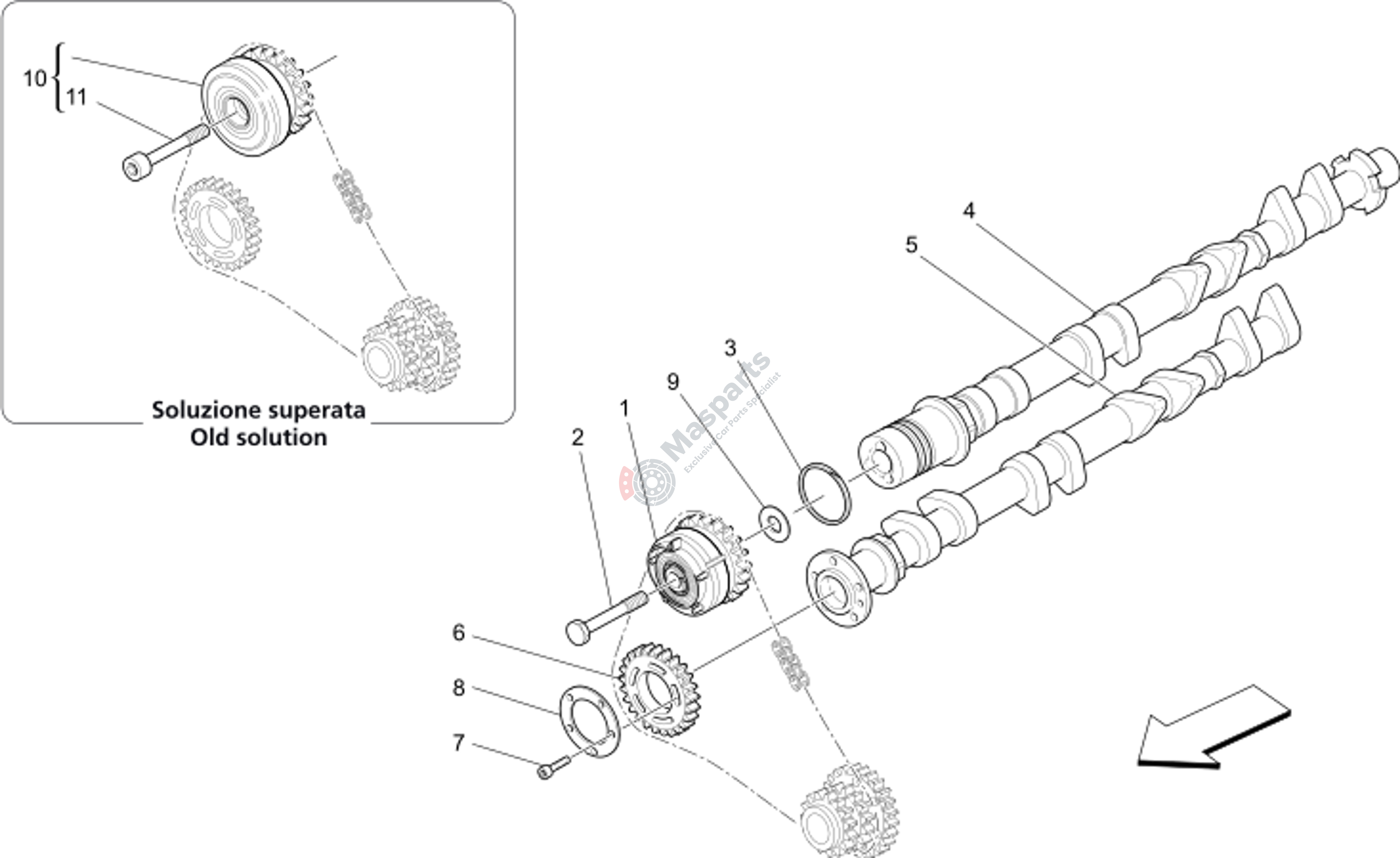

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-248019 | Timing Variator |
$658.31 |
|
|
| 2 | M-254892 | Variator Screw Ina M14X1.5 L |
$30.22 |
|
|
| 3 | M-246965 | Sealing Ring |
$13.04 |
|
|
| 4 | M-258479 | Rh Intake Camshaft |
$3,249.42 |
|
|
| 5 | M-212497 | Rh Exhaust Camshaft |
$2,141.46 |
|
|
| 6 | M-199756 | Toothed Wheel For Camshaft |
$276.25 |
|
|
| 7 | M-14305170 | Socket Head Screw M 6X 12 |
$3.92 |
|
|
| 8 | M-199757 | 5 Holes Washer For Spur Gear |
$15.41 |
|
|
| 9 | M-240559 | Washer |
$36.47 |
|
|
| 10 | M-253625 | Intake Timing Variator |
$763.13 |
|
|
| 11 | M-224701 | Variator Screw Vvt M14X1.5 L |
$69.88 |
|
