Diagram image not available

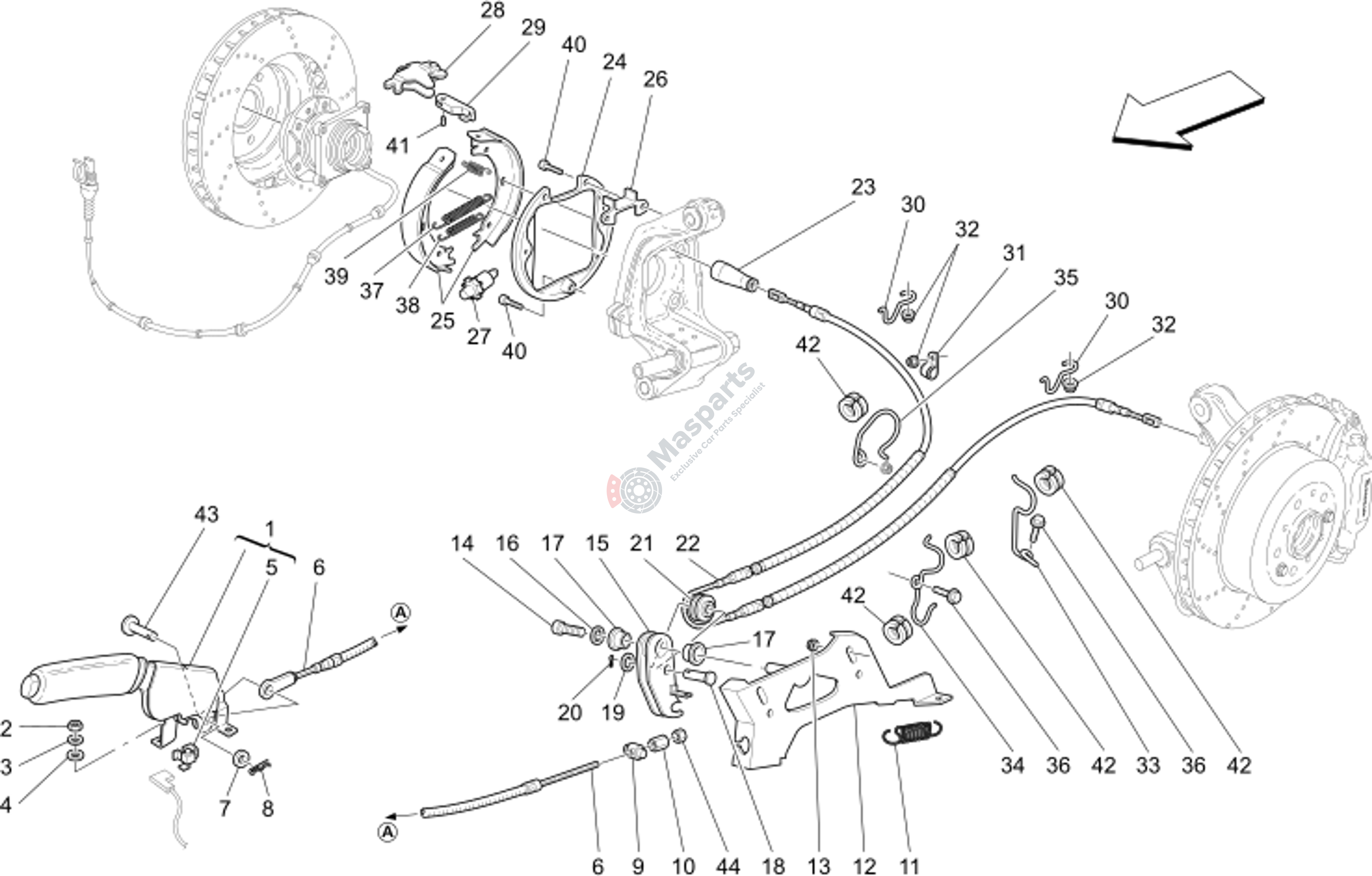

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-206732 | Cpl Parking Brake Lever |
$450.43 |
|
|
| 2 | M-16104421 | Nylon Stop Hex. Nut M8 |
$1.54 |
|
|
| 3 | M-14496521 | Split Washer D. 8.40-17X1 |
$1.54 |
|
|
| 4 | M-12628924 | Split Washer D.2 8.4 -25X 4 |
$2.65 |
|
|
| 5 | M-176118 | Parking Brake Micro Lever As |
$66.90 |
|
|
| 6 | M-208375 | Parking Brake Front Cable |
$77.38 |
|
|
| 7 | M-12646604 | Washer |
$1.75 |
|
|
| 8 | M-10734101 | Split Pin D. 16X12 |
$6.41 |
|
|
| 9 | M-208466 | Cable Adjustment Pawl |
$8.35 |
|
|
| 12 | M-208426 | Parking Brake Control Bracke |
$208.05 |
|
|
| 13 | M-14040715 | S-Lock.Hex.Nut With Unlos.Ta |
$1.79 |
|
|
| 14 | M-14306224 | Screw |
$2.11 |
|
|
| 16 | M-10519601 | Split Washer.D. 8.15-17 X 2 |
$1.36 |
|
|
| 17 | M-175729 | S-Lubricat. Flanged Bushing |
$9.17 |
|
|
| 18 | M-10050811 | Flat Head Pin D. 8X22 With H |
$7.75 |
|
|
| 19 | M-10519601 | Split Washer.D. 8.15-17 X 2 |
$1.36 |
|
|
| 20 | M-10734301 | Split Pin D. 2 X18 |
$0.88 |
|
|
| 21 | M-188587 | Transm.Pulley For Park.Brake |
$15.61 |
|
|
| 22 | M-206724 | Parking Brake Rear Cable |
$103.26 |
|
|
| 23 | M-143938 | Stop Sheath |
$26.27 |
|
|
| 24 | M-186574 | Brake Shoe Housing |
$75.19 |
|
|
| 25 | M-248418 | Hand Brake Shoe With Lining |
$136.74 |
|
|
| 26 | M-190814 | Reaction Small Plate D.I.H. |
$73.01 |
|
|
| 27 | M-186572 | Adjustment Device |
$104.46 |
|
|
| 28 | M-190782 | Parking Brake Lever |
$35.40 |
|
|
| 30 | M-186933 | Spring For Rh Side Brake Cab |
$2.05 |
|
|
| 31 | M-10441190 | Bracket With Sheath |
$1.13 |
|
|
| 32 | M-14058411 | Nut |
$1.74 |
|
|
| 34 | M-204536 | Spring. |
$6.81 |
|
|
| 35 | M-204537 | Spring. |
$4.25 |
|
|
| 36 | M-11730624 | Screw For Front Hood Safe |
$2.48 |
|
|
| 37 | M-190776 | Long Traction Spring |
$25.68 |
|
|
| 38 | M-190779 | Short Traction Spring |
$69.57 |
|
|
| 39 | M-190780 | Fastening Spring |
$7.11 |
|
|
| 40 | M-190870 | Screw M6X14 |
$4.08 |
|
|
| 41 | M-101282 | Pin For Parking Brake Shoe |
$59.46 |
|
|
| 42 | M-184519 | Rubber Pad |
$2.45 |
|
|
| 43 | M-200774 | Pin Fastening H.Brake Front |
$8.62 |
|
|
| 44 | M-16100815 | Hex.Nut M8X6.5 |
$1.36 |
|
