The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.

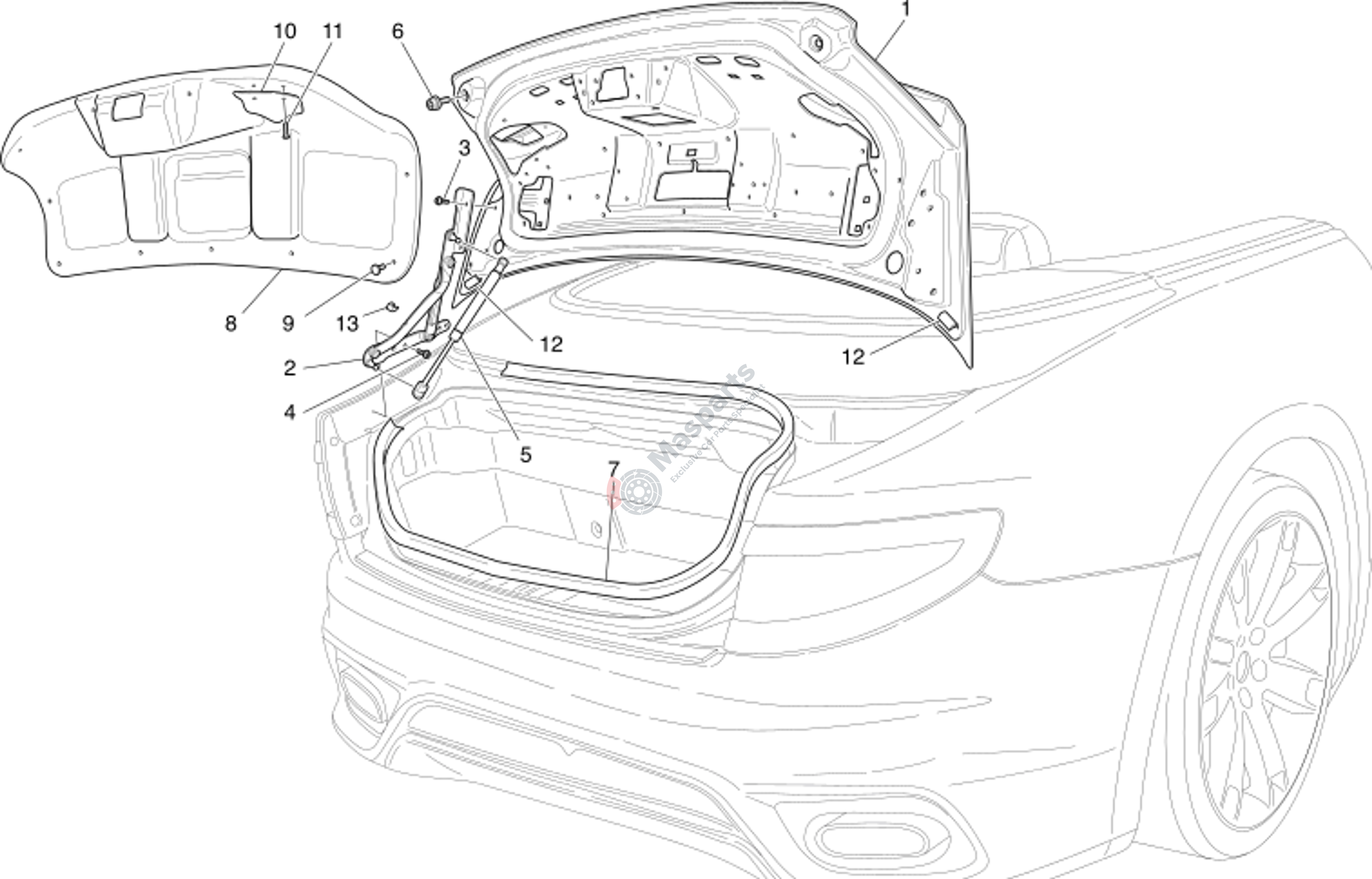

| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-89186300 | Rear Hood Bonnet |
$1,884.03 |
|
|
| 2 | M-81797400 | Boot Hinge |
$153.00 |
|
|
| 3 | M-67079400 | Special Socket Head Screw M6 |
$13.22 |
|
|
| 4 | M-67079400 | Special Socket Head Screw M6 |
$13.22 |
|
|
| 5 | M-67726100 | Gas Spring |
$43.38 |
|
|
| 6 | M-83410300 | Rear Hood Bonnet Block |
$16.43 |
|
|
| 7 | M-83439100 | Gasket |
$124.71 |
|
|
| 9 | M-80676100 | Beige Rivet |
$2.18 |
|
|
| 10 | M-67957500 | Handle. |
$8.01 |
|
|
| 11 | M-14440834 | Screw. |
$1.82 |
|
|
| 12 | M-80891500 | Pad |
$39.50 |
|
|
| 13 | M-67199000 | Rubber. |
$2.45 |
|
