Diagram image not available

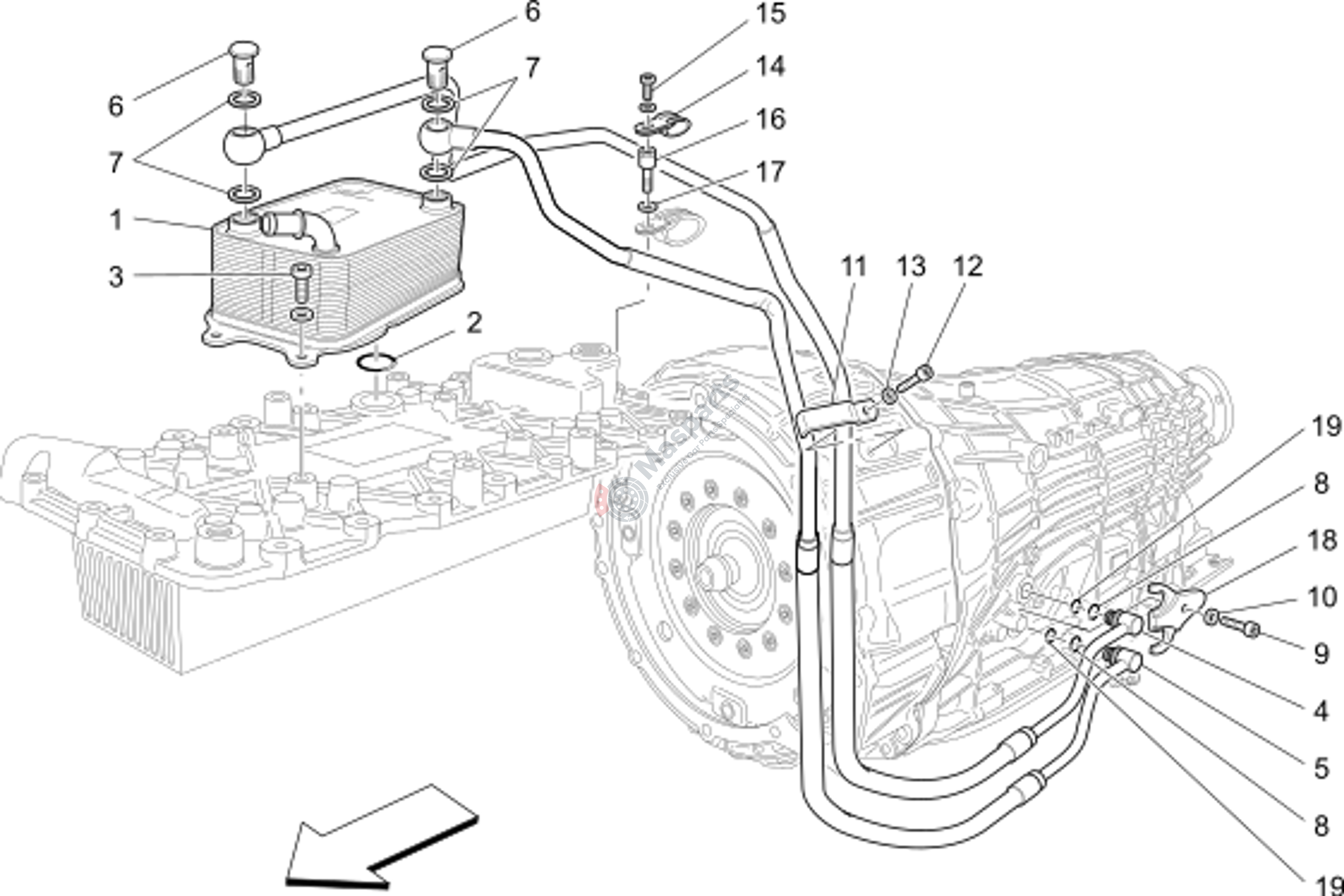

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-225800 | Water-Oil Exchanger For Aut. |
$332.52 |
|
|
| 2 | M-223553 | O-Ring D. 15.47X3 |
$2.42 |
|
|
| 3 | M-231617 | Socket Head Screw With Washe |
$2.42 |
|
|
| 4 | M-236427 | Exchanger Oil Inlet Pipe |
$197.58 |
|
|
| 5 | M-236429 | Oil Outlet Pipe From Exchang |
$213.97 |
|
|
| 6 | M-184727 | Union |
$11.95 |
|
|
| 7 | M-872137 | Guarnizione D.167-26X15 |
$18.78 |
|
|
| 8 | M-14457081 | Gasket |
$2.09 |
|
|
| 9 | M-14814434 | Screw |
$2.05 |
|
|
| 10 | M-12604474 | Washer |
$1.34 |
|
|
| 11 | M-224699 | Bracket |
$4.47 |
|
|
| 12 | M-14305124 | Screw For Outer Mirror Ga |
$1.69 |
|
|
| 13 | M-11197774 | Washer |
$2.20 |
|
|
| 14 | M-10441990 | Bracket With Sheath |
$1.11 |
|
|
| 15 | M-233600 | Screw |
$2.31 |
|
|
| 16 | M-232777 | Stud M6X1 H15.5 |
$10.62 |
|
|
| 17 | M-11197774 | Washer |
$2.20 |
|
|
| 18 | M-241161 | Fork |
$21.39 |
|
|
| 19 | M-137192 | O Ring Gasket |
$1.69 |
|
