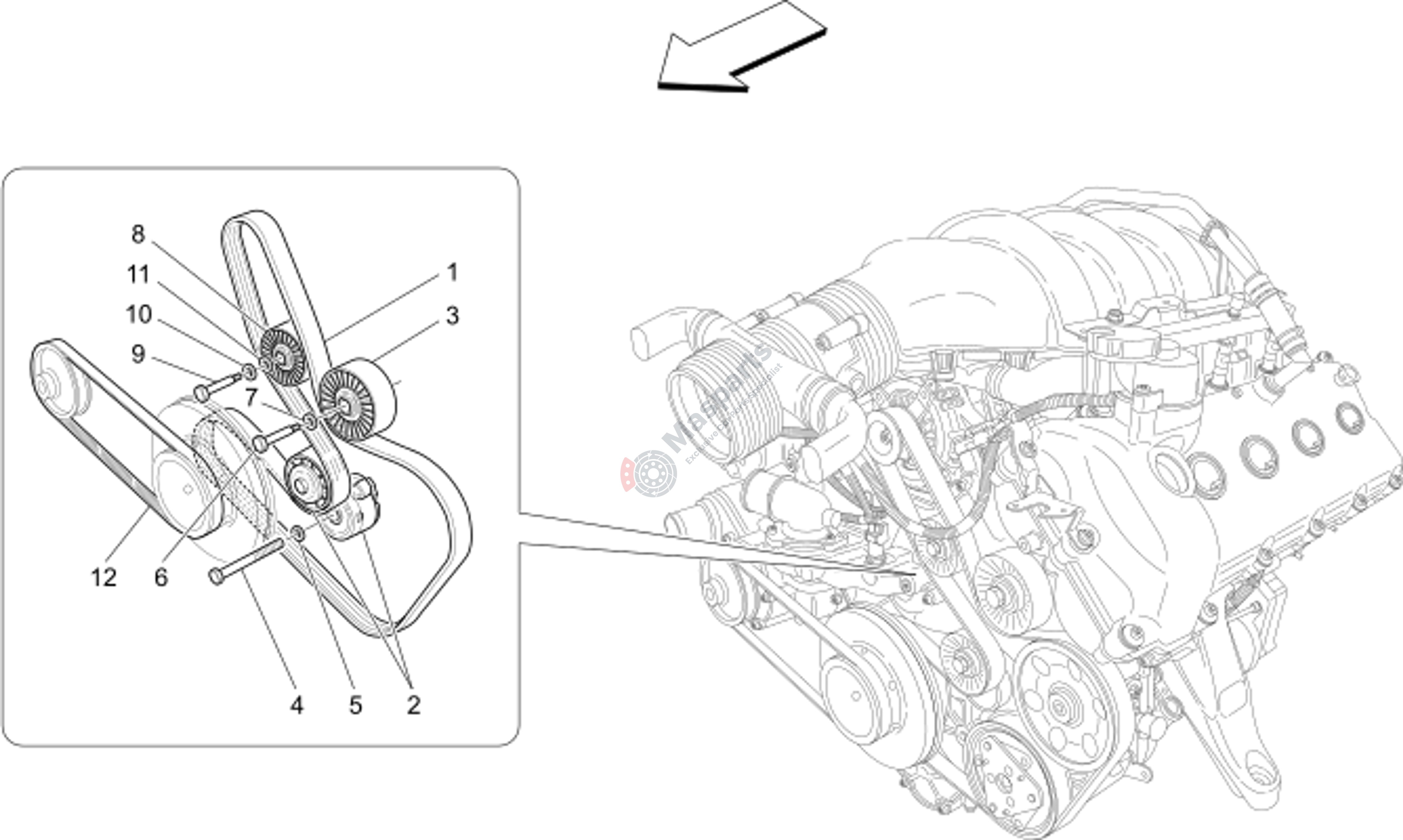

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-239616 | Belt Type Dayco Pv-K A 6 |
€41,78 |
|
|
| 2 | M-271881 | Belt Tensioner |
€86,85 |
|
|
| 3 | M-227894 | Belt Tensioner Pulley |
€81,18 |
|
|
| 4 | M-16044431 | Hex Head Screw M 8X60 Znt/De |
€10,40 |
|
|
| 5 | M-11193874 | Washer |
€1,15 |
|
|
| 6 | M-11343821 | Hex Head Screw M 10X1.25X |
€10,21 |
|
|
| 7 | M-10569474 | Split Washer D. 10 -16 X2.5 |
€3,13 |
|
|
| 8 | M-226205 | Belt Tensioner Pulley With B |
€30,77 |
|
|
| 9 | M-16043324 | Screw |
€1,46 |
|
|
| 10 | M-11193974 | Tapered Rubber Washer 8.4-2 |
€1,46 |
|
|
| 11 | M-12647024 | Washer For Radiator Assem |
€2,50 |
|
|
| 12 | M-214271 | Water Pump Drive Belt |
€20,40 |
|
