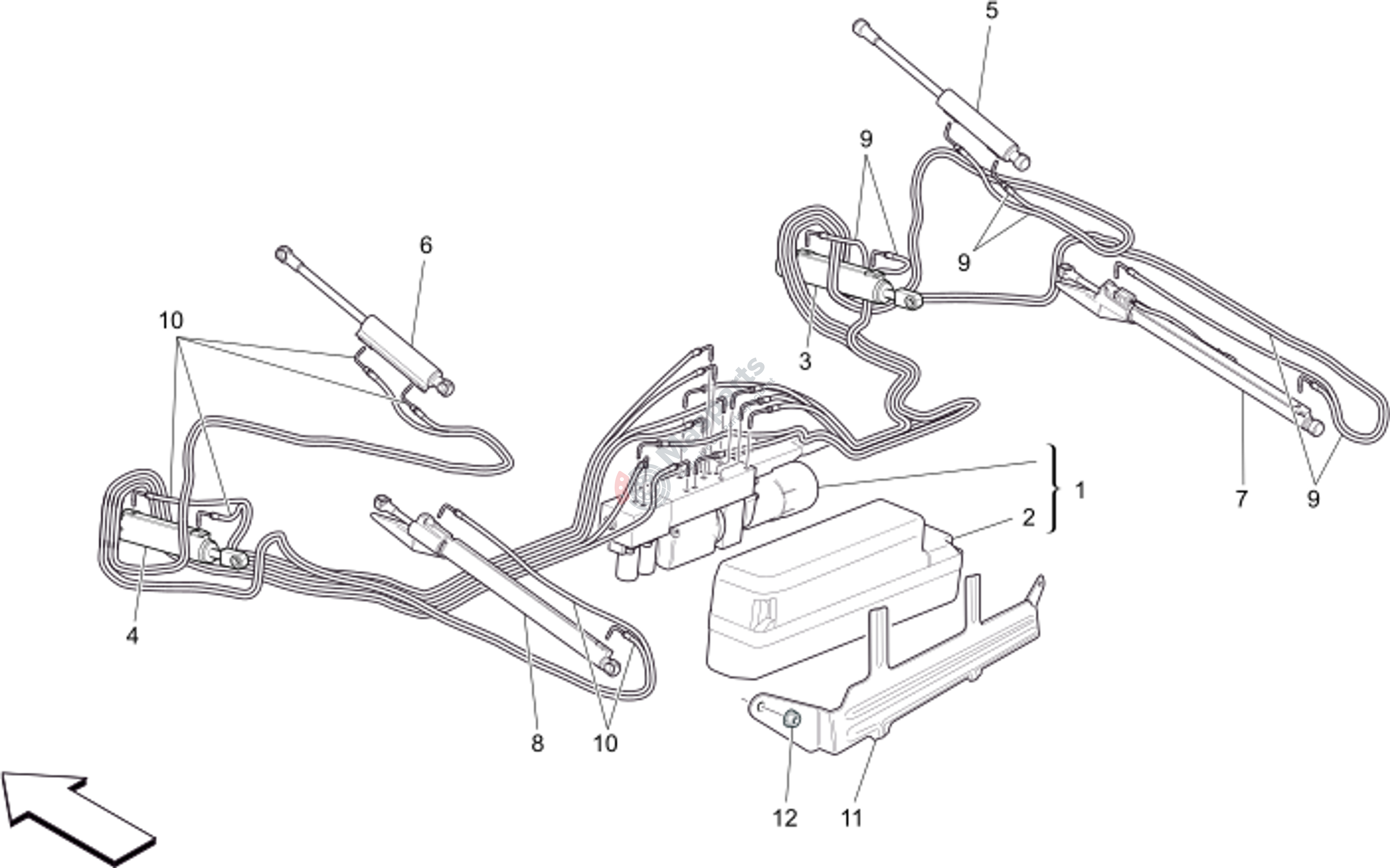

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-83084000 | Hydraulic Pump |
€5.372,85 |
|
|
| 2 | M-83084100 | Hyd.Pump Cover |
€345,10 |
|
|
| 3 | M-83084200 | Rh Hydraulic Cylinder |
€485,35 |
|
|
| 4 | M-83084300 | Lh Hydraulic Cylinder |
€619,65 |
|
|
| 5 | M-83084400 | Rh Hydraulic Cylinder |
€759,75 |
|
|
| 6 | M-83084500 | Lh Hydraulic Cylinder |
€765,00 |
|
|
| 7 | M-84235400 | Hydraulic Cylinder (Tonneau |
€1.324,30 |
|
|
| 8 | M-83084700 | Hydraulic Cylinder (Tonneau |
€895,90 |
|
|
| 9 | M-83468700 | Pipe Assembly |
€593,30 |
|
|
| 10 | M-83468800 | Pipe Assembly |
€518,50 |
|
|
| 11 | M-82241700 | Bracket |
€25,67 |
|
|
| 12 | M-14059217 | Nut For Antievaporation C |
€1,78 |
|
