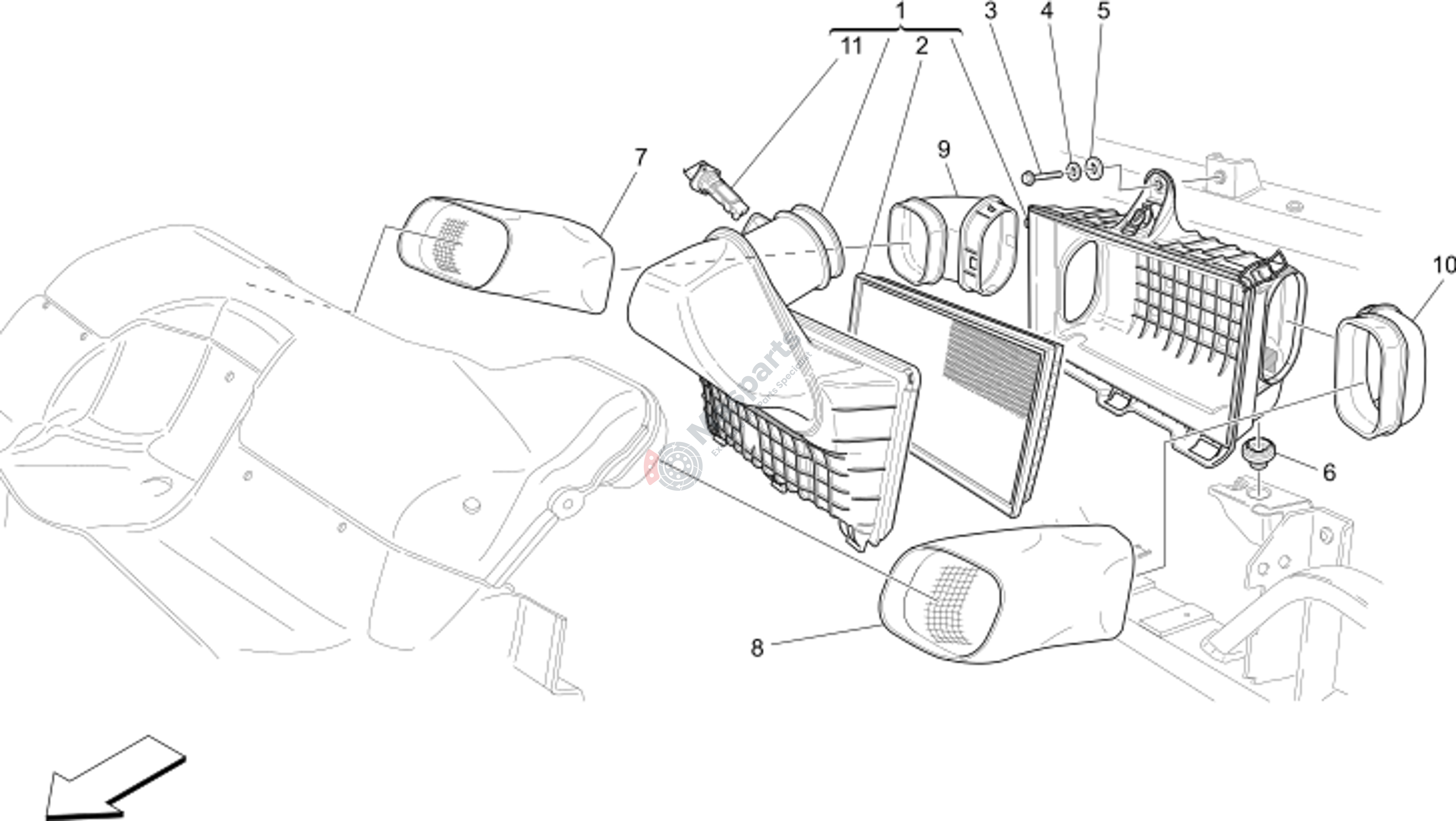

Diagram image not available
The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-232607 | Complete Air Filter Box |
$199.51 |
|
|
| 2 | M-205468 | Air Filter Element |
$101.20 |
|
|
| 3 | M-10903024 | Screw. |
$1.69 |
|
|
| 4 | M-12601274 | Washer |
$1.36 |
|
|
| 5 | M-12643724 | Washer For Bracket On Hea |
$1.34 |
|
|
| 6 | M-199213 | Resilient Bushing. |
$1.70 |
|
|
| 7 | M-299637 | R.H. Air Intake Pipe |
$64.29 |
|
|
| 9 | M-210430 | R.H. Ducting |
$33.94 |
|
|
| 10 | M-210431 | L.H. Ducting |
$106.02 |
|
|
| 11 | M-237886 | Mass Flow Air Sensor |
$121.89 |
|
