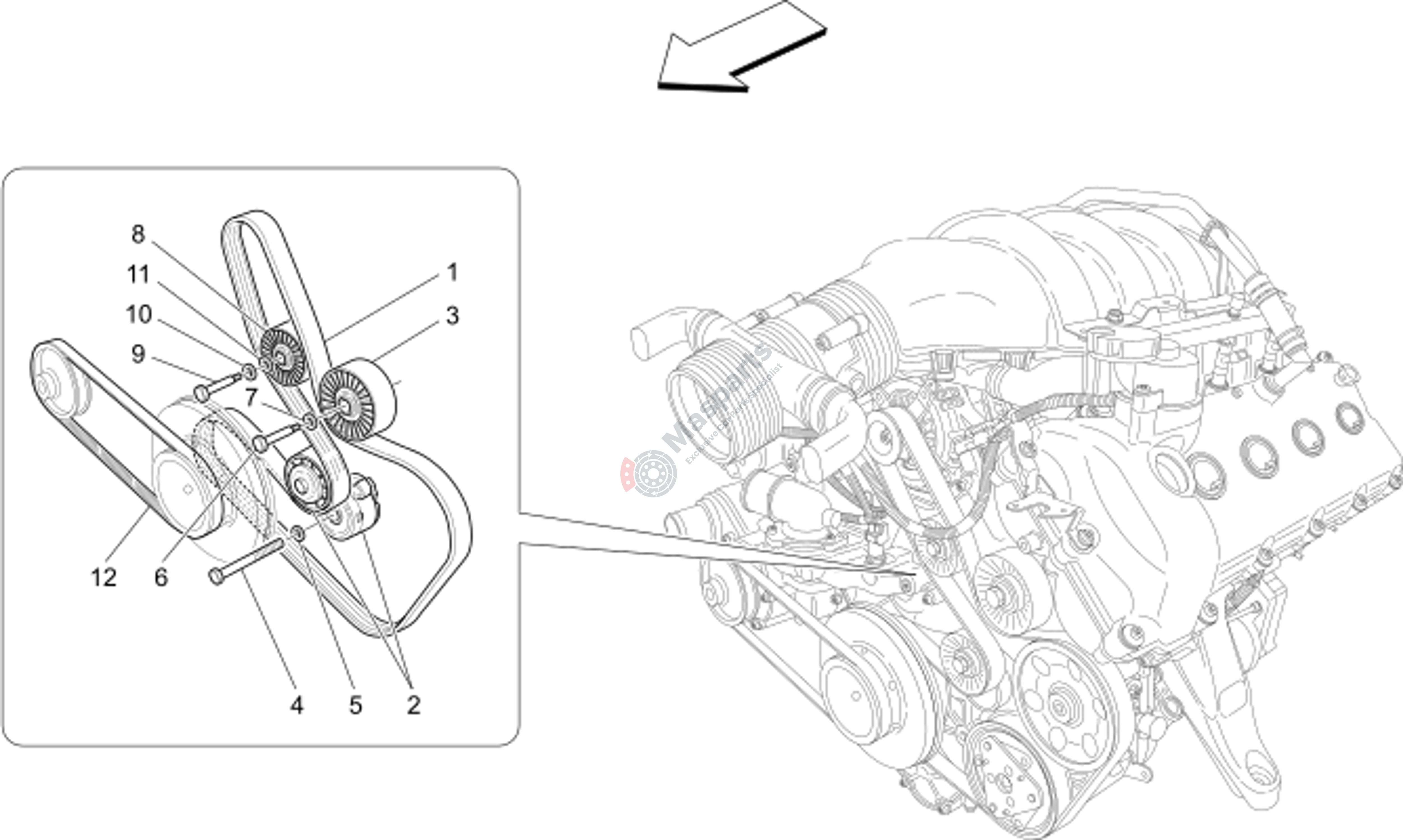

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-239616 | Belt Type Dayco Pv-K A 6 |
$48.22 |
|
|
| 2 | M-271881 | Belt Tensioner |
$100.94 |
|
|
| 3 | M-227894 | Belt Tensioner Pulley |
$93.66 |
|
|
| 4 | M-16044431 | Hex Head Screw M 8X60 Znt/De |
$12.00 |
|
|
| 5 | M-11193874 | Washer |
$1.34 |
|
|
| 6 | M-11343821 | Hex Head Screw M 10X1.25X |
$11.79 |
|
|
| 7 | M-10569474 | Split Washer D. 10 -16 X2.5 |
$3.61 |
|
|
| 8 | M-226205 | Belt Tensioner Pulley With B |
$35.94 |
|
|
| 9 | M-16043324 | Screw |
$1.69 |
|
|
| 10 | M-11193974 | Tapered Rubber Washer 8.4-2 |
$1.69 |
|
|
| 11 | M-12647024 | Washer For Radiator Assem |
$2.89 |
|
|
| 12 | M-214271 | Water Pump Drive Belt |
$24.29 |
|
