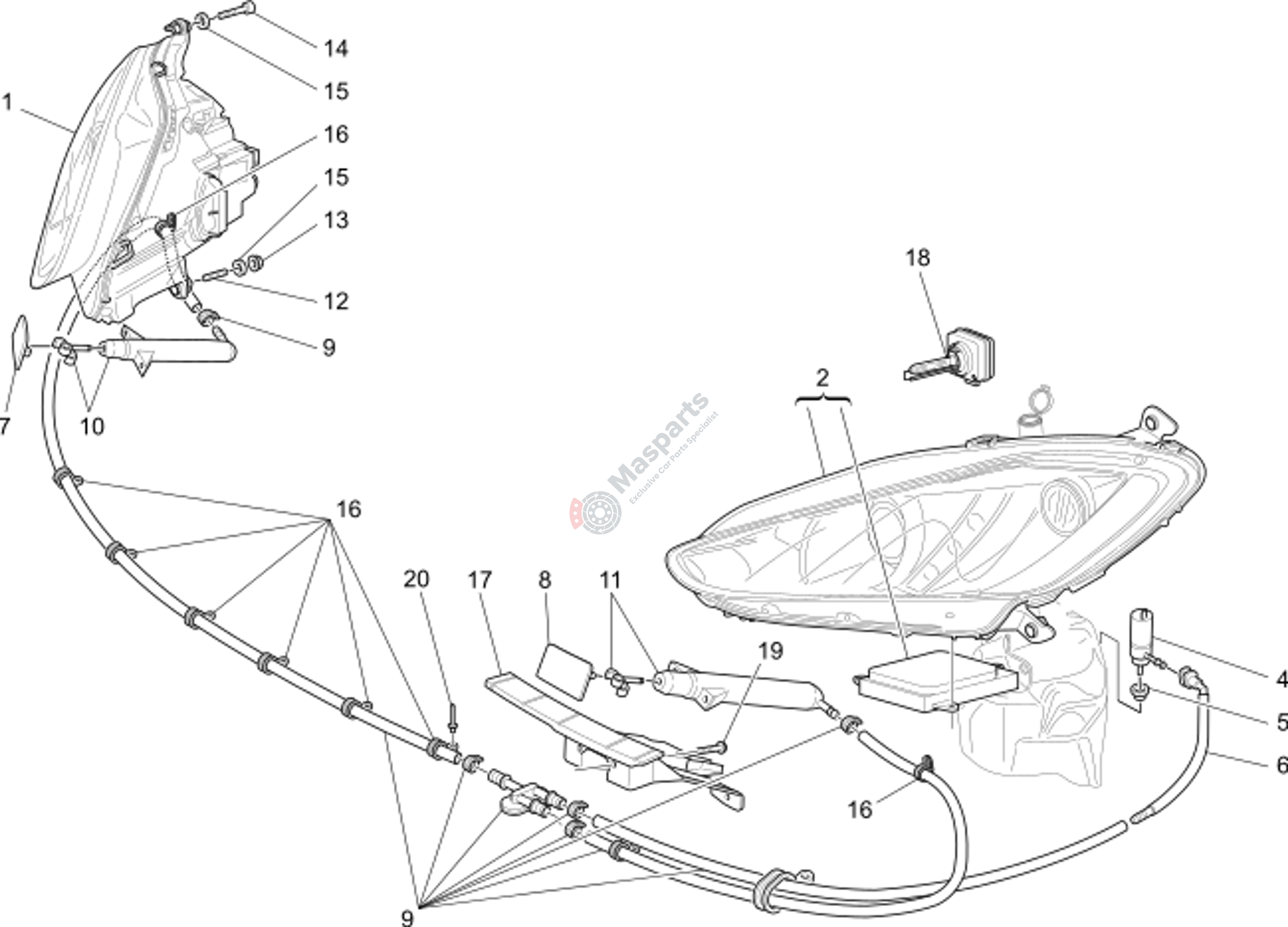

Diagram image not available
The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-294590 | R.H. Front Headlight Silver |
$2,400.60 |
|
|
| 2 | M-294591 | L.H. Front Headlight Silver |
$2,714.26 |
|
|
| 4 | M-65164700 | Headlight Washer Pump |
$77.41 |
|
|
| 5 | M-65511700 | Headlight Washer Pump Gasket |
$5.08 |
|
|
| 6 | M-80554300 | Cpl Headlight Washers Union |
$125.24 |
|
|
| 7 | M-80056810 | Rh Headlight Washers System |
$162.45 |
|
|
| 8 | M-80056710 | Lh Headlight Washer System C |
$171.76 |
|
|
| 9 | M-980145141 | Headlight Washer System Line |
$136.71 |
|
|
| 10 | M-980145142 | Cpl Rh Telesc. Headlight Was |
$178.77 |
|
|
| 11 | M-980145143 | Cpl Lh Telesc. Headlight Was |
$184.51 |
|
|
| 12 | M-13541724 | Stud |
$2.40 |
|
|
| 13 | M-13046114 | Nut For Shield Connection |
$1.68 |
|
|
| 14 | M-16286524 | Screw. |
$2.40 |
|
|
| 15 | M-12647124 | Washer |
$2.15 |
|
|
| 16 | M-10441590 | Bracket With Sheath |
$1.10 |
|
|
| 17 | M-80056400 | R.H.Bracket |
$27.38 |
|
|
| 18 | M-900028015 | Xenon Light D1S 35W |
$199.07 |
|
|
| 19 | M-16084401 | A/Mt/Tbfnic Screw 5X20 Ab |
$2.04 |
|
|
| 20 | M-14641891 | Rivet |
$1.70 |
|
