Diagram image not available

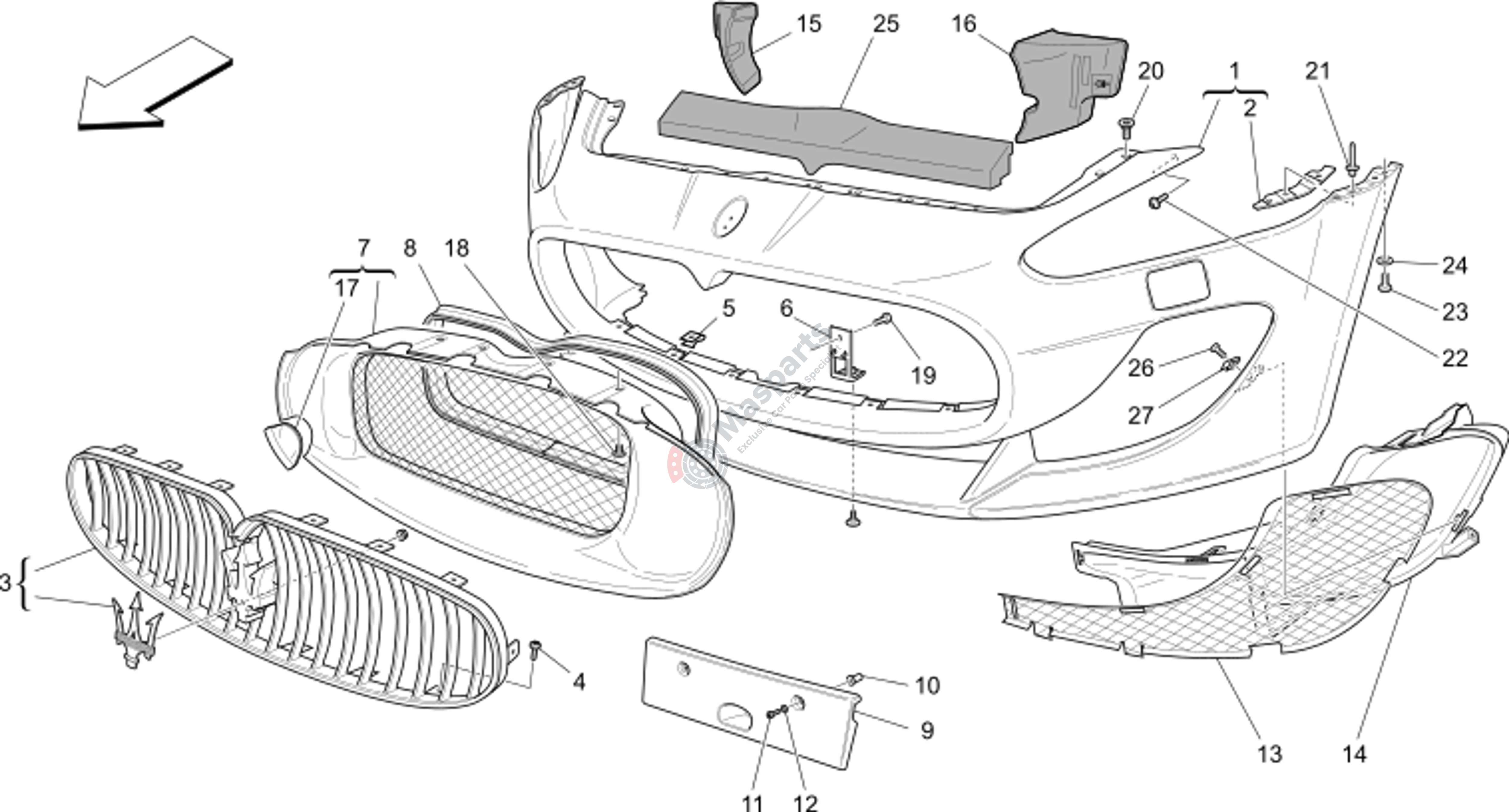

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-980145369 | Cpl Front Bumper |
$2,364.43 |
|
|
| 2 | M-80252400 | Front Rh Edge Bracket |
$136.07 |
|
|
| 3 | M-85110700 | Complete Front Grill |
$664.41 |
|
|
| 4 | M-83093600 | Screw M5 |
$8.08 |
|
|
| 5 | M-67278400 | Bracket. |
$1.72 |
|
|
| 6 | M-83534900 | Front Bumper Supp.Bracket |
$50.37 |
|
|
| 7 | M-80059700 | Air Conveyor |
$363.40 |
|
|
| 8 | M-80059800 | Gasket |
$184.97 |
|
|
| 9 | M-83755200 | Front Number Plate Holder |
$48.51 |
|
|
| 10 | M-66412700 | Bush |
$3.07 |
|
|
| 11 | M-13274377 | Screw |
$2.09 |
|
|
| 12 | M-12637807 | Washer For Upper Windshie |
$1.36 |
|
|
| 13 | M-83534800 | Rh Side Grilltrofeo |
$152.02 |
|
|
| 14 | M-83615500 | Fr.Rh Brake Air Duct |
$69.70 |
|
|
| 17 | M-80791400 | Towing Hook Cap On Conv. |
$42.84 |
|
|
| 18 | M-51810310 | Screw. |
$3.72 |
|
|
| 19 | M-16286024 | Screw. |
$2.29 |
|
|
| 20 | M-51810310 | Screw. |
$3.72 |
|
|
| 21 | M-14642791 | Rivet Tt D 4.8X12 |
$5.04 |
|
|
| 22 | M-69089100 | Screw |
$2.46 |
|
|
| 23 | M-10902524 | Screw |
$1.72 |
|
|
| 24 | M-12643724 | Washer For Bracket On Hea |
$1.36 |
|
|
| 25 | M-80055900 | Upper Central Absorber |
$101.16 |
|
|
| 26 | M-297883 | Screw |
$3.93 |
|
|
| 27 | M-14372171 | Bracket. |
$1.12 |
|
