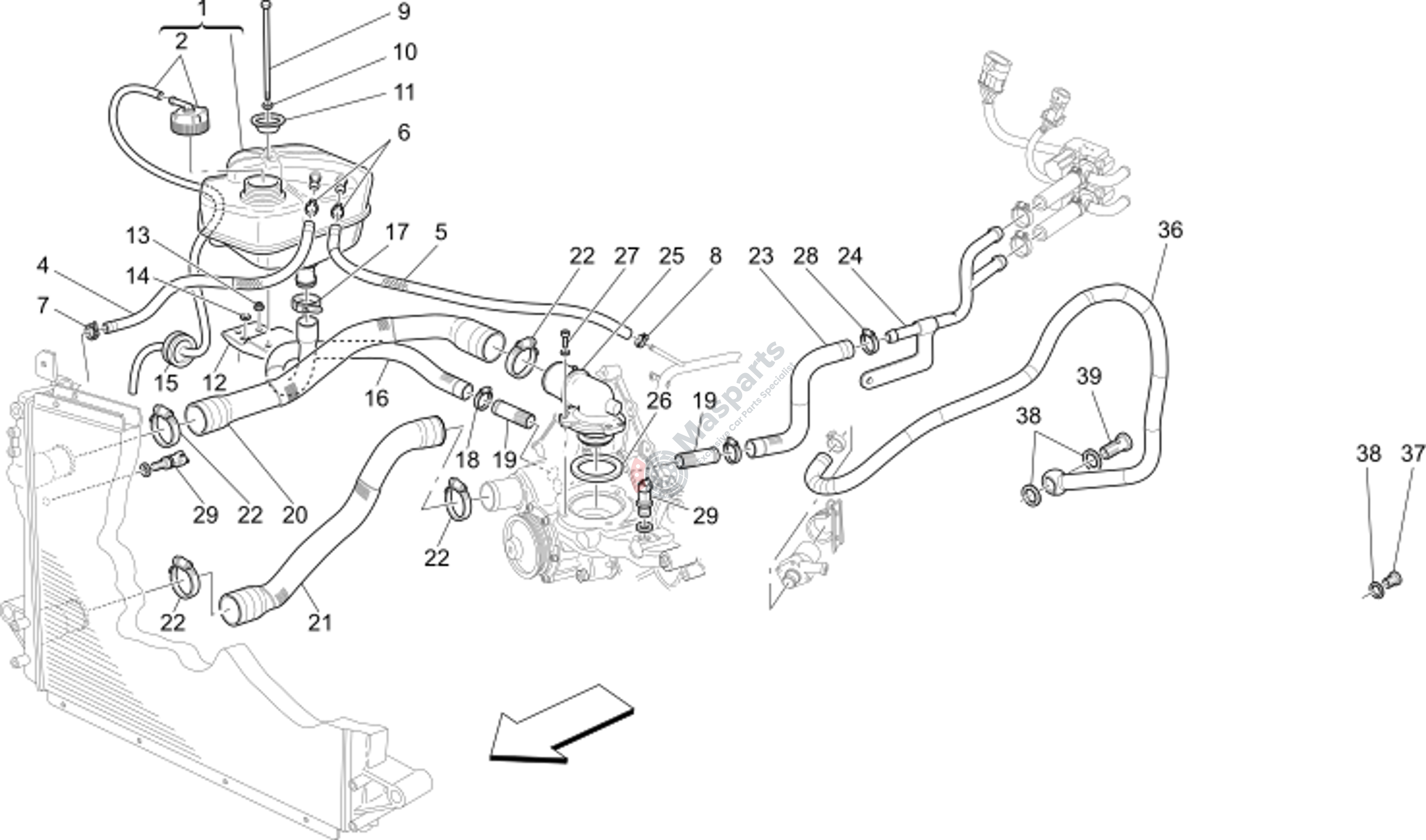

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-296547 | Complete Expansion Tank |
$64.26 |
|
|
| 2 | M-980145477 | Cap For Coolant Tank +C Type |
$18.89 |
|
|
| 4 | M-230562 | Vent Pipe From Expansion Tan |
$23.58 |
|
|
| 5 | M-241141 | Vent Pipe |
$33.75 |
|
|
| 6 | M-13125470 | Collar |
$1.67 |
|
|
| 7 | M-13000190 | Screw Collar |
$1.09 |
|
|
| 8 | M-13000390 | Screw Collar |
$1.75 |
|
|
| 9 | M-60607472 | Screw |
$7.46 |
|
|
| 10 | M-12601274 | Washer |
$1.35 |
|
|
| 11 | M-82404496 | Cup |
$2.99 |
|
|
| 12 | M-228422 | Bracket |
$12.01 |
|
|
| 13 | M-14065921 | Nut |
$1.48 |
|
|
| 14 | M-12646634 | Washer |
$2.86 |
|
|
| 15 | M-228047 | Chock |
$6.79 |
|
|
| 16 | M-227136 | Pipe From Expansion Tank To |
$61.03 |
|
|
| 17 | M-13000590 | Screw Collar |
$3.62 |
|
|
| 18 | M-13000190 | Screw Collar |
$1.09 |
|
|
| 19 | M-228438 | Threaded Union M20X15 |
$6.00 |
|
|
| 20 | M-237593 | Delivery Pipe From Engine To |
$67.33 |
|
|
| 21 | M-237594 | Return Pipe From Radiator To |
$76.35 |
|
|
| 22 | M-13000790 | Screw Collar |
$1.67 |
|
|
| 23 | M-69418200 | Rubber Hose To Pump |
$69.63 |
|
|
| 24 | M-69417100 | Rigid Pipe |
$353.70 |
|
|
| 25 | M-230890 | Thermostat Cover With Press. |
$120.73 |
|
|
| 26 | M-137873 | Gasket Betw. Thermostat And |
$9.14 |
|
|
| 27 | M-14433124 | Screw For Cam Cover Assem |
$1.67 |
|
|
| 28 | M-13097090 | Elastic Collar |
$3.57 |
|
|
| 29 | M-180137 | Water Temperature Sensor |
$38.57 |
|
|
| 36 | M-260465 | Water Pipe From Cylinder Hea |
$457.61 |
|
|
| 37 | M-280597 | Threaded Plug |
$13.21 |
|
|
| 38 | M-10259960 | Gasket 18- 24X 1 |
$1.10 |
|
|
| 39 | M-203787 | Filler Neck M18X1.5 |
$24.06 |
|
