Diagram image not available

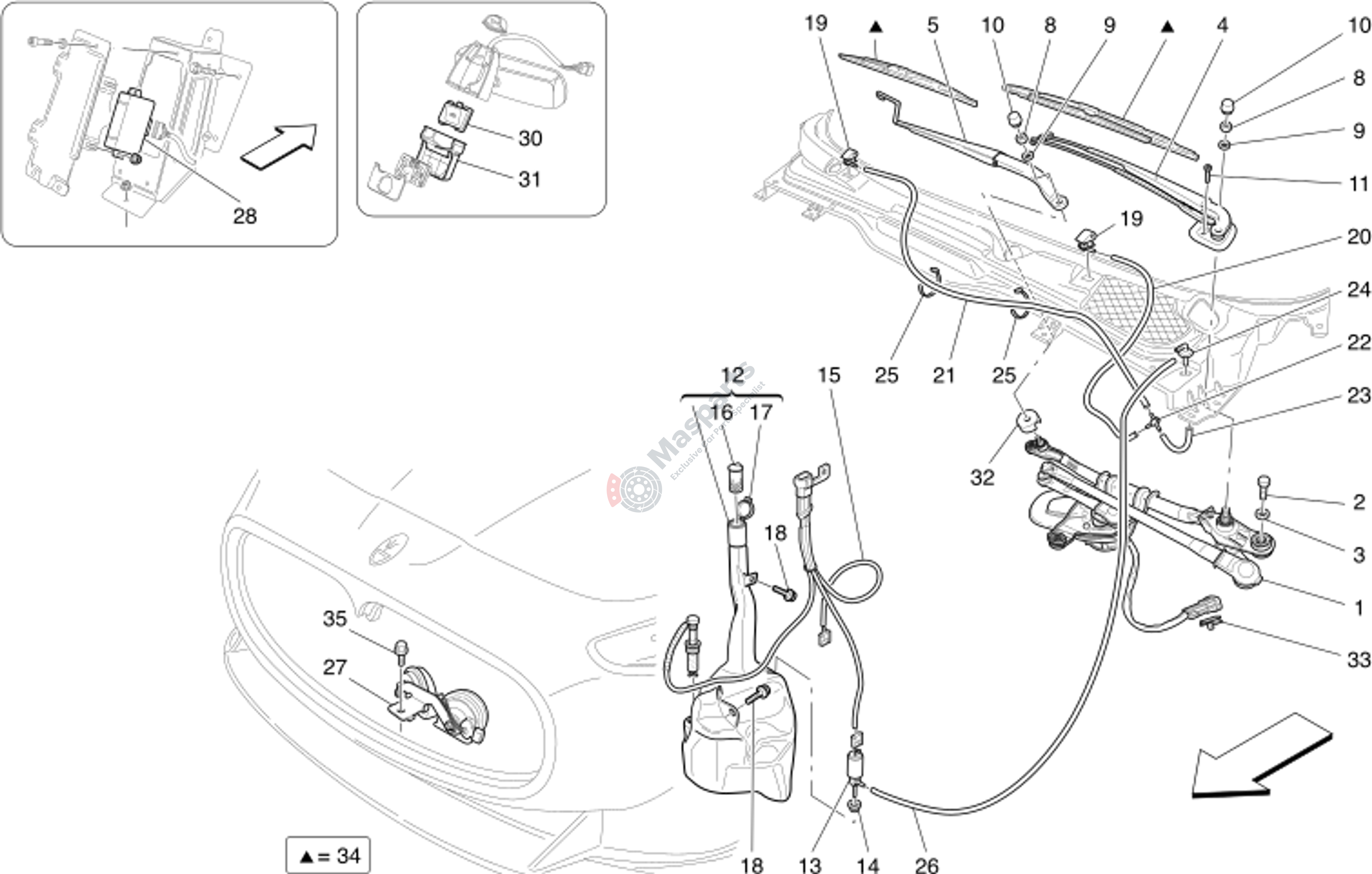

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-80065800 | Complete Windshield Wiper Se |
$642.64 |
|
|
| 2 | M-16050626 | Screw. |
$1.67 |
|
|
| 3 | M-12648901 | Washer |
$2.15 |
|
|
| 4 | M-80355900 | Pilot Side Windshield Wiper |
$170.02 |
|
|
| 5 | M-80065900 | Passenger Side Windshield Wi |
$116.53 |
|
|
| 8 | M-10791014 | Nut |
$1.67 |
|
|
| 9 | M-12601474 | Washer |
$1.33 |
|
|
| 10 | M-15811787 | Protection Boot. |
$1.69 |
|
|
| 11 | M-67929800 | Screw. |
$5.58 |
|
|
| 12 | M-980145001 | Windscreen Washer Tank |
$324.75 |
|
|
| 13 | M-65358700 | Windscreen Washer Pump |
$41.32 |
|
|
| 14 | M-65775100 | Pump Fitting Gasket |
$14.93 |
|
|
| 15 | M-188214 | Electric Wiring With Level S |
$78.34 |
|
|
| 16 | M-66645100 | Fluid Topping-Up Filter |
$11.56 |
|
|
| 17 | M-80341600 | Short Cap 467579930 |
$16.20 |
|
|
| 18 | M-11617324 | Screw. |
$2.87 |
|
|
| 19 | M-67876200 | Spray Nozzlegen.182 Am 77678 |
$40.82 |
|
|
| 20 | M-68647400 | Pipe D.8Mm L=90 From Nozzle |
$21.09 |
|
|
| 21 | M-80065600 | Pipe D.8 Mm L810 From Nozzle |
$28.09 |
|
|
| 22 | M-65581900 | 3-Way Check Valve |
$9.33 |
|
|
| 23 | M-80065700 | Pipe D.8 Mm L810 From Valve |
$23.81 |
|
|
| 24 | M-67984700 | Lys-Fusion Union 06961.00 |
$10.50 |
|
|
| 25 | M-67579900 | Clip. |
$1.09 |
|
|
| 26 | M-81454800 | Epdm Pipe L=2290+30-0 |
$27.02 |
|
|
| 27 | M-232196 | Electro-Magnetic Horn With B |
$85.49 |
|
|
| 28 | M-253903 | Windshield Wiper Control Uni |
$243.98 |
|
|
| 30 | M-60684944 | Control Station For Rain And |
$189.41 |
|
|
| 31 | M-67882000 | Fog-Sensor Housing |
$17.99 |
|
|
| 32 | M-80583500 | Gasket |
$18.31 |
|
|
| 34 | M-980145731 | Lhd Wiper Set |
$107.88 |
|
|
| 35 | M-11617324 | Screw. |
$2.87 |
|
