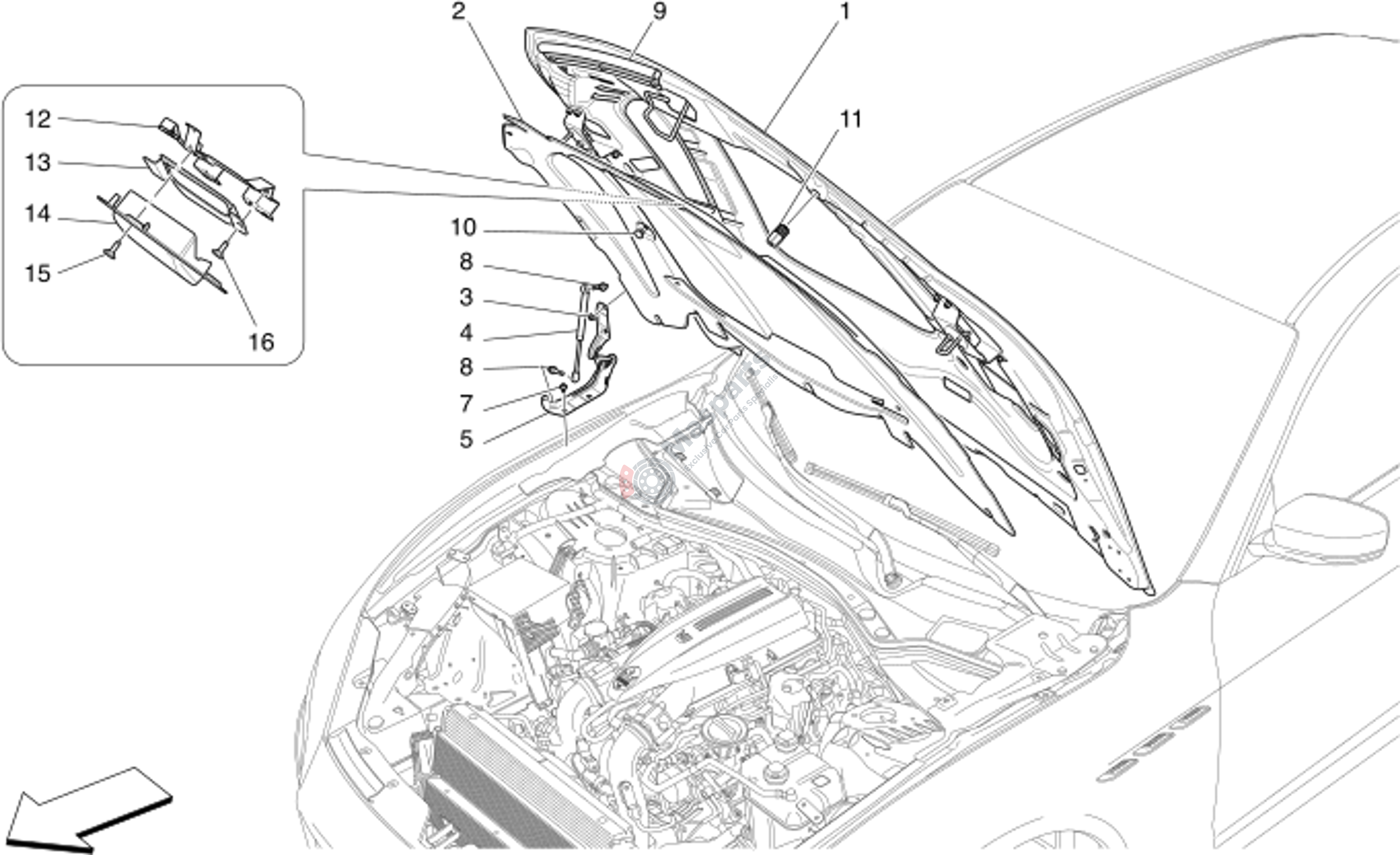

Diagram image not available
The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-673011250 | Front Hood |
€1.945,04 |
|
|
| 2 | M-670155113 | Front Hood Bonnet Lining |
€237,15 |
|
|
| 3 | M-675000092 | Nut |
€1,08 |
|
|
| 4 | M-670008872 | Gas Spring |
€23,21 |
|
|
| 5 | M-670001872 | Front Lid Rh Hinge |
€173,88 |
|
|
| 7 | M-675000131 | Screw |
€2,05 |
|
|
| 9 | M-670004429 | Gasket |
€13,06 |
|
|
| 10 | M-675000073 | Clip |
€0,84 |
|
|
| 11 | M-675000410 | Lh Rawplug |
€5,52 |
|
|
| 12 | M-670155111 | Bracket |
€21,99 |
|
|
| 14 | M-670156486 | Air Discharge Bezel Rh |
€25,30 |
|
|
| 15 | M-670181255 | Screw |
€17,66 |
|
|
| 16 | M-670179010 | Screw |
€2,09 |
|
