Diagram image not available

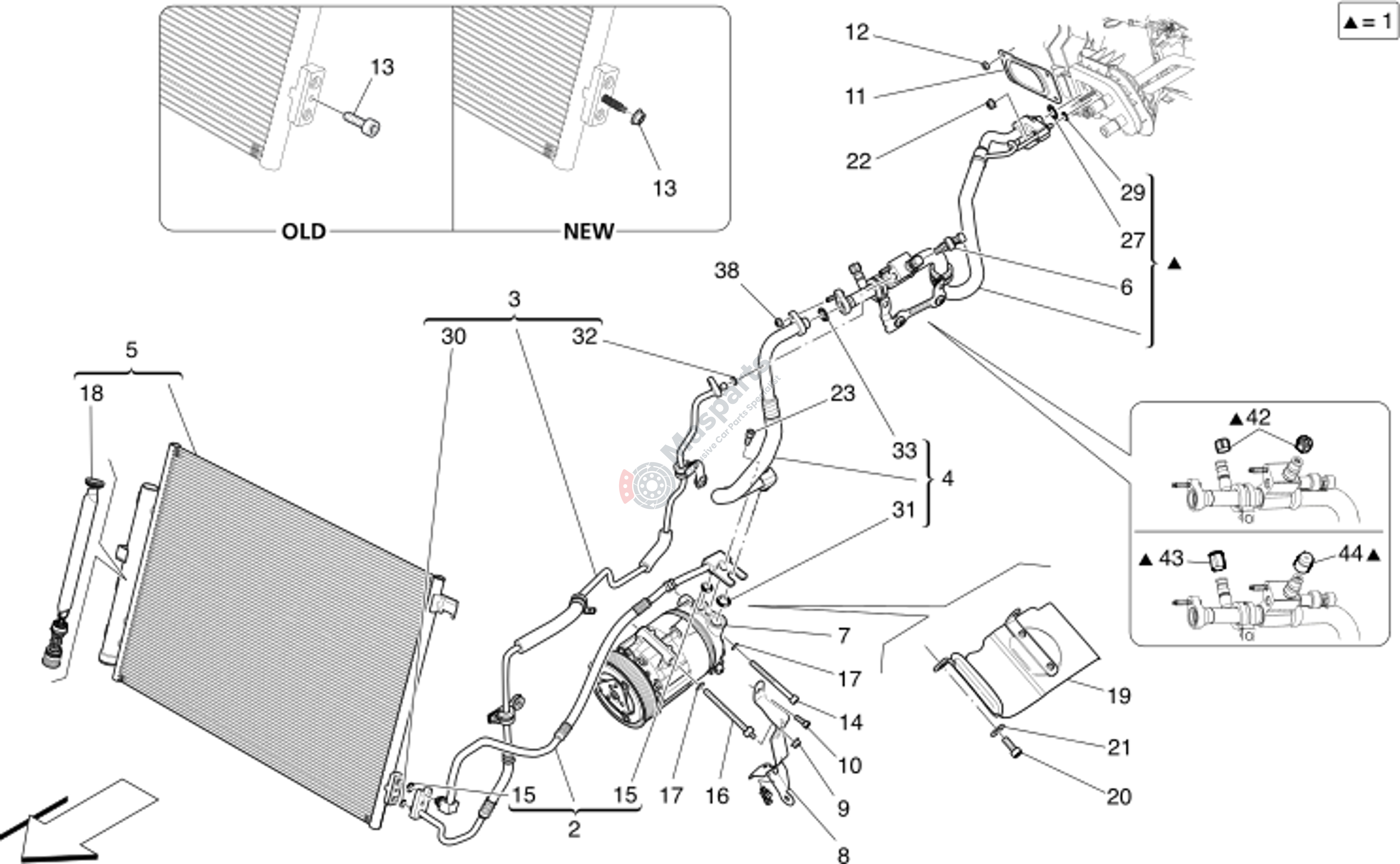

The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 1 | M-670007954 | Pipe From Evaporator To Unio |
€85,85 |
|
|
| 2 | M-670001939 | Flexible Pipe |
€81,09 |
|
|
| 3 | M-670176551 | Pipe |
€96,90 |
|
|
| 4 | M-670007952 | Flex Pipe From Compressor To |
€112,20 |
|
|
| 5 | M-670296020 | Ac Condenser |
€686,80 |
|
|
| 6 | M-670038668 | Pressostat |
€51,60 |
|
|
| 7 | M-954109 | Ac Compressor V8 |
€1.299,65 |
|
|
| 8 | M-288682 | Bracket |
€38,73 |
|
|
| 9 | M-14059211 | Nut |
€1,25 |
|
|
| 10 | M-675000314 | Screw |
€1,17 |
|
|
| 11 | M-670005087 | Plug |
€16,01 |
|
|
| 12 | M-675000315 | Nut |
€1,51 |
|
|
| 13 | M-675000456 | Screw |
€3,99 |
|
|
| 14 | M-14307224 | Screw |
€3,34 |
|
|
| 15 | M-675000122 | O-Ring 1/2 - 1234Yf |
€6,62 |
|
|
| 16 | M-286687 | Column |
€28,52 |
|
|
| 17 | M-11193874 | Washer |
€1,15 |
|
|
| 18 | M-673000010 | Dehydrator Filter |
€203,15 |
|
|
| 22 | M-675000328 | Nut |
€1,17 |
|
|
| 23 | M-675000249 | Screw |
€1,20 |
|
|
| 27 | M-675000123 | O-Ring 3/4 - 1234Yf |
€6,99 |
|
|
| 29 | M-675000121 | O-Ring 3/8 - 1234Yf |
€5,24 |
|
|
| 30 | M-675000121 | O-Ring 3/8 - 1234Yf |
€5,24 |
|
|
| 31 | M-675000123 | O-Ring 3/4 - 1234Yf |
€6,99 |
|
|
| 32 | M-675000119 | O-Ring 68X187 |
€1,67 |
|
|
| 33 | M-675000306 | O-Ring 136X243 |
€1,63 |
|
|
| 38 | M-675000315 | Nut |
€1,51 |
|
|
| 42 | M-673009426 | Gas Cap |
€24,38 |
|
