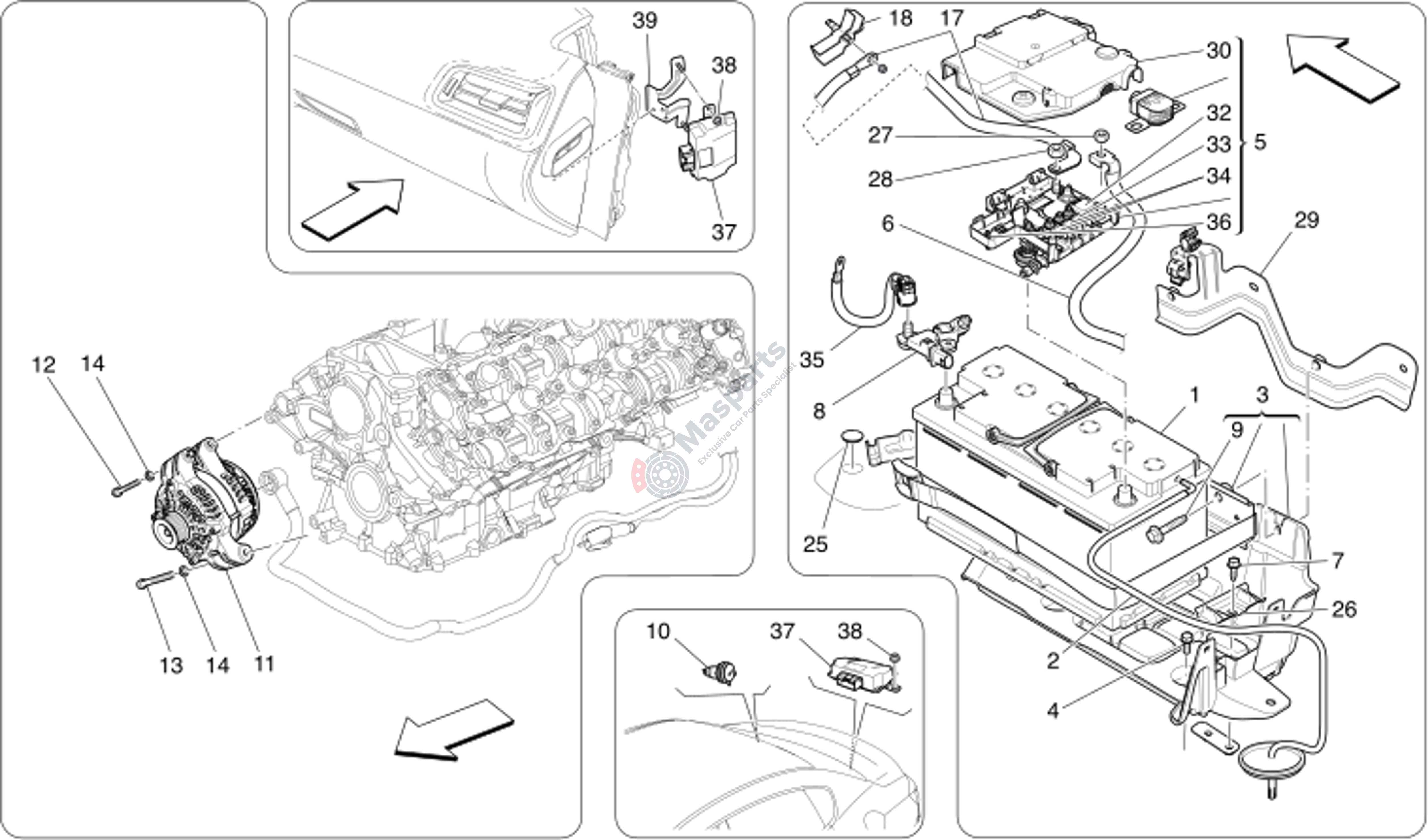

Diagram image not available
The parts list is available below.
Be aware: Two same spot numbers are selected, for example left and right.
| # | S | Part nr | Description | Price | Add |
|---|---|---|---|---|---|
| 2 | M-670008109 | Hose |
$20.38 |
|
|
| 3 | M-675000297 | Cpl Battery Rack |
$84.26 |
|
|
| 4 | M-675000174 | Screw |
$1.68 |
|
|
| 5 | M-670105054 | Battery Multi-Function Ecu |
$149.50 |
|
|
| 6 | M-670006554 | Battery Positive Cable |
$30.67 |
|
|
| 7 | M-675000088 | Screw |
$2.65 |
|
|
| 8 | M-670175602 | Temperature Sensor |
$119.93 |
|
|
| 9 | M-675000214 | Screw |
$25.29 |
|
|
| 11 | M-303188 | Alternator |
$1,044.67 |
|
|
| 12 | M-286690 | Column |
$30.98 |
|
|
| 13 | M-14359524 | Screw |
$3.81 |
|
|
| 14 | M-11193874 | Washer |
$1.36 |
|
|
| 17 | M-670037066 | Battery Positive Pole Cable |
$323.11 |
|
|
| 18 | M-675000578 | Connector |
$23.95 |
|
|
| 25 | M-675000244 | Plug |
$0.99 |
|
|
| 26 | M-675000426 | Battery Bracket |
$6.58 |
|
|
| 27 | M-675000439 | Nut |
$3.72 |
|
|
| 28 | M-675000450 | Nut |
$4.57 |
|
|
| 29 | M-670031002 | Battery Compartment Bracket |
$28.60 |
|
|
| 30 | M-675000806 | Fuse Ecu Cover |
$13.56 |
|
|
| 32 | M-673002762 | 175A Mega-Fuse (Battery Ctr. |
$7.83 |
|
|
| 33 | M-673002763 | 30A Midi-Fuse (Battery Ctr. |
$3.41 |
|
|
| 34 | M-673002764 | 40A Midi-Fuse (Battery Ctr. |
$3.28 |
|
|
| 35 | M-670109171 | Battery Negative Pole Cable |
$35.78 |
|
|
| 36 | M-673003650 | Fuse-Puller |
$1.73 |
|
|
| 37 | M-675000786 | Voltage Stabilizer |
$224.78 |
|
|
| 38 | M-675000095 | Nut |
$0.78 |
|
|
| 39 | M-675000786 | Voltage Stabilizer |
$224.78 |
|
